SilergyDatasheet (PDF)

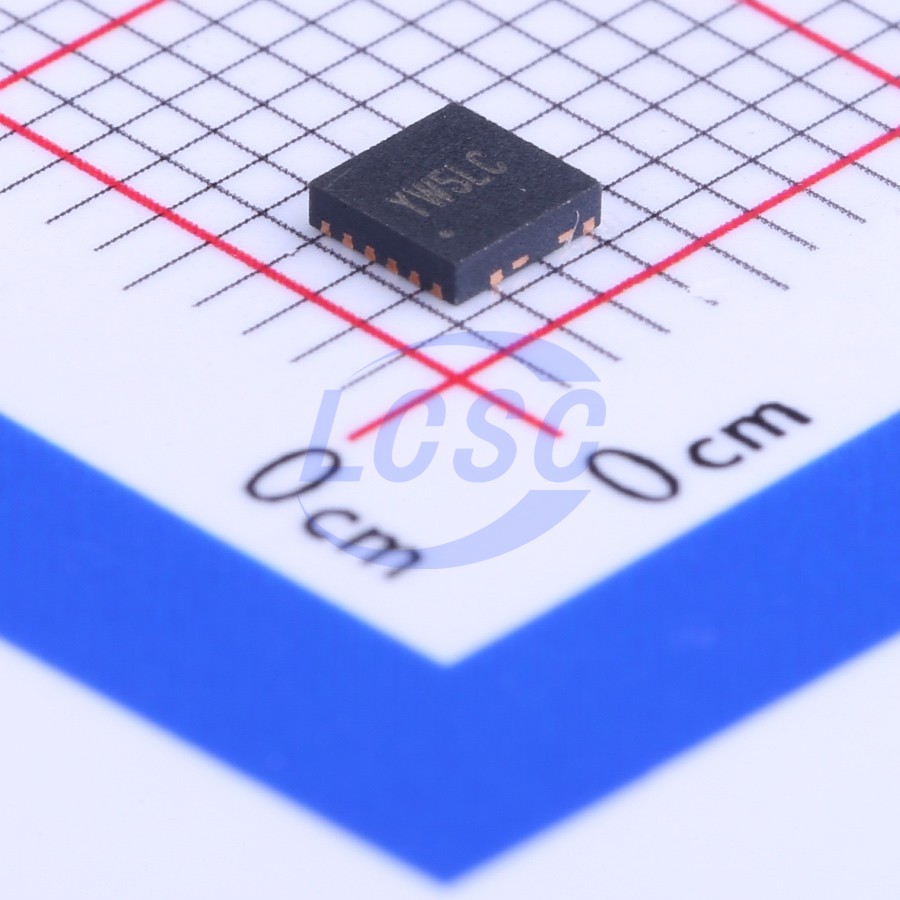

SY8368QNC
800kHz Step-down type Adjustable 8A QFN-10(3x3) Voltage Regulators - DC DC Switching Regulators
QFN-10(3x3)RoHSActive
High Efficiency Synchronous Step-Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8368QNC
- Store part #
- C125897
- Package / case
- QFN-10(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,089 in stock
#C125897
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹209.18 | ₹209.18 |
| 10+ | ₹171.25 | ₹1,712.50 |
| 30+ | ₹150.47 | ₹4,514.10 |
| 100+ | ₹127.00 | ₹12,700.00 |
| 500+ | ₹116.51 | ₹58,255.00 |
| 1,000+ | ₹111.82 | ₹1,11,820.00 |
1 × ₹209.18
₹209.18
excl. GST
₹246.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SY8368QNC
₹209.18 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 800kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Protection latch;Output discharge;Operating status indication;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~28V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 8A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.068 g
Overview
The SY8368 develops a high efficiency synchronous step-down DC-DC regulator capable of delivering 8A continuous, 16A peak current. The SY8368 operates over a wide input voltage range from 4V to 28V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY8368 adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 800kHz under continuous conduction mode to minimize the size of inductor and capacitor.
Applications
- LCD-TV/Net-TV/3DTV
- Set Top Box
- Notebook High Power AP
Key features
- Low RDS(ON) for internal switches (top/bottom): 20/10 mΩ
- Wide input voltage range: 4 - 28V
- Instant PWM architecture to achieve fast transient responses
- Internal 400uS softstart limits the inrush current
- Pseudo-constant frequency: 800kHz
- 8A continuous/16A peak output current capability
- ± 1.5% 0.6V reference
- Programmable peak current limit
- Power good indicator
- Output discharge function
- Short circuit latch off protection
- Over voltage latch off protection
- Over temperature protection
- RoHS Compliant and Halogen Free
- Compact package: QFN3x3 - 10
