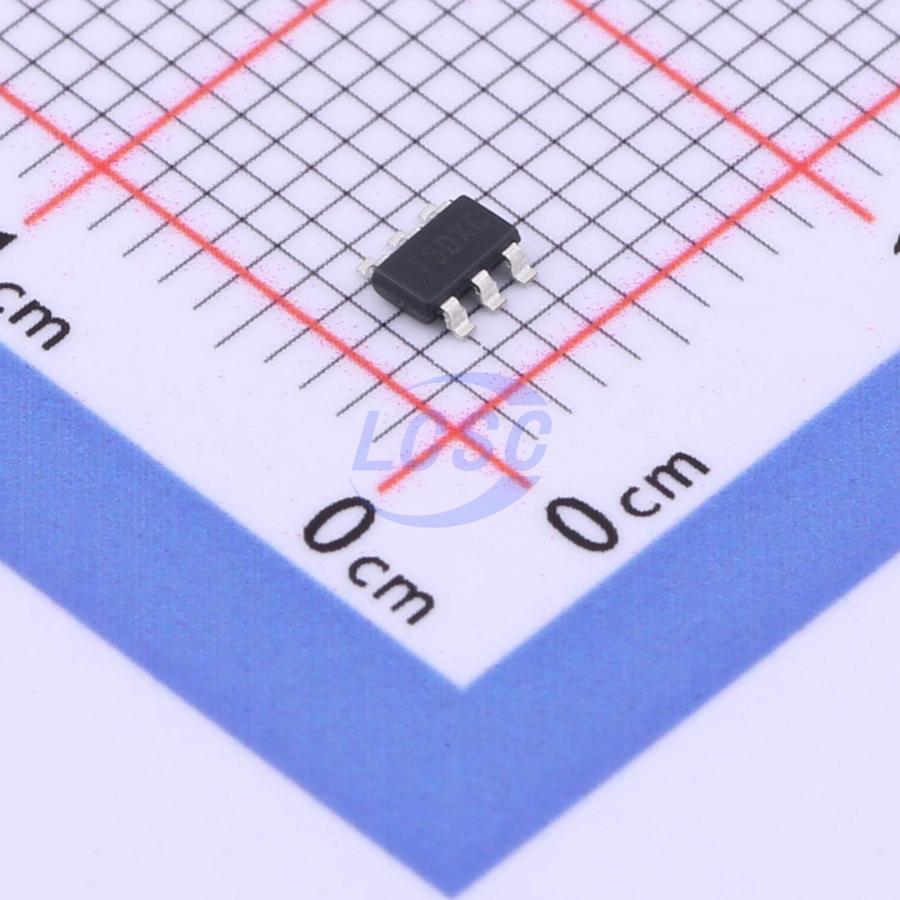

SY8511BADC
Step-down type 200kHz Adjustable 1.2A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators
TSOT-23-6RoHSActive
High Efficiency, 200kHz, 100V Input, 1.2A Asynchronous StepDown Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8511BADC
- Store part #
- C4944084
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,215 in stock
#C4944084
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.44 | ₹88.44 |
| 10+ | ₹72.14 | ₹721.40 |
| 30+ | ₹63.89 | ₹1,916.70 |
| 100+ | ₹55.84 | ₹5,584.00 |
| 500+ | ₹48.90 | ₹24,450.00 |
| 1,000+ | ₹46.29 | ₹46,290.00 |
1 × ₹88.44
₹88.44
excl. GST
₹104.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8511BADC
₹88.44 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 200kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 4.5V~100V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 150uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The SY8511B is a high efficiency, current mode adaptive constant OFF time controlled asynchronous step-down DC/DC converter capable of delivering 1.2A output current. The SY8511B operates over a wide input voltage range from 4.5V to 100V and integrates main switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor sizes are achieved at 200kHz switching frequency.
Applications
- Non-isolated Telecommunication Buck Regulator
- Secondary High Voltage Post Regulator Automotive Systems
- Electric Bicycle
Key features
- Low RDS(ON) for Internal N-channel Power FET: 1Ω
- 4.5 - 100V Input Voltage Range
- 1.2A Output Current Capability
- 200kHz Pseudo Constant Switching Frequency
- Internal Soft-start Limits the Inrush Current
- Hic-cup Mode Output Short Circuit Protection
- EN ON/OFF Control with Accurate Threshold
- Cycle-by-cycle Peak Current Limit
- 0.6V ± 1% Reference Voltage
- RoHS Compliant and Halogen Free
- TSOT23 - 6 Package
