SilergyDatasheet (PDF)

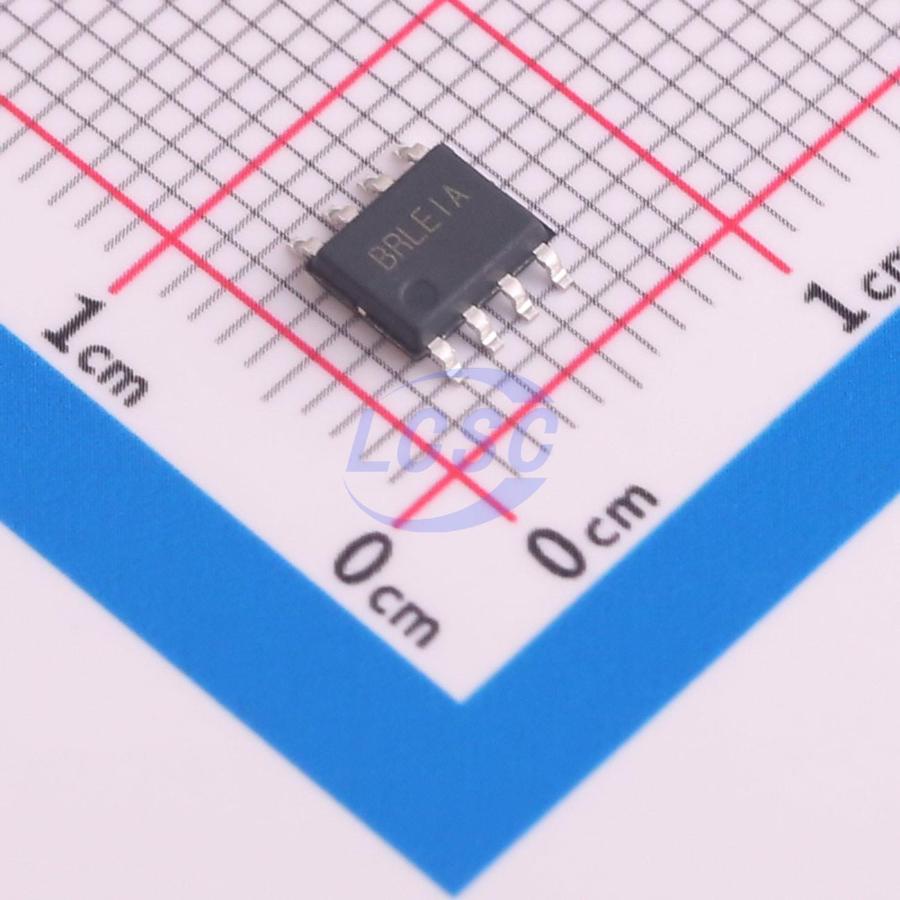

SY8746AFCC
Step-down type 350kHz 36V SO-8E Voltage Regulators - DC DC Switching Regulators
SO-8ERoHSActive
High Efficiency 60V, 0.8A, 350kHz Constant Current Step-down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8746AFCC
- Store part #
- C7435937
- Package / case
- SO-8E
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,643 in stock
#C7435937
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.41 | ₹43.41 |
| 10+ | ₹42.39 | ₹423.90 |
| 30+ | ₹41.57 | ₹1,247.10 |
| 100+ | ₹40.96 | ₹4,096.00 |
1 × ₹43.41
₹43.41
excl. GST
₹51.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SY8746AFCC
₹43.41 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 350kHz
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Adjustable soft-start
- Topology
- Buck
- Operating Voltage
- 12V~60V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 36V
- Quiescent Current
- 800uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
SY8746A is a high efficiency, 12V - 60V wide input voltage range DC/DC regulator targeting at LED lighting applications. The device integrates the low RDS(ON) MOSFET and internal compensation. Along with the small SO8E package, the device achieves an extremely small solution size for LED driver design. SY8746A also supports PWM dimming and Analog dimming function.
Applications
- PAR Lamp
- Tube Lamp
- Bulb
Key features
- Low RDS(ON) for Internal Switches: 680mΩ
- Input Range: 12V - 60V
- 350kHz Switching Frequency
- 1.2A MOSFET Peak Current Limitation
- Analog/PWM Dimming Available
- Lower than 0.5% Deep Dimming Level
- Adjustable Thermal Foldback Temperature
- Dimming Resistor to Adjust Output Full Load
- Compact Package: SO8E
