SilergyDatasheet (PDF)

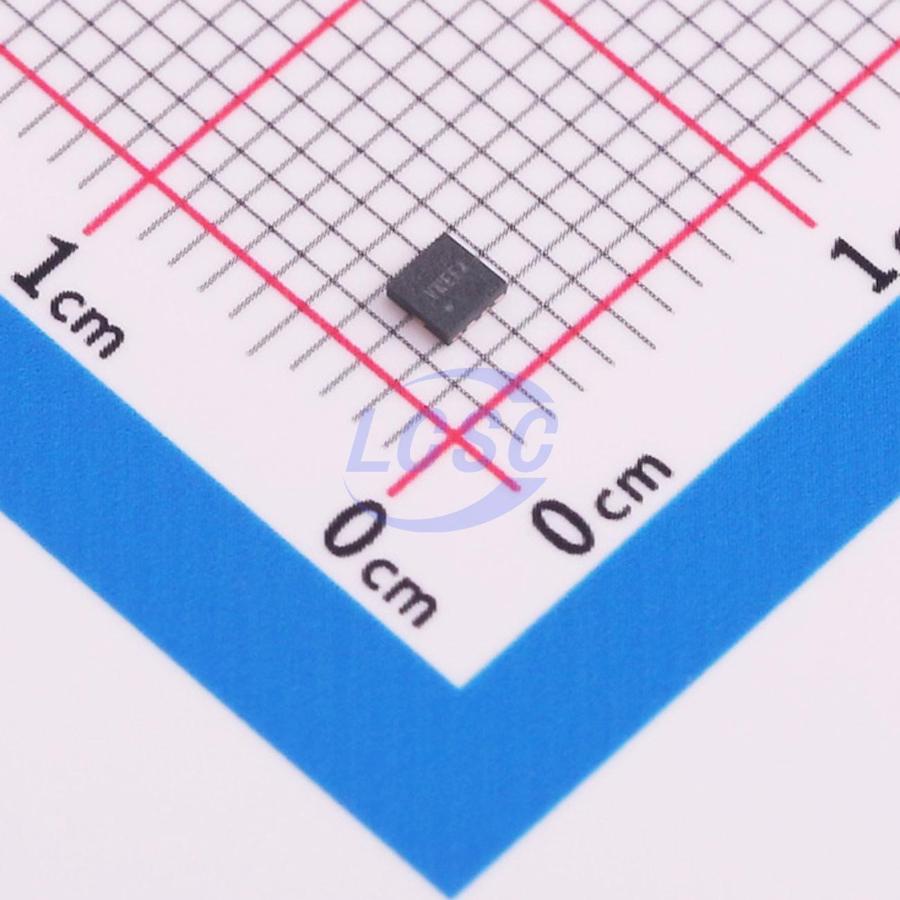

SY8816DFC
Step-down type 1.2MHz Adjustable 6A DFN-8(2x2) Voltage Regulators - DC DC Switching Regulators
DFN-8(2x2)RoHSActive
High Efficiency 6V, 6A, 1.2MHz Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8816DFC
- Store part #
- C5440878
- Package / case
- DFN-8(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,804 in stock
#C5440878
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.08 | ₹65.08 |
| 10+ | ₹58.99 | ₹589.90 |
| 30+ | ₹56.37 | ₹1,691.10 |
| 100+ | ₹53.12 | ₹5,312.00 |
| 500+ | ₹51.58 | ₹25,790.00 |
| 1,000+ | ₹50.72 | ₹50,720.00 |
1 × ₹65.08
₹65.08
excl. GST
₹76.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8816DFC
₹65.08 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 1.2MHz
- Number of Outputs
- 1
- Features
- Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.75V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 6A
- Quiescent Current
- 60uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.064 g
Overview
SY8816 is a high efficiency high frequency synchronous step down DC/DC regulator capable of delivering up to 6A output current. It operates over a wide input voltage range from 2.75V to 6V. It integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. High integrated solution and DFN2×2 - 8 package perform the optimized BOM cost and reduce external component part count. Low input and output voltage ripple, small external inductor and capacitor sizes, small PCB layout space are achieved.
Applications
- High Definition Set Top Box
- LCD TV
- Notebook PC
Key features
- Low RDS(ON) for Internal Switches (Top/Bottom): 35/15 mΩ
- 2.75 - 6V Input Voltage Range
- 1.2 MHz Switching Frequency Minimizes the External Components
- Internal Soft - start Limits the Inrush Current
- Up to 94% efficiency
- 6A Continuous Output Current Capability
- Shutdown Mode Draws <0.1 μA Supply Current
- 100% Dropout Operation
- Power Good Indicator
- P/UVLO/OTP Protections
- RoHS Compliant and Halogen Free
- Compact Package: DFN2x2 - 8
