SilergyDatasheet (PDF)

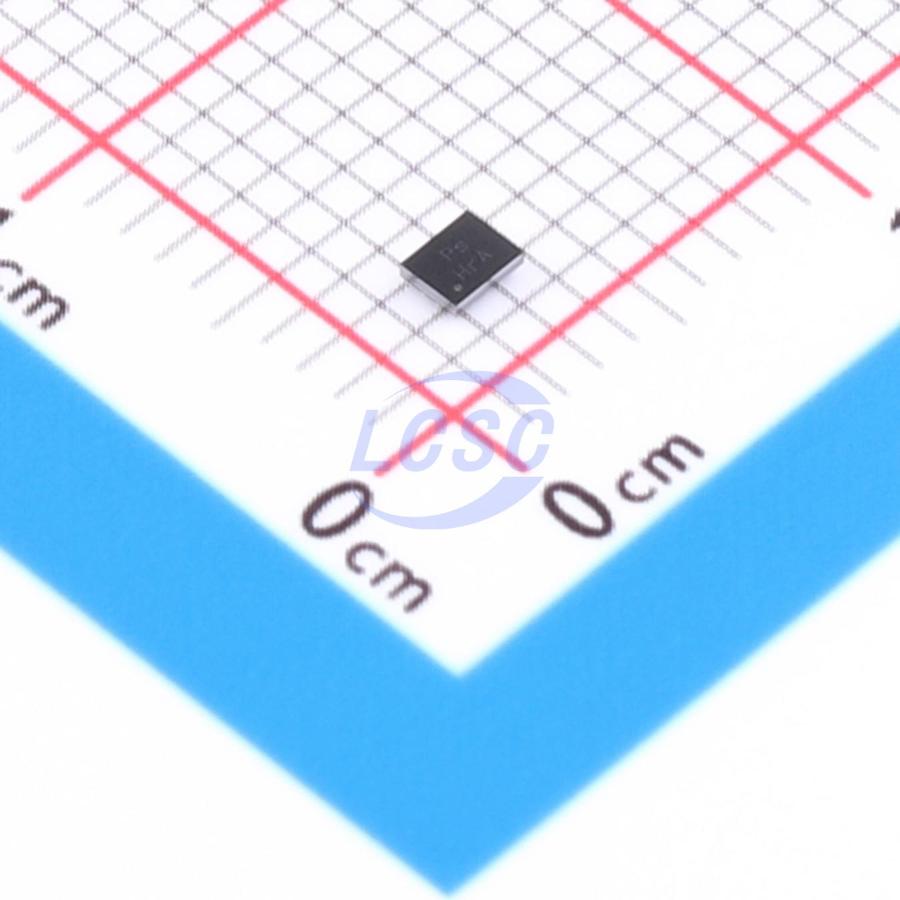

SY8827KPKC
2.4MHz Step-down type Adjustable 6A 712.5mV~1.5V CSP-20(1.6x2) Voltage Regulators - DC DC Switching Regulators
CSP-20(1.6x2)RoHSActive
- Manufacturer
- Silergy
- Manufacturer part #
- SY8827KPKC
- Store part #
- C22452072
- Package / case
- CSP-20(1.6x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C22452072
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.16 | ₹78.16 |
| 10+ | ₹63.32 | ₹633.20 |
| 30+ | ₹55.80 | ₹1,674.00 |
| 100+ | ₹48.49 | ₹4,849.00 |
| 500+ | ₹44.10 | ₹22,050.00 |
| 1,000+ | ₹41.79 | ₹41,790.00 |
1 × ₹78.16
₹78.16
excl. GST
₹92.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8827KPKC
₹78.16 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 2.4MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Output discharge;Dynamic voltage scaling;Light load efficient mode;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.6V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 6A
- Output Voltage
- 712.5mV~1.5V
- Quiescent Current
- 75uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
SY8827K is a high-efficiency 2.4MHz synchronous step-down DC/DC regulator IC capable of delivering up to 6A output current. It operates over a wide input voltage range of 2.6V to 5.5V and integrates both main and synchronous switches with ultra-low on-resistance RDS(ON) to minimize conduction losses. The output voltage is programmable from 0.7125V to 1.5V via the I²C interface. The SY8827K comes in a space-saving, low-profile CSP1.56x1.96-20 package.
Applications
- Smartphones
- Network tablets
Key features
- Input voltage range: 2.6V to 5.5V
- 2.4MHz switching frequency minimizes external components
- Typical quiescent current 75μA
- Low on-resistance RDS(ON) of internal switches (PFET/NFET): 28mΩ/17mΩ
- Programmable output voltage: 0.7125V to 1.5V in 12.5mV steps
- 6A continuous output current capability
- Compatible with 0.25μH inductor and 22μF ceramic capacitor
- Hiccup mode protection for hard short-circuit conditions
- RoHS compliant and halogen-free
- Compact package: CSP1.56x1.96 - 20
