SilergyDatasheet (PDF)

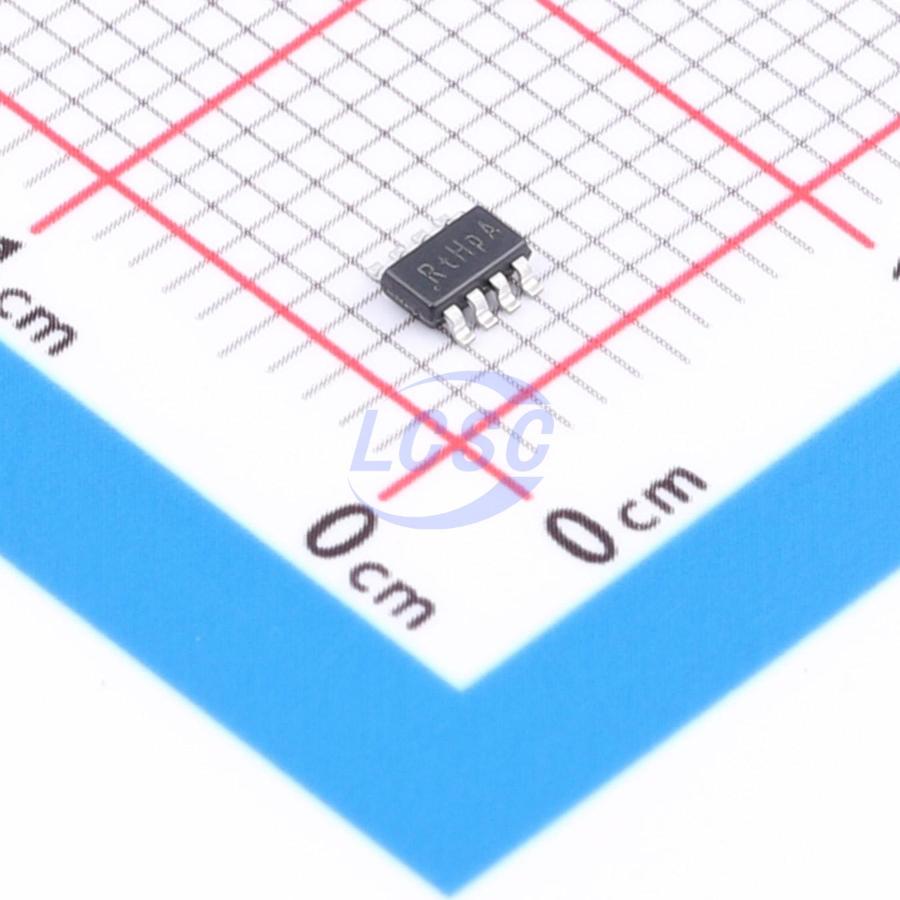

SY8832AIC
Step-down type 2MHz Adjustable 2A SOT-23-8 Voltage Regulators - DC DC Switching Regulators
SOT-23-8RoHSActive
- Manufacturer
- Silergy
- Manufacturer part #
- SY8832AIC
- Store part #
- C5250076
- Package / case
- SOT-23-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,508 in stock
#C5250076
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.96 | ₹69.96 |
| 10+ | ₹54.97 | ₹549.70 |
| 30+ | ₹48.45 | ₹1,453.50 |
| 100+ | ₹40.42 | ₹4,042.00 |
| 500+ | ₹36.73 | ₹18,365.00 |
| 1,000+ | ₹34.54 | ₹34,540.00 |
1 × ₹69.96
₹69.96
excl. GST
₹82.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8832AIC
₹69.96 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 2
- Function
- Step-down type
- Frequency - Switching
- 2MHz
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 35uA;45uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The SY8832 is a dual-output, high-efficiency 2MHz synchronous buck DC/DC regulator capable of delivering up to 2A of output current per channel. The SY8832 operates over a wide input voltage range of 2.5V to 5.5V and integrates both a main switch and a synchronous switch with very low RDS(ON) to minimize conduction losses.
Applications
- Solid-state drives
- Mobile phones
- Digital cameras
- Personal digital assistants
- Portable media players
Key features
- Input voltage range: 2.5V to 5.5V
- Switching frequency: 2MHz
- 180° out-of-phase operation
- Output current: 2A per channel
- Low quiescent current: <45μA for both channels
- Low on-resistance of internal switches (PFET/NFET): 125mΩ/100mΩ
- Internal soft-start
- 100% duty cycle operation
- RoHS compliant and halogen-free
- Compact package: TSOT23-8
