SilergyDatasheet (PDF)

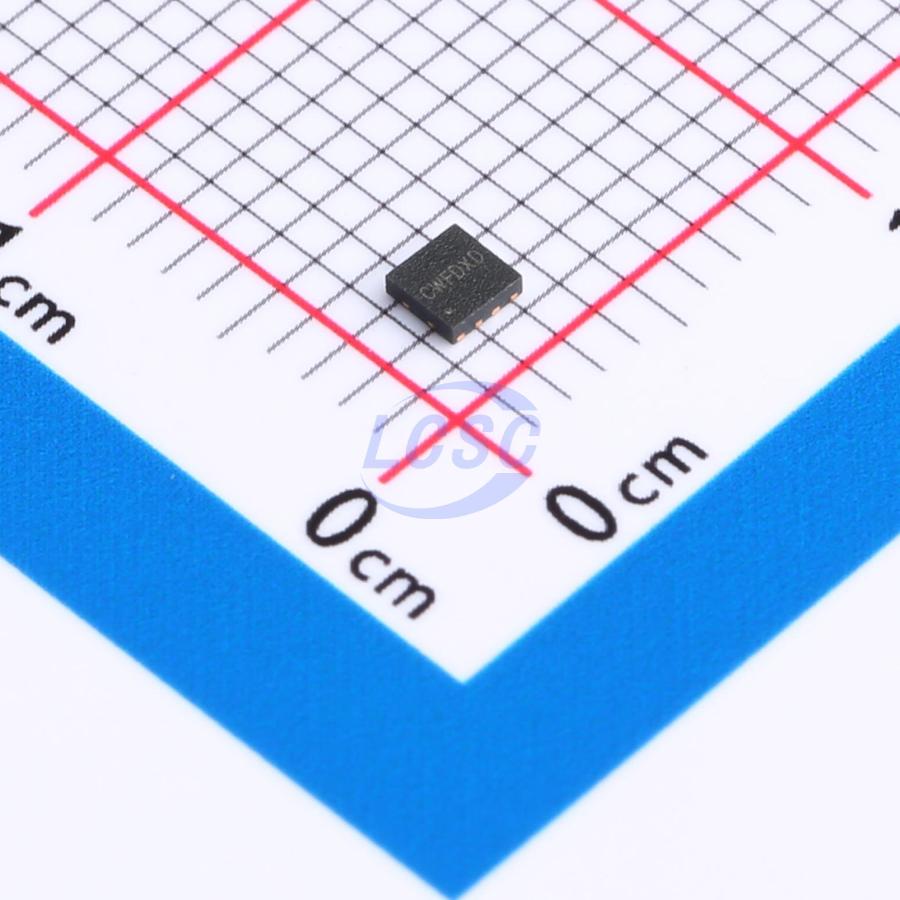

SY8883DFC
1MHz Step-down type Adjustable 3A WDFN-8-EP(2x2) Voltage Regulators - DC DC Switching Regulators
WDFN-8-EP(2x2)RoHSActive
High Efficiency, 1MHz, 3A Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8883DFC
- Store part #
- C3029184
- Package / case
- WDFN-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,090 in stock
#C3029184
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.22 | ₹201.10 |
| 50+ | ₹31.02 | ₹1,551.00 |
| 150+ | ₹27.08 | ₹4,062.00 |
| 500+ | ₹22.16 | ₹11,080.00 |
| 3,000+ | ₹19.96 | ₹59,880.00 |
| 6,000+ | ₹18.65 | ₹1,11,900.00 |
5 × ₹40.22
₹201.10
excl. GST
₹237.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8883DFC
₹201.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA);-40℃~+125℃@(TJ)
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Features
- Protection latch;Operating status indication;Output discharge;Overcurrent Protection
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 55uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.018 g
Overview
The SY8883 is a high efficiency 1MHz synchronous step down DC/DC regulator, which is capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY8883 integrates reliable latch off function when output over voltage, output short or thermal shutdown happens. The low output voltage ripple, the small external inductor and the capacitor sizes are achieved with 1MHz switching frequency.
Applications
- Set Top Box
- USB Dongle
- Media Player
- Smart Phone
Key features
- 2.5V to 5.5V Input Voltage Range
- 55μA Low Quiescent Current
- Low RDS(ON) for Internal Switches (Top/Bottom): 85mΩ / 60mΩ
- High Switching Frequency 1MHz Minimizes the External Components
- Internal Soft-start Limits the Inrush Current
- 100% Dropout Operation
- Power Good Indicator
- Reliable Latch off Function When:
- Output Under Voltage
- Thermal Shutdown
- Output Voltage > 120% of Regulated Voltage
- Output Auto Discharge Function
- RoHS Compliant and Halogen Free
- Compact Package: DFN2×2 - 8
