SilergyDatasheet (PDF)

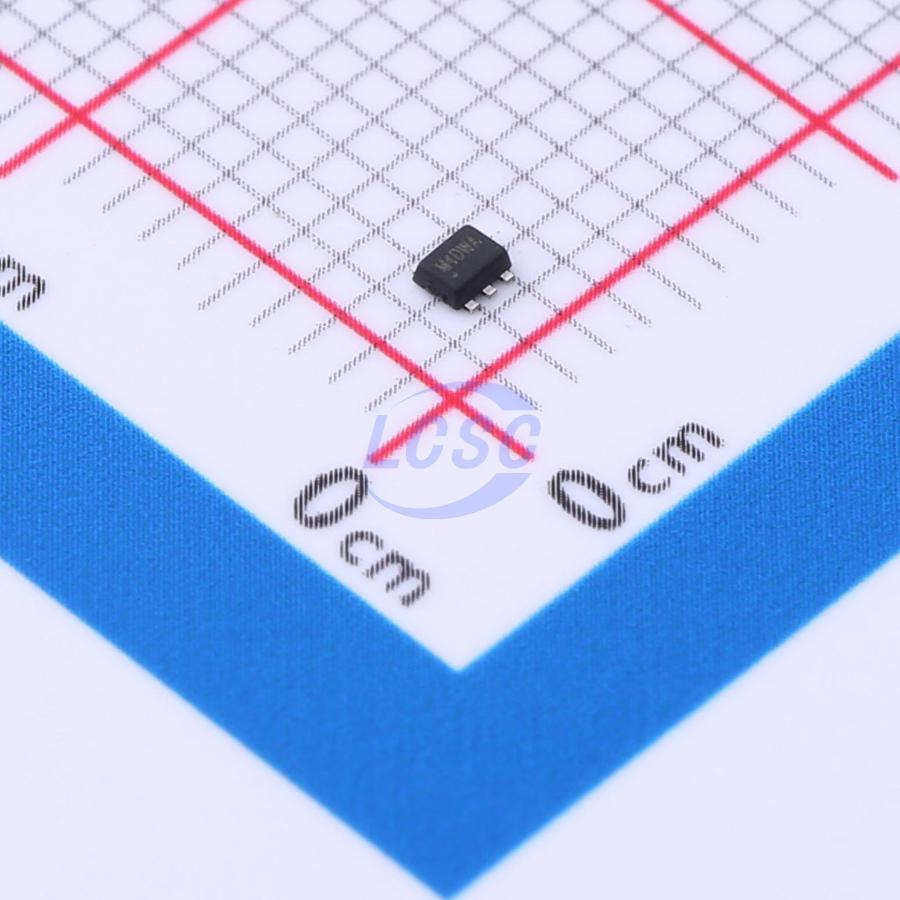

SY8892ARC
Step-down type 1.5MHz Adjustable 2A SOT-563-6 Voltage Regulators - DC DC Switching Regulators
SOT-563-6RoHSActive
High Efficiency, 1.5MHz 2A Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8892ARC
- Store part #
- C3151908
- Package / case
- SOT-563-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,065 in stock
#C3151908
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.06 | ₹91.06 |
| 10+ | ₹72.21 | ₹722.10 |
| 30+ | ₹62.67 | ₹1,880.10 |
| 100+ | ₹53.34 | ₹5,334.00 |
| 500+ | ₹47.71 | ₹23,855.00 |
| 1,000+ | ₹44.89 | ₹44,890.00 |
1 × ₹91.06
₹91.06
excl. GST
₹107.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SY8892ARC
₹91.06 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 1.5MHz
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Output discharge;Operating status indication
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 55uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
The SY8892 is a high efficiency 1.5MHz synchronous step down DC/DC regulator, capable of delivering up to 2A output currents. It can operate over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. The SY8892 is in a space saving, low profile SOT563 package.
Applications
- Set Top Box
- USB Dongle
- Media Player
- Smart Phone
Key features
- 2.5V to 5.5V Input Voltage Range
- 55μA Low Quiescent Current
- Low RDS(ON) for Internal Switches (Top/Bottom): 125mΩ / 75mΩ
- High Switching Frequency 1.5MHz Minimizes the External Components
- Internal Soft-start Limits the Inrush Current
- 100% Dropout Operation
- Power Good Indicator
- Hic-cup for Short Circuit Protection
- Output Auto Discharge Function
- RoHS Compliant and Halogen Free
- Compact Package: SOT563
