SilergyDatasheet (PDF)

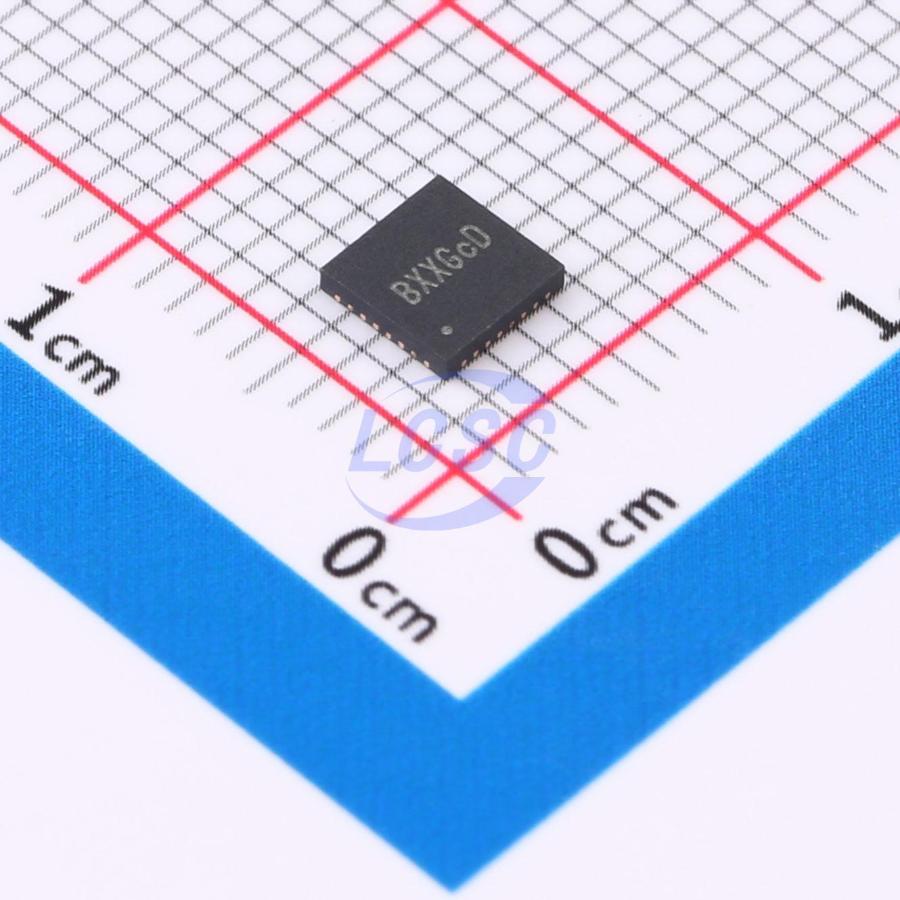

SY9329CQFC
Buck-Boost Switching Regulator IC Adjustable QFN-32(4x4)
QFN-32(4x4)ROHS CompliantActive
High Efficiency, 38V Maximum Input Single Inductor Synchronous Step Up/Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY9329CQFC
- Store part #
- C22456601
- Package / case
- QFN-32(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,097 in stock
#C22456601
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹253.20 | ₹253.20 |
| 10+ | ₹215.64 | ₹2,156.40 |
| 30+ | ₹192.18 | ₹5,765.40 |
| 100+ | ₹168.07 | ₹16,807.00 |
| 500+ | ₹157.23 | ₹78,615.00 |
| 1,000+ | ₹152.45 | ₹1,52,450.00 |
1 × ₹253.20
₹253.20
excl. GST
₹298.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY9329CQFC
₹253.20 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Number of Outputs
- 1
- Function
- Buck-Boost
- Frequency - Switching
- 250kHz;500kHz
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Hiccup current limiting;Built-in LDO regulator;Overcurrent Protection
- Topology
- Buck-Boost
- Output Type
- Adjustable
- Operating Voltage
- 4V~28V
- Switch tube (built-in/external)
- Built-in
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.069 g
Overview
SY9329C is a high-voltage synchronous buck-boost converter. The device operates over a wide input voltage range of 4V to 28V, with a maximum average inductor current capability of 10A. Four integrated low R_DS(ON) switches minimize conduction losses. The SY9329C incorporates comprehensive protection features, including output overcurrent/short-circuit protection, overvoltage protection, and thermal shutdown, ensuring reliable operation. The device is housed in a compact QFN4×4-32 package.
Applications
- Docking stations
- Laptops
- High-end power banks
- Monitors
- In-vehicle chargers
- USB PD
Key features
- 4V to 28V operating input voltage range
- 38V absolute maximum input voltage
- Low on-resistance internal switch: 25 mΩ
- Internal soft-start limits inrush current
- Hiccup mode for output overcurrent, short-circuit, and overvoltage protection
- Thermal shutdown with auto-recovery
- 250kHz/500kHz selectable switching frequency
- 6A/10A selectable average inductor current limit
- 1.0V ±1.5% reference voltage accuracy
- Output current limit programmable via external sense resistor
- Compact package: QFN4×4-32
- UL certificate number: E491480
- Certified to UL 2367
- Certified to IEC/EN62368-1
