Littelfuse

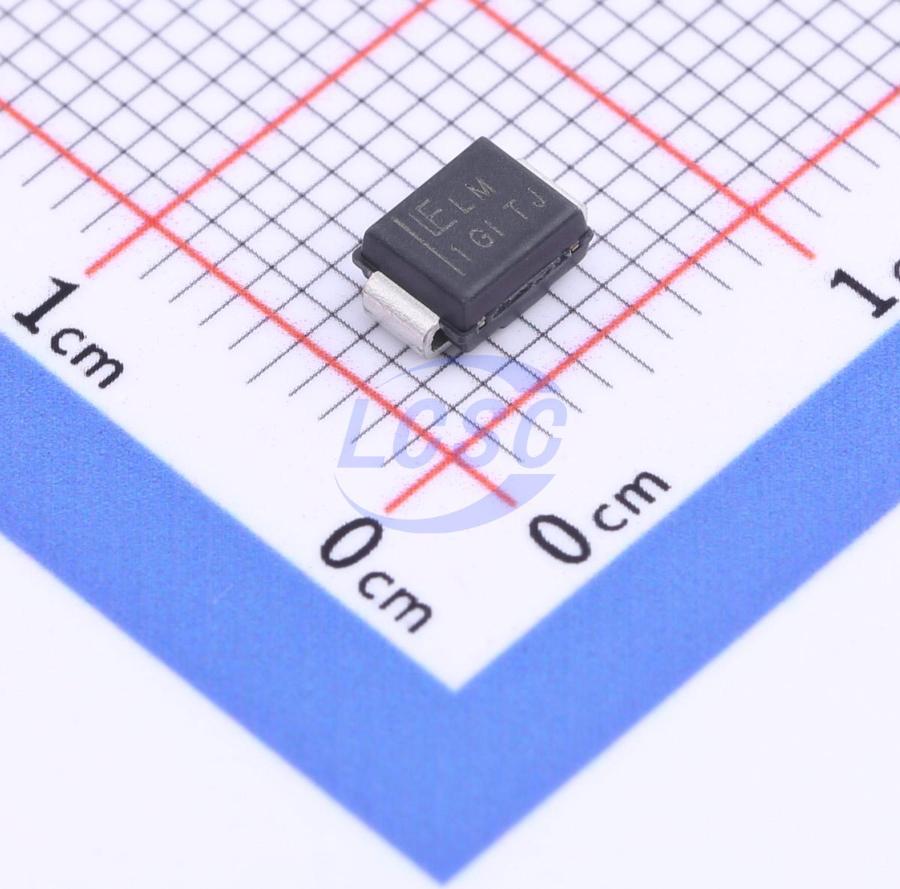

SZ1SMB15AT3G

24.4VC Clamp 24A Ipp TVS DIODE SMB

SMBROHS3 CompliantActive

TVS DIODE 15VWM 24.4VC SMB

Manufacturer: Littelfuse
Manufacturer part #: SZ1SMB15AT3G
Store part #: C1976386
Package / case: SMB
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

195 in stock

#C1976386

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
5+	₹46.23	₹231.15
50+	₹36.70	₹1,835.00
150+	₹32.63	₹4,894.50
500+	₹27.52	₹13,760.00
2,500+	₹25.26	₹63,150.00
5,000+	₹23.89	₹1,19,450.00

Quantity (min 5, multiples of 5)

5 × ₹46.23

₹231.15

excl. GST

₹272.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SZ1SMB15AT3G

₹231.15 for 5 + GST

Specifications

Clamping Voltage: 24.4V
Operating Temperature: -65℃~+150℃
Peak Pulse Current (Ipp): 24A
Peak Pulse Power Dissipation (Ppp): 600W
Number of Channels: 1
Voltage - Breakdown: 18.5V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 5uA
Reverse Stand-Off Voltage (Vrwm): 15V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.75 g
