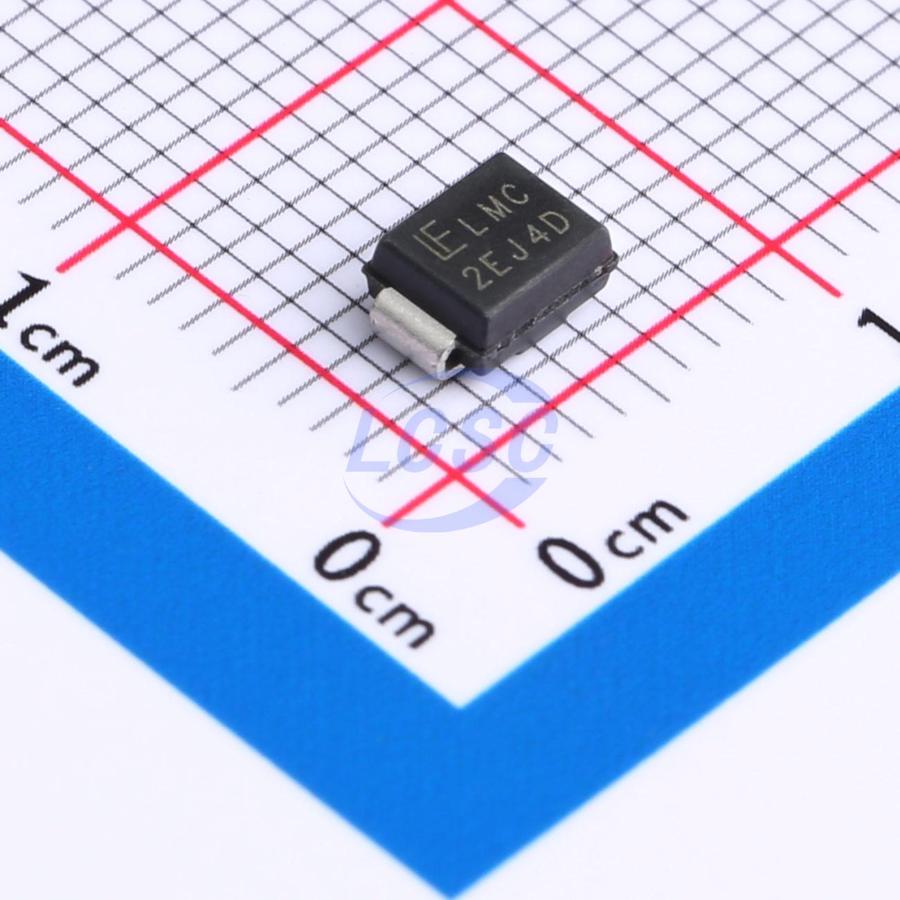

Littelfuse

SZ1SMB15CAT3G

24.4VC Clamp 24A Ipp TVS DIODE SMB

SMBROHS3 CompliantActive

TVS DIODE 15VWM 24.4VC SMB

Manufacturer: Littelfuse
Manufacturer part #: SZ1SMB15CAT3G
Store part #: C1973338
Package / case: SMB
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,075 in stock

#C1973338

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
5+	₹22.03	₹110.15
50+	₹17.41	₹870.50
150+	₹15.44	₹2,316.00
500+	₹12.98	₹6,490.00
2,500+	₹11.88	₹29,700.00
5,000+	₹11.22	₹56,100.00

Quantity (min 5, multiples of 5)

5 × ₹22.03

₹110.15

excl. GST

₹129.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SZ1SMB15CAT3G

₹110.15 for 5 + GST

Specifications

Clamping Voltage: 24.4V
Operating Temperature: -65℃~+150℃
Peak Pulse Current (Ipp): 24A
Peak Pulse Power Dissipation (Ppp): 600W
Number of Channels: 1
Voltage - Breakdown: 17.58V
type: TVS
Reverse Leakage Current (Ir): 5uA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 15V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.11 g
