onsemi

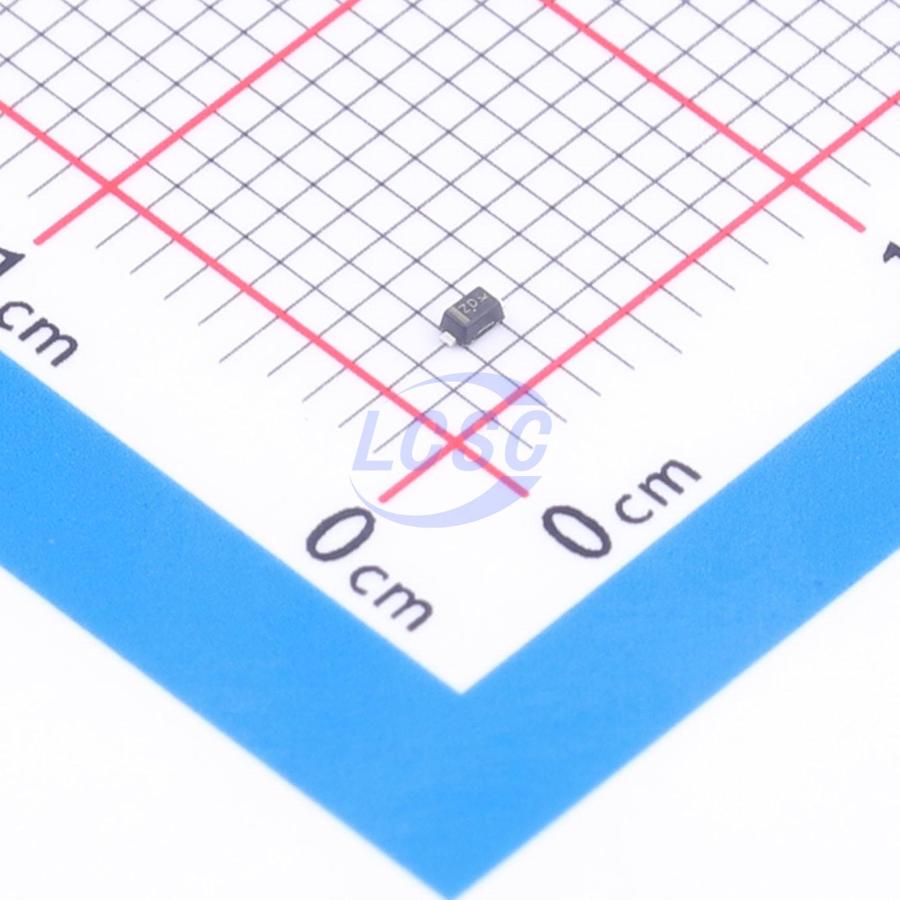

SZESD5Z2.5T5G

10.9VC Clamp 11A@8/20us Ipp TVS DIODE SOD-523

SOD-523ROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: SZESD5Z2.5T5G
Store part #: C896545
Package / case: SOD-523
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

755 in stock

#C896545

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
5+	₹30.12	₹150.60
50+	₹23.83	₹1,191.50
150+	₹21.12	₹3,168.00
500+	₹17.75	₹8,875.00

Quantity (min 5, multiples of 5)

5 × ₹30.12

₹150.60

excl. GST

₹177.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 8,000 per reel

SZESD5Z2.5T5G

₹150.60 for 5 + GST

Specifications

Clamping Voltage: 10.9V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 11A@8/20us
Peak Pulse Power Dissipation (Ppp): 120W
Number of Channels: 1
Voltage - Breakdown: 4V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 6uA
Reverse Stand-Off Voltage (Vrwm): 2.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 8,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.013 g
