HXY MOSFETDatasheet (PDF)

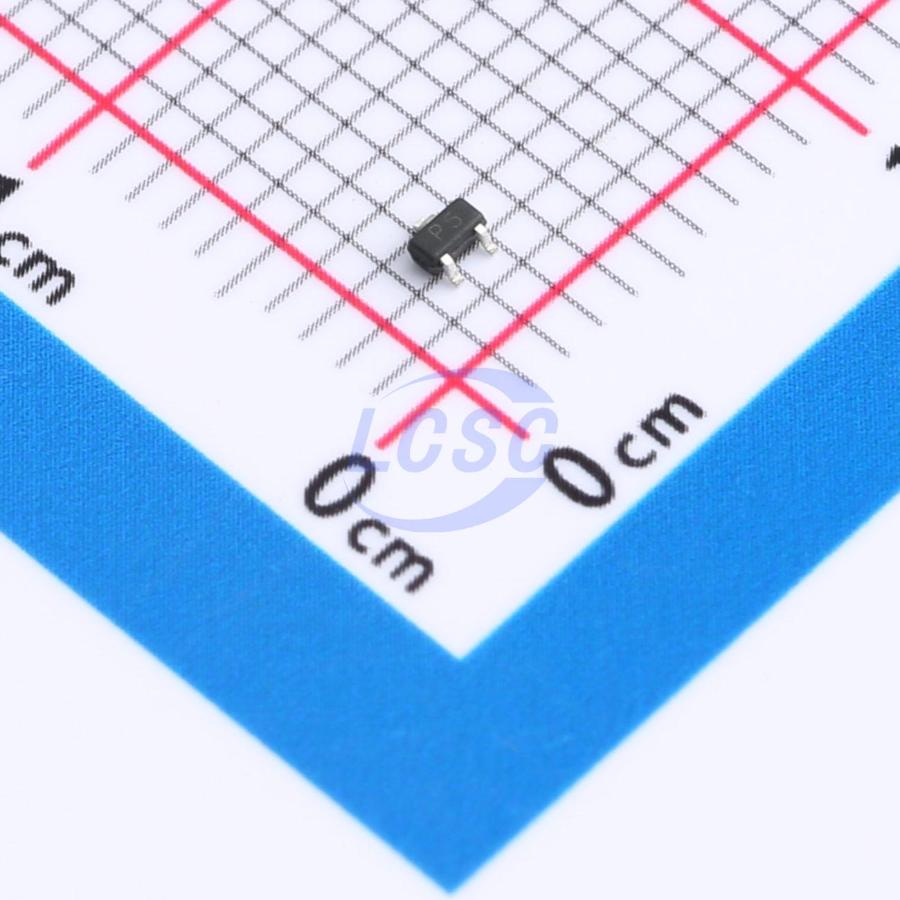

SZESDR0502BT1G-HXY
25VC Clamp 4A@8/20us Ipp ESD DIODE SOT-523
SOT-523RoHSActive
ESD DIODE 5VWM 25VC SOT-523
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SZESDR0502BT1G-HXY
- Store part #
- C42416194
- Package / case
- SOT-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C42416194
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.76 | ₹67.60 |
| 100+ | ₹5.38 | ₹538.00 |
| 300+ | ₹4.70 | ₹1,410.00 |
| 3,000+ | ₹4.18 | ₹12,540.00 |
| 6,000+ | ₹3.77 | ₹22,620.00 |
| 9,000+ | ₹3.56 | ₹32,040.00 |
10 × ₹6.76
₹67.60
excl. GST
₹79.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZESDR0502BT1G-HXY
₹67.60 for 10 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.018 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ESD0502B-HXY#C4748781HXY MOSFET · SOT-523 | HXY MOSFET | SOT-523 | 90 | ₹2.57 · 90 in stock | View |
