onsemi

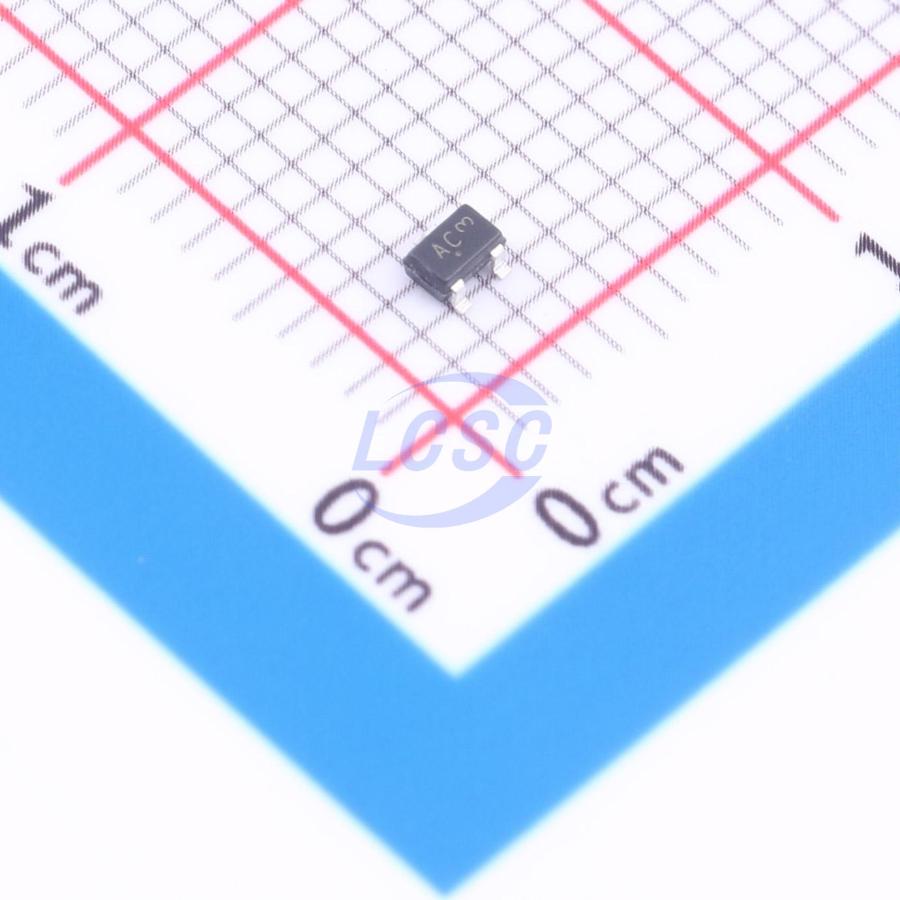

SZMMBZ27VCWT1G

38VC Clamp ESD DIODE SC-70

SC-70ROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: SZMMBZ27VCWT1G
Store part #: C894575
Package / case: SC-70
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C894575

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹42.93	₹42.93
10+	₹42.07	₹420.70
30+	₹41.42	₹1,242.60
100+	₹40.76	₹4,076.00

Quantity (min 1)

1 × ₹42.93

₹42.93

excl. GST

₹50.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SZMMBZ27VCWT1G

₹42.93 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 38V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 1A
Peak Pulse Power Dissipation (Ppp): 40W
Number of Channels: 2
Voltage - Breakdown: 25.65V
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 50nA
Reverse Stand-Off Voltage (Vrwm): 22V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.072 g
