onsemiDatasheet (PDF)

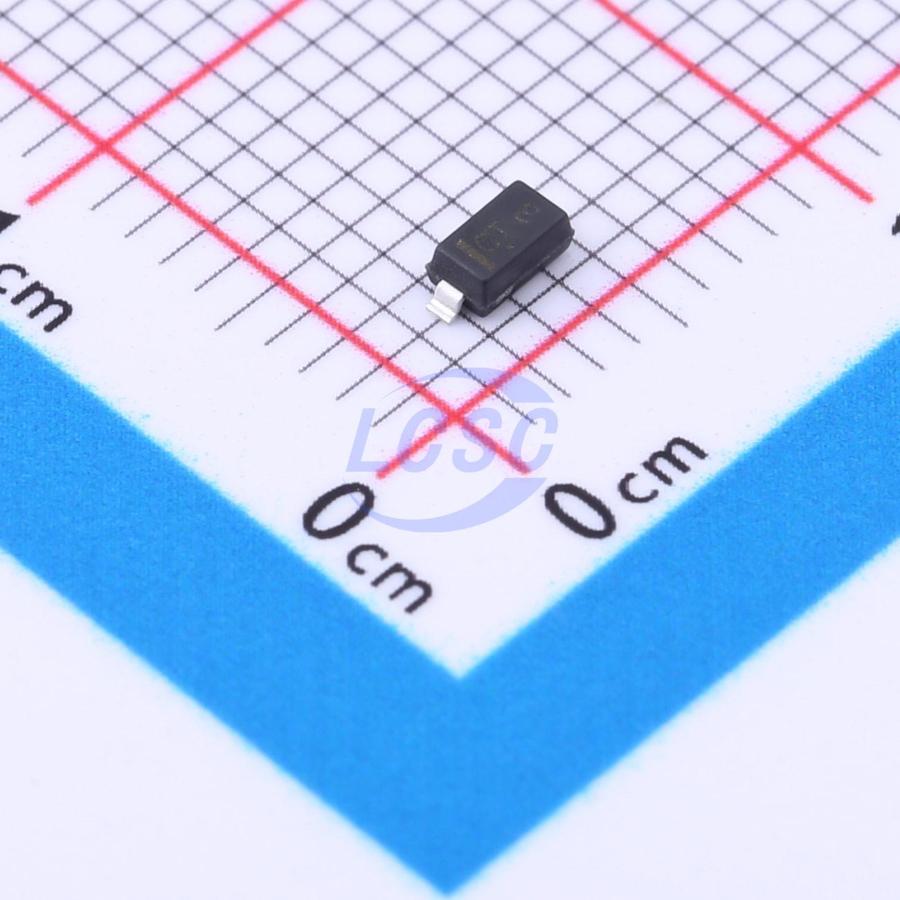

SZMMSZ4688T1G
Zener Diode Independent 4.7V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 4.7V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- SZMMSZ4688T1G
- Store part #
- C236228
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
590 in stock
#C236228
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.25 | ₹92.50 |
| 100+ | ₹7.32 | ₹732.00 |
| 300+ | ₹6.36 | ₹1,908.00 |
| 3,000+ | ₹5.64 | ₹16,920.00 |
| 6,000+ | ₹5.07 | ₹30,420.00 |
| 9,000+ | ₹4.78 | ₹43,020.00 |
10 × ₹9.25
₹92.50
excl. GST
₹109.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMMSZ4688T1G
₹92.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 10uA@3V
- Zener Voltage(Range)
- 4.47V~4.94V
- Zener Voltage(Nom)
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ4688-HE3_A-08#C20564075VISHAY · SOD-123 | VISHAY | SOD-123 | 3,000 | ₹40.93 · 3,000 in stock | View |
 | MMSZ4688#C22395547R+O · SOD-123 | R+O | SOD-123 | 1,640 | ₹2.96 · 1,640 in stock | View |
 | MMSZ4688T1G#C242285onsemi · SOD-123 | onsemi | SOD-123 | 1,730 | ₹6.10 · 1,730 in stock | View |
 | MMSZ4688#C3031876JSCJ · SOD-123 | JSCJ | SOD-123 | 140 | ₹3.56 · 140 in stock | View |
 | MMSZ4688T1G-TP#C46472966TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 50 | ₹2.17 · 50 in stock | View |
