onsemiDatasheet (PDF)

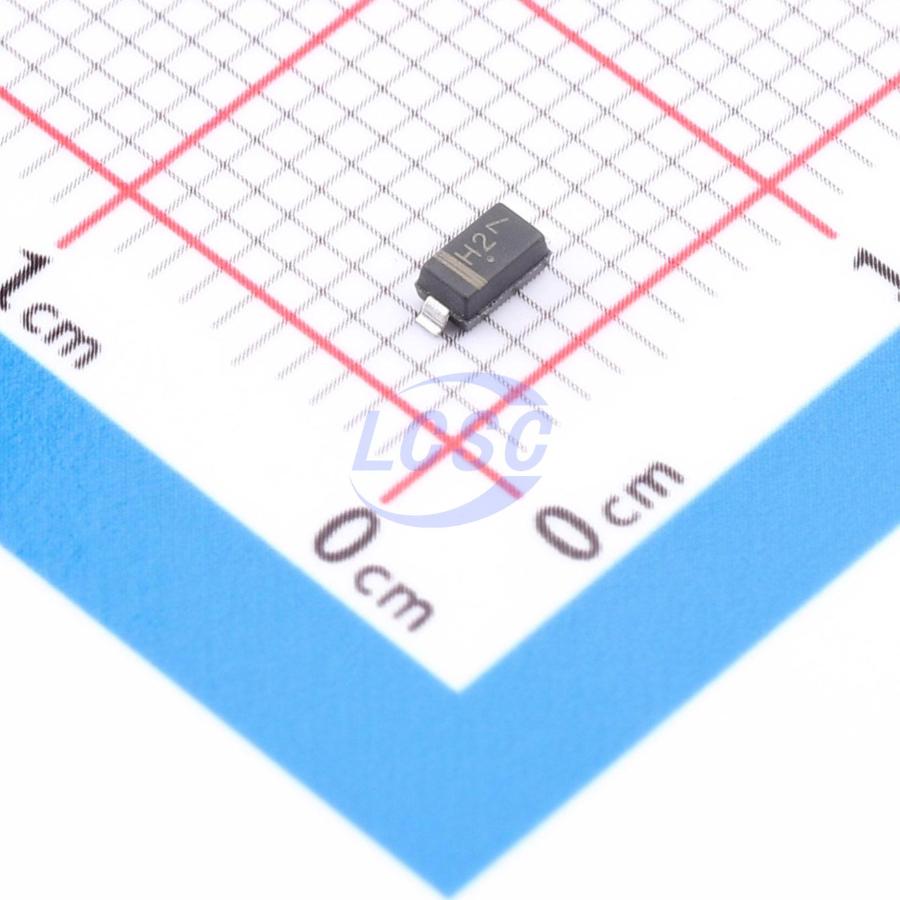

SZMMSZ5242BT3G
1 Independent 11.4V~12.6V 12V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SZMMSZ5242BT3G
- Store part #
- C897003
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
545 in stock
#C897003
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.27 | ₹106.35 |
| 50+ | ₹20.76 | ₹1,038.00 |
| 150+ | ₹20.41 | ₹3,061.50 |
| 500+ | ₹20.08 | ₹10,040.00 |
5 × ₹21.27
₹106.35
excl. GST
₹125.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SZMMSZ5242BT3G
₹106.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 1uA@9.1V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 11.4V~12.6V
- Zener Voltage(Nom)
- 12V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.061 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ12T1G#C72599onsemi · SOD-123 | onsemi | SOD-123 | 4,480 | ₹9.63 · 4,480 in stock | View |
 | SZMMSZ12T3G#C896989onsemi · SOD-123 | onsemi | SOD-123 | 10 | ₹19.36 · 10 in stock | View |
 | SZMMSZ4699T1G#C894653onsemi · SOD-123 | onsemi | SOD-123 | 2,745 | ₹18.31 · 2,745 in stock | View |
 | MMSZ4699T1G#C97772onsemi · SOD-123 | onsemi | SOD-123 | 2,150 | ₹6.35 · 2,150 in stock | View |
 | MMSZ5242BT1G#C82050onsemi · SOD-123 | onsemi | SOD-123 | 52,280 | ₹5.89 · 52,280 in stock | View |
