Allwinner Tech

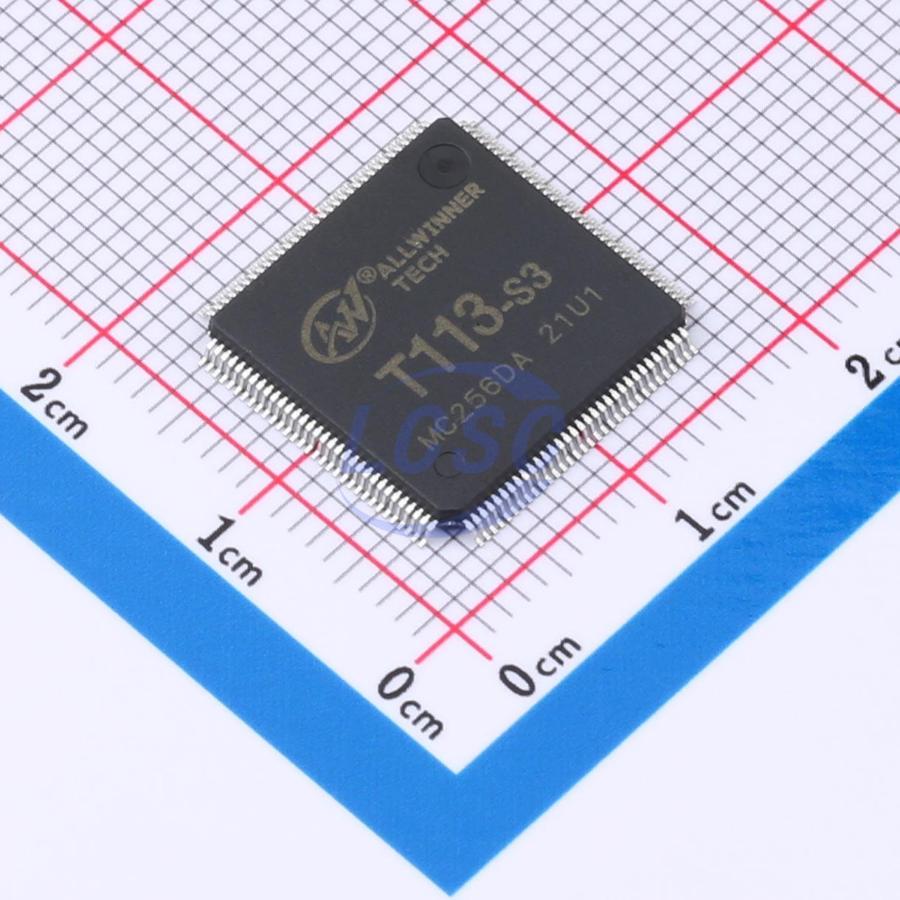

T113-S3

ARM Cortex-A7 32 Bit ELQFP-128 Microcontrollers RoHS

ELQFP-128ROHS CompliantActive

Smart Control and Display Soc for Automotive and Industrial Products

Manufacturer: Allwinner Tech
Manufacturer part #: T113-S3
Store part #: C5197687
Package / case: ELQFP-128
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,667 in stock

#C5197687

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹2,969.21	₹2,969.21
10+	₹2,727.47	₹27,274.70
30+	₹2,611.06	₹78,331.80
90+	₹2,437.09	₹2,19,338.10

Quantity (min 1)

1 × ₹2,969.21

₹2,969.21

excl. GST

₹3,503.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 90 per tray

T113-S3

₹2,969.21 for 1 + GST

Specifications

DAC (Bit): 10bit
ADC (Bit): 12bit;10bit
Number of I/O: 103
Operating Temperature: -25℃~+75℃
Voltage - Supply: 850mV~990mV;2.97V~3.63V
Program Memory Type: FLASH
CPU Core: ARM Cortex-A7
Core Size: 32 Bit

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tray
Standard pack: 90 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.19 g

Overview

Key features

Dual-core ARM Cortex-A7 CPU with HiFi4 DSP
Integrated 128 MB DDR3 memory, clock frequency up to 800 MHz
Three SD/MMC host controller interfaces, supporting SD3.0, SDIO3.0, and eMMC5.0 standards
Video engine supporting H.265, H.264, H.263, MPEG-1/2/4, JPEG, Xvid, and Sorenson Spark decoding, up to 1080p@60fps
JPEG and MJPEG encoding support, up to 1080p@60fps
Allwinner SmartColor2.0 post-processing technology for superior display quality
De-interlacer support, up to 1080p@60fps
2D graphics hardware accelerator with rotation, blending, and LBC decompression
Video output: RGB interface up to 1920 × 1080@60fps
Video output: dual-link LVDS interface up to 1920 × 1080@60fps
Video output: 4-lane MIPI DSI interface up to 1920 × 1200@60fps
Video output: CVBS OUT interface, NTSC and PAL compatible
Video input: 8-bit digital camera interface
Video input: CVBS IN interface, NTSC and PAL compatible
Analog audio codec with 2 DACs and 3 ADCs
Analog audio interfaces: headphone output L/R, microphone input 3 P/N, line input L/R, FM input L/R
Two external I2S/PCM interfaces
Up to 8 digital PDM microphones
Single-wire audio transmitter, S/PDIF compatible
Security engine supporting AES, DES, 3DES, RSA, MD5, SHA, and HMAC algorithms
Integrated 2 Kbit OTP storage
External peripherals: USB 2.0 OTG port and USB 2.0 host port
External peripherals: 10/100/1000 Mbps Ethernet with RGMII and RMII interfaces
Up to 6 UART controllers
Up to 2 SPI controllers
Up to 4 I2C controllers
IR receiver and IR transmitter support
8 independent PWM channels
1-channel general-purpose ADC
4-channel touchscreen ADC
LED controller support
Two CAN interfaces
eLQFP128 package, 14 mm × 14 mm × 1.4 mm
