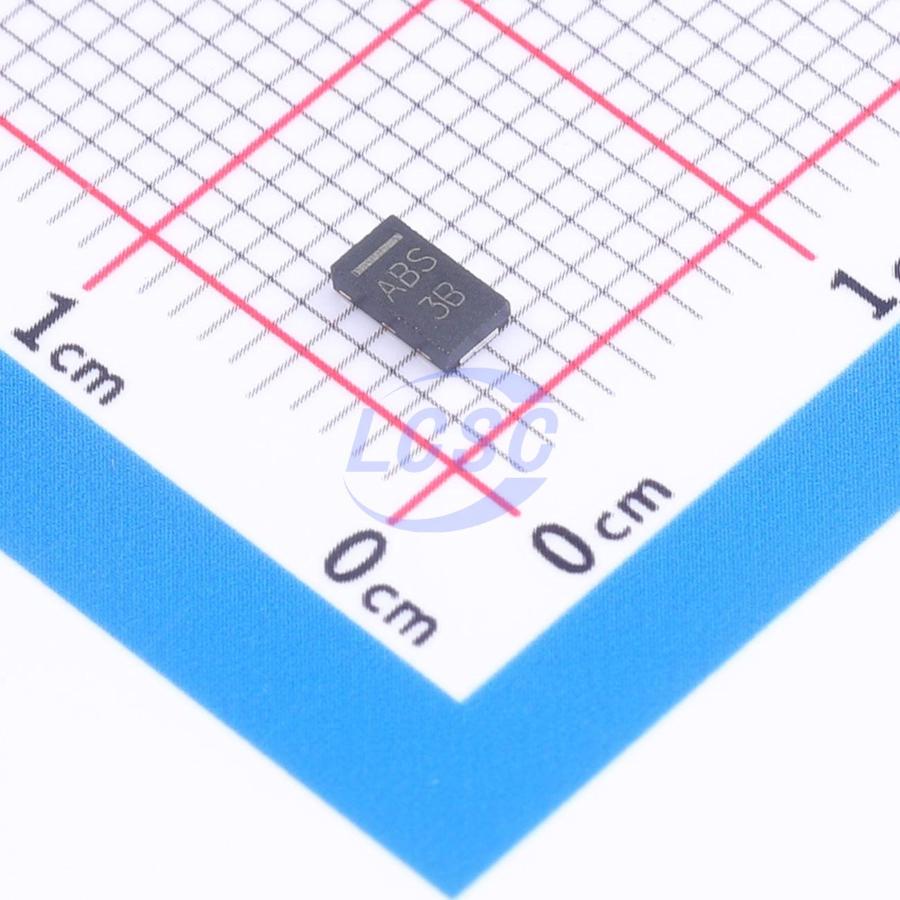

T6N16AHM3/I
22.5V 26.7A@10/1000us 600W@10/1000us 16V Unidirectional 13.6V DFN3820A TVS Diodes RoHS
DFN3820AROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- T6N16AHM3/I
- Store part #
- C20038309
- Package / case
- DFN3820A
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C20038309
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.04 | ₹55.04 |
| 10+ | ₹54.18 | ₹541.80 |
| 30+ | ₹53.74 | ₹1,612.20 |
| 100+ | ₹53.32 | ₹5,332.00 |
1 × ₹55.04
₹55.04
excl. GST
₹64.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 14,000 per reel
T6N16AHM3/I
₹55.04 for 1 + GST
Specifications
- Clamping Voltage
- 22.5V
- Operating Temperature
- -65℃~+185℃
- Peak Pulse Current (Ipp)
- 26.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Voltage - Breakdown
- 16V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 13.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 14,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.08 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for automotive.
Key features
- Low-profile package - typical height of 0.88 mm
- Leadless DFN package with side-wettable pb flanks suitable for customer AOI (Automati c Optical Inspection) RoHS COMPLIANT
- Ideal for automated placement HALOGEN
- Junction passivation optimized design FREE passivated anisotropic rectifier technology
- T_J = 185 °C capability suitable for high reliability and automotive requirement
- Unidirectional
- Excellent clamping capability
- Peak pulse power: 600 W (10/1000 μs)
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified - Automotive ordering code: base P/NHM3
- Compatible to SMP (DO-220AA) package case outline
