VISHAYDatasheet (PDF)

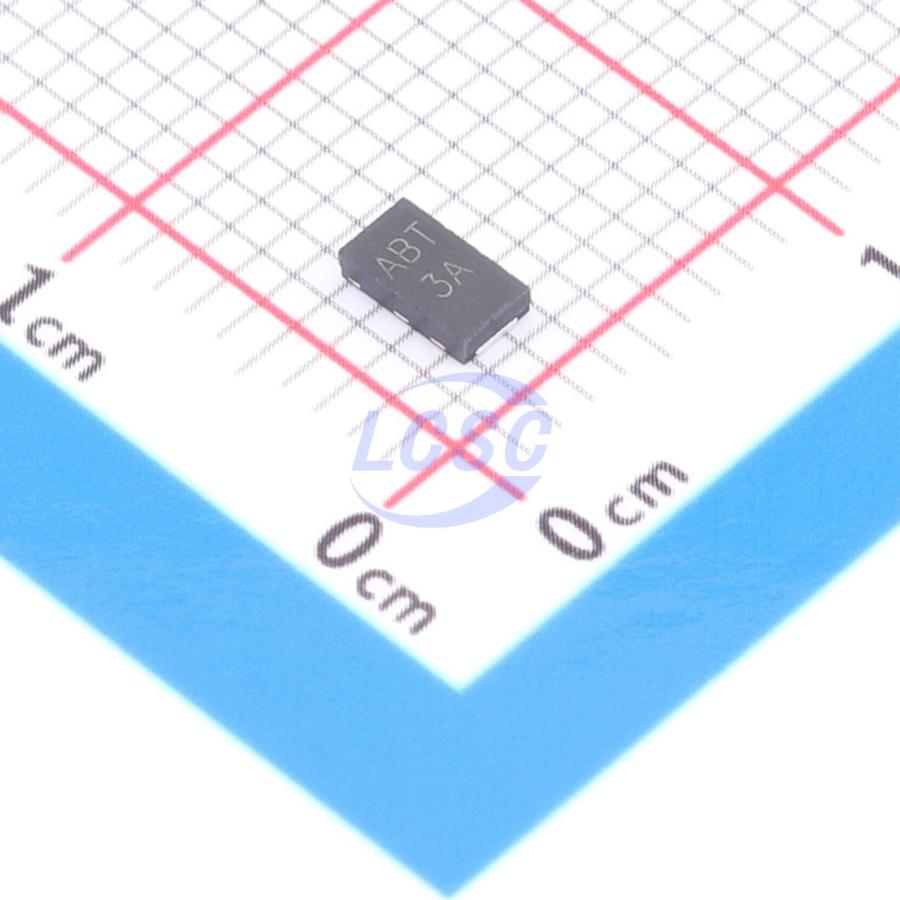

T6N18CAHM3/I
25.5VC Clamp 23.5A@10/1000us Ipp TVS DIODE DFN3820A
DFN3820AROHS CompliantActive
TVS DIODE 15.3VWM 25.5VC DFN3820A
- Manufacturer
- VISHAY
- Manufacturer part #
- T6N18CAHM3/I
- Store part #
- C29269762
- Package / case
- DFN3820A
- Category
- TVS Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29269762
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.67 | ₹55.67 |
| 10+ | ₹55.04 | ₹550.40 |
| 30+ | ₹54.60 | ₹1,638.00 |
| 100+ | ₹54.18 | ₹5,418.00 |
1 × ₹55.67
₹55.67
excl. GST
₹65.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 14,000 per bag
T6N18CAHM3/I
₹55.67 for 1 + GST
Specifications
- Clamping Voltage
- 25.5V
- Operating Temperature
- -65℃~+185℃
- Peak Pulse Current (Ipp)
- 23.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 18V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15.3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 14,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
