VISHAYDatasheet (PDF)

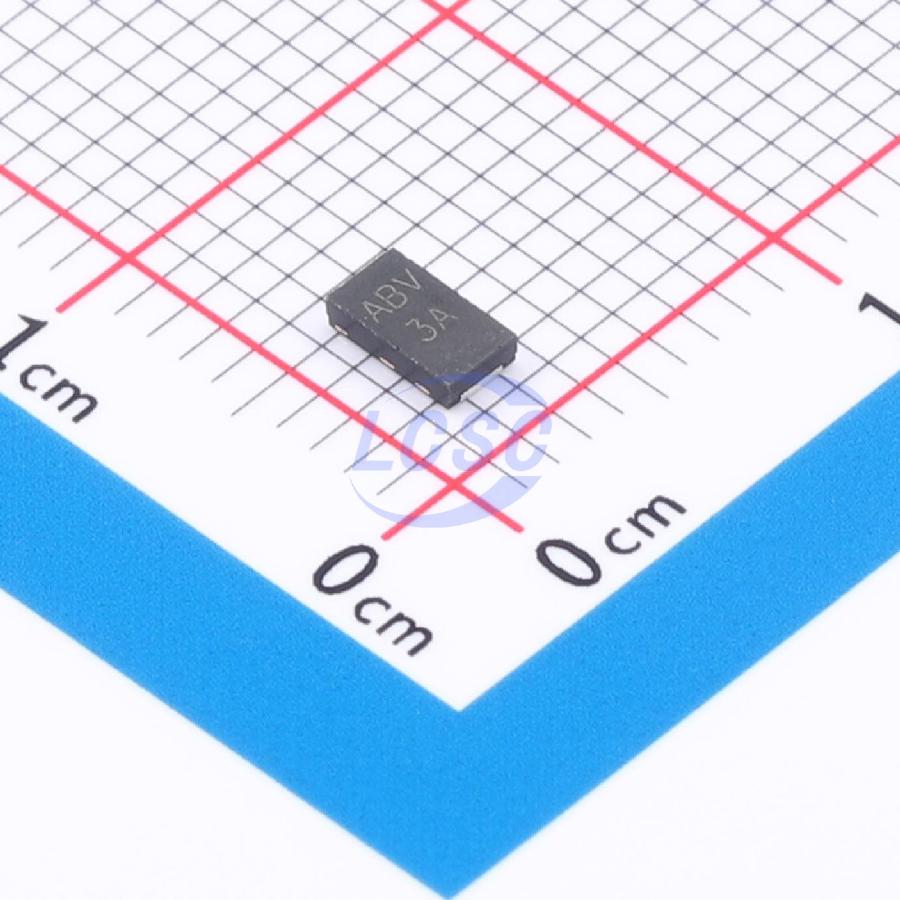

T6N20CAHM3/I
27.7V 21.7A@10/1000us 600W@10/1000us 20V Bidirectional 17.1V DFN3820A TVS Diodes RoHS
DFN3820AROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- T6N20CAHM3/I
- Store part #
- C26735569
- Package / case
- DFN3820A
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C26735569
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.37 | ₹48.37 |
| 10+ | ₹47.72 | ₹477.20 |
| 30+ | ₹47.07 | ₹1,412.10 |
| 100+ | ₹46.65 | ₹4,665.00 |
1 × ₹48.37
₹48.37
excl. GST
₹57.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 14,000 per reel
T6N20CAHM3/I
₹48.37 for 1 + GST
Specifications
- Clamping Voltage
- 27.7V
- Operating Temperature
- -65℃~+185℃
- Peak Pulse Current (Ipp)
- 21.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 20V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 17.1V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 14,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.02 g
Overview
Applications
- Protection of sensitive electronic equipment against voltage transients on signal lines of automotive ICs, MOSFETs, and sensor units caused by inductive load switching and lightning strikes.
Key features
- Thin package — typical height 0.88 mm
- Leadless DFN package with solderable side flanks for customer AOI
- Ideal for automated placement
- Junction passivation optimized design using passivated anisotropic rectifier technology
- Junction temperature T_J up to 185°C for high-reliability and automotive applications
- Bidirectional
- Excellent clamping capability
- Peak pulse power: 600 W (10/1000 μs)
- MSL 1 per J-STD-020, lead-free peak reflow temperature 260°C
- AEC-Q101 qualified
- Compatible with SMP (DO-220AA) package footprint
