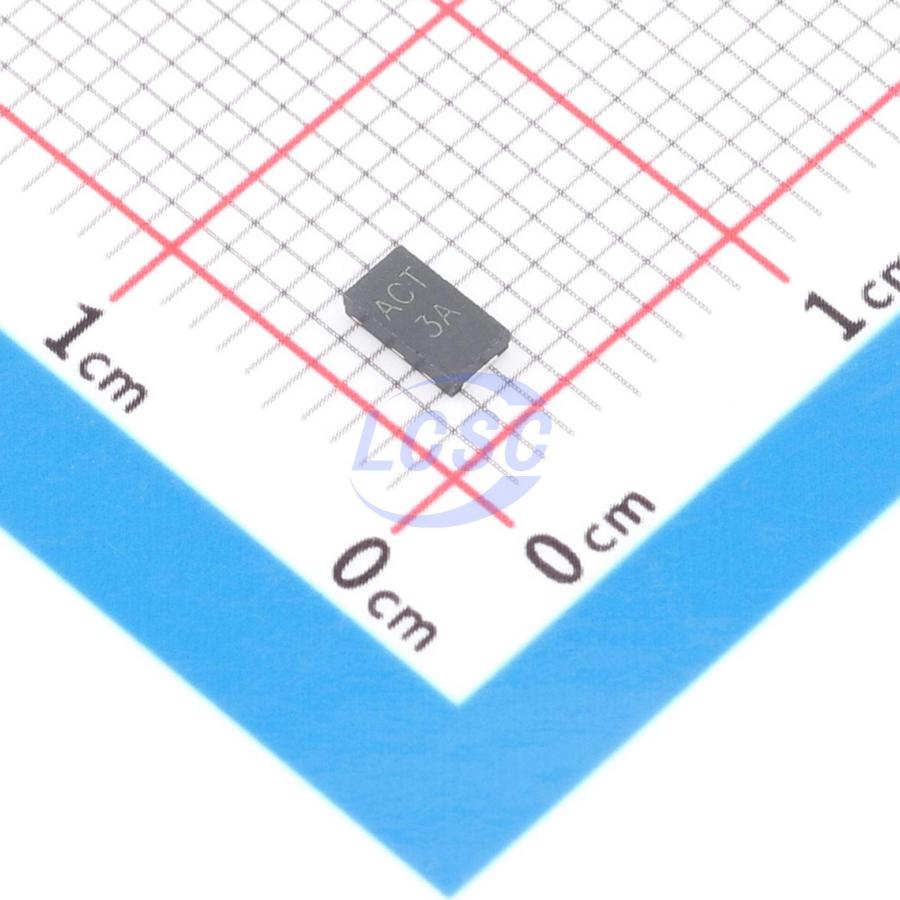

T6N75CAHM3/I VISHAY

T6N75CAHM3/I

104V 5.8A 600W@10/1000us 75V Bidirectional 64.1V DFN3820A TVS Diodes RoHS

DFN3820AROHS CompliantActive

Manufacturer: VISHAY
Manufacturer part #: T6N75CAHM3/I
Store part #: C29178247
Package / case: DFN3820A
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

45 in stock

#C29178247

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹58.69	₹58.69
10+	₹58.04	₹580.40
30+	₹57.60	₹1,728.00
100+	₹56.97	₹5,697.00

Quantity (min 1)

1 × ₹58.69

₹58.69

excl. GST

₹69.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 14,000 per reel

T6N75CAHM3/I

₹58.69 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 104V
Operating Temperature: -65℃~+185℃
Peak Pulse Current (Ipp): 5.8A
Peak Pulse Power Dissipation (Ppp): 600W@10/1000us
Number of Channels: 1
Voltage - Breakdown: 75V
type: TVS
Reverse Leakage Current (Ir): 1uA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 64.1V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 14,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

Applications

Protection of sensitive electronic equipment against voltage transients caused by inductive load switching and lightning strikes on signal lines of automotive ICs, MOSFETs, and sensor units.

Key features

Thin package — typical height 0.88 mm
Leadless DFN package with solderable side flanks for customer AOI
Ideal for automatic placement
Junction passivation optimized design using passivated anisotropic rectifier technology
Junction temperature (T_J) up to 185°C for high-reliability and automotive applications
Bidirectional characteristics
Excellent clamping capability
Peak pulse power: 600 W (10/1000 μs)
MSL level 1 per J-STD-020, lead-free peak soldering temperature 260°C
AEC-Q101 qualified
Compatible with SMP (DO-220AA) package footprint
