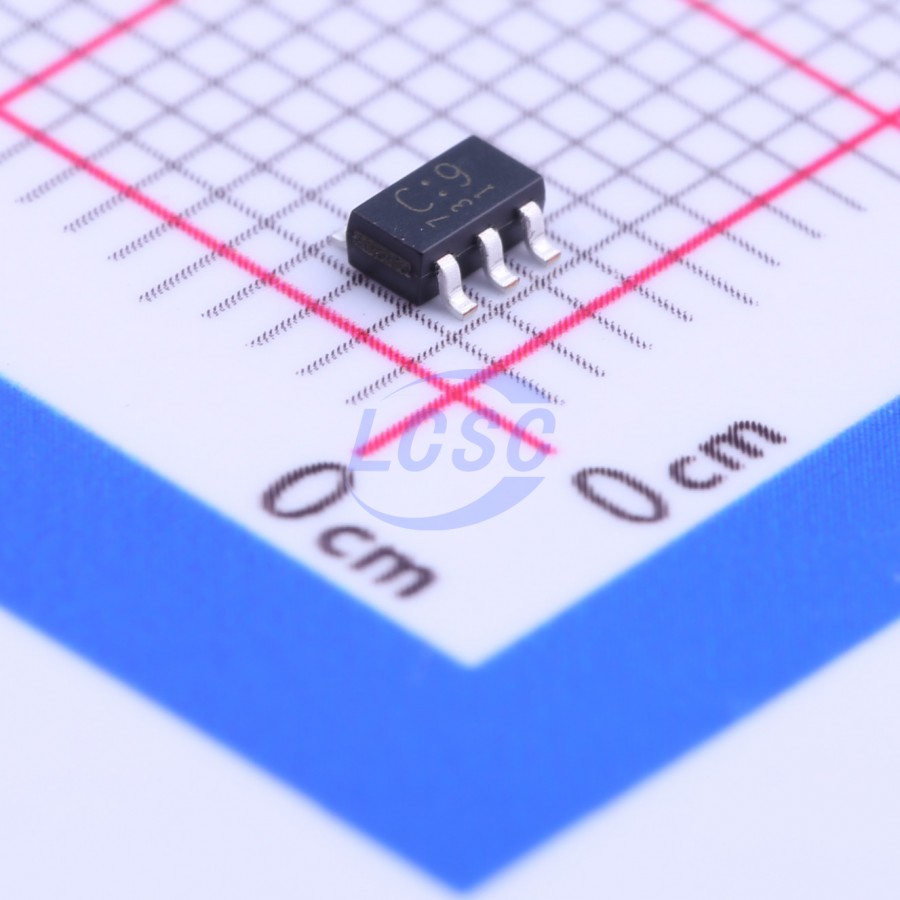

TC4S66F,LF TOSHIBA
TOSHIBA

TC4S66F,LF

70Ω 3V~18V SSOP-5-1.6mm Analog Switches, Multiplexers, Demultiplexers RoHS

SSOP-5-1.6mmROHS3 CompliantActive

BILATERAL SWITCH

Manufacturer
TOSHIBA
Manufacturer part #
TC4S66F,LF
Store part #
C146314
Package / case
SSOP-5-1.6mm
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,815 in stock

#C146314

Stock & price checked 6 days ago

QuantityUnit pricePack price
5+₹22.36₹111.80
50+₹17.68₹884.00
150+₹15.66₹2,349.00
500+₹13.15₹6,575.00
3,000+₹11.11₹33,330.00
6,000+₹10.44₹62,640.00

5 × ₹22.36

₹111.80

excl. GST

₹131.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

TC4S66F,LF

₹111.80 for 5 + GST

Specifications

Features
Bidirectional analog channel
Operating Temperature
-40℃~+85℃
Ron
70Ω
Voltage - Supply
3V~18V
Propagation Delay
5ns

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.028 g

Overview

TC4S66F/FU contains one circuit of bidirectional switches. When control input, CONT is set to "H" level, the impedance between input and output of the switch becomes low and when it is set to "L" level, the switch becomes high. This can be applied for switching of analog signals and digital signals

Key features

  • ON - resistance (RON) 300 Ω (Typ.) .... VDD - VSS = 5 V
  • 100 Ω (Typ.) .. VDD - VSS = 10 V
  • 70 Ω (Typ.) VDD - VSS = 15 V
  • OFF - resistance (ROFF) ROFF (Typ.) > 10^9 Ω
