MICROCHIPDatasheet (PDF)

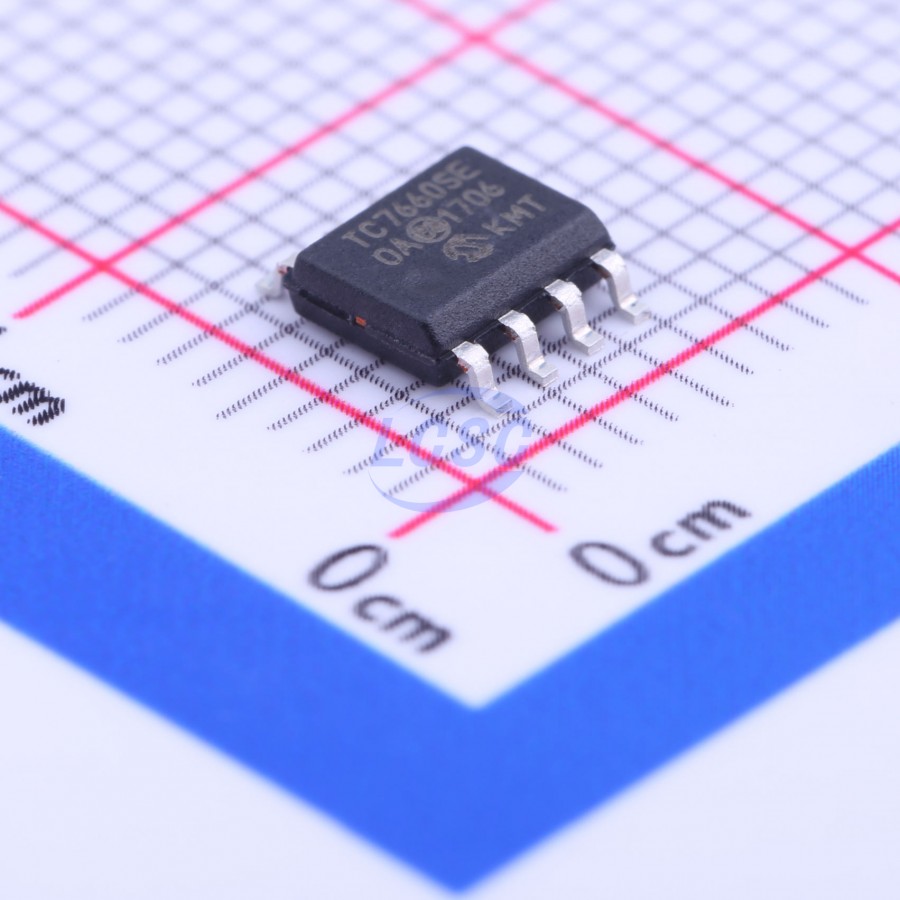

TC7660SEOA713
Inverted 45kHz SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS3 CompliantActive
Super Charge Pump DC-to-DC Voltage Converter
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TC7660SEOA713
- Store part #
- C144305
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,316 in stock
#C144305
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.97 | ₹140.97 |
| 10+ | ₹114.68 | ₹1,146.80 |
| 30+ | ₹101.65 | ₹3,049.50 |
| 100+ | ₹87.53 | ₹8,753.00 |
| 500+ | ₹79.71 | ₹39,855.00 |
| 1,000+ | ₹75.81 | ₹75,810.00 |
1 × ₹140.97
₹140.97
excl. GST
₹166.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
TC7660SEOA713
₹140.97 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Function
- Inverted
- Frequency - Switching
- 45kHz
- Features
- Adaptive switching frequency;Cascade support
- Operating Voltage
- 1.5V~12V
- Energy Efficiency
- 98%
- Quiescent Current
- 160uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
It converts a +1.5V to +12V input to a corresponding -1.5V to -12V output using only two low-cost capacitors, eliminating inductors and their associated cost, size and electromagnetic interference (EMI). Added features include an extended supply range to 12V, and a frequency boost pin for higher operating frequency, allowing the use of smaller external capacitors.
Applications
- RS-232 Negative Power Supply
- Simple Conversion of +5V to ±5V Supplies
- Voltage Multiplication VOUT = ±nV+
- Negative Supplies for Data Acquisition Systems and Instrumentation
Key features
- Oscillator boost from 10 kHz to 45 kHz
- Converts +5V Logic Supply to ±5V System
- Wide Input Voltage Range: +1.5V to +12V
- Efficient Voltage Conversion (99.9%, typical)
- Excellent Power Efficiency (98%, typical)
- Low Power Consumption: 80 µA (typical) × VIN = 5V
- Low Cost and Easy to Use - Only Two External Capacitors Required
- Available in 8-Pin Small Outline (SOIC) and 8-Pin PDIP Packages
- Improved ESD Protection (10 kV HBM)
- No External Diode Required for High-Voltage Operation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC7660SEOA#C636973MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 88 | ₹147.47 · 88 in stock | View |
