TOSHIBADatasheet (PDF)

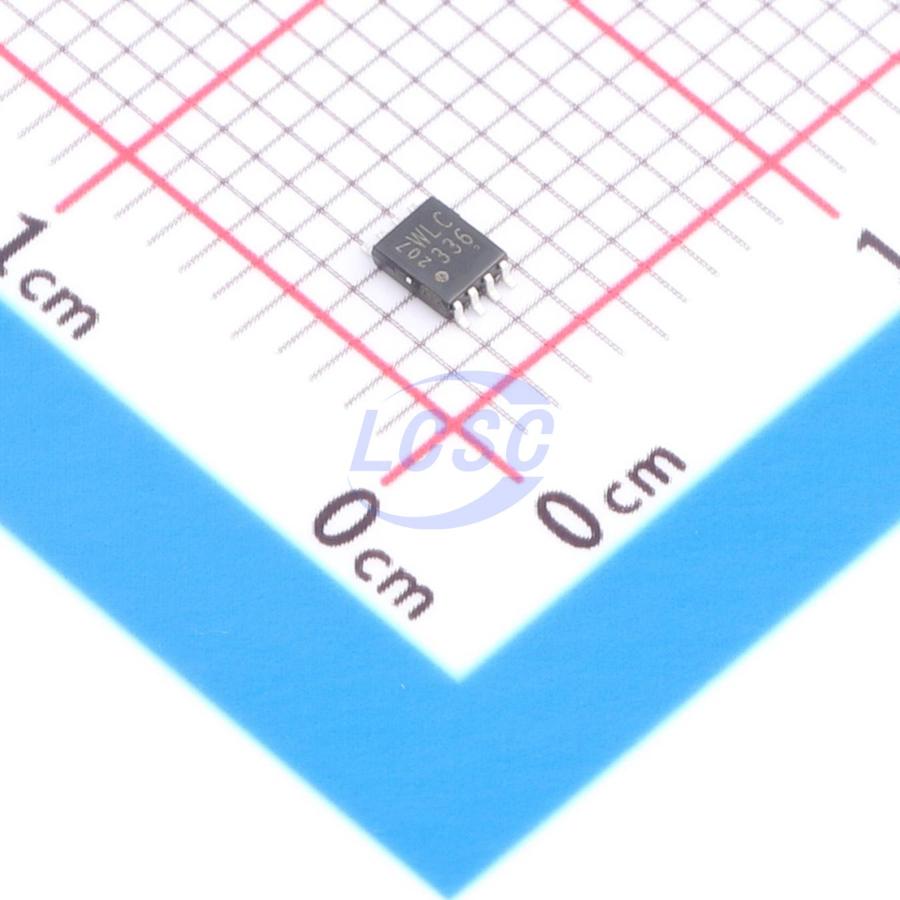

TC7WBL3306CFK,L(CT
19Ω 1.65V~3.6V US-8 Analog Switches, Multiplexers, Demultiplexers RoHS
US-8ROHS3 CompliantActive
CMOS Digital Integrated Circuits Silicon Monolithic
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WBL3306CFK,L(CT
- Store part #
- C2673290
- Package / case
- US-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,985 in stock
#C2673290
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.40 | ₹147.00 |
| 50+ | ₹25.39 | ₹1,269.50 |
| 150+ | ₹23.68 | ₹3,552.00 |
| 500+ | ₹21.54 | ₹10,770.00 |
| 3,000+ | ₹20.59 | ₹61,770.00 |
| 6,000+ | ₹20.02 | ₹1,20,120.00 |
5 × ₹29.40
₹147.00
excl. GST
₹173.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WBL3306CFK,L(CT
₹147.00 for 5 + GST
Specifications
- Features
- ESD protection;Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 19Ω
- Voltage - Supply
- 1.65V~3.6V
- Con
- 7pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The TC7WBL3305CFK and TC7WBL3306CFK are Low Voltage/Low Capacitance CMOS 2bit Bus Switches. The low ON-resistance of the switch allows connections to be made with minimal propagation delay time. The TC7WBL33306CFK requires the output enable (OE(overline)) input to be set high to place the output into the high impedance state, whereas the TC7WBL3305CFK requires the output enable (OE) input to be set low to place the output into the high impedance. All inputs are equipped with protection circuits against static discharge.
Key features
- Operating voltage: VCC = 1.65 to 3.6 V
- ON capacitance: CI/O = 7 pF Switch On (typ.) @ VCC = 3.0 V
- ON resistance: RON = 6.0 Ω 3.0 Ω (typ.) @ VCC = 3.0 V, VIS = 0 V
- ESD performance: Machine model ≥ ±200 V, Human body model ≥ ±2000 V
- Power-down protection for inputs (OE and OE(overline), I/O)
- Package: US8
