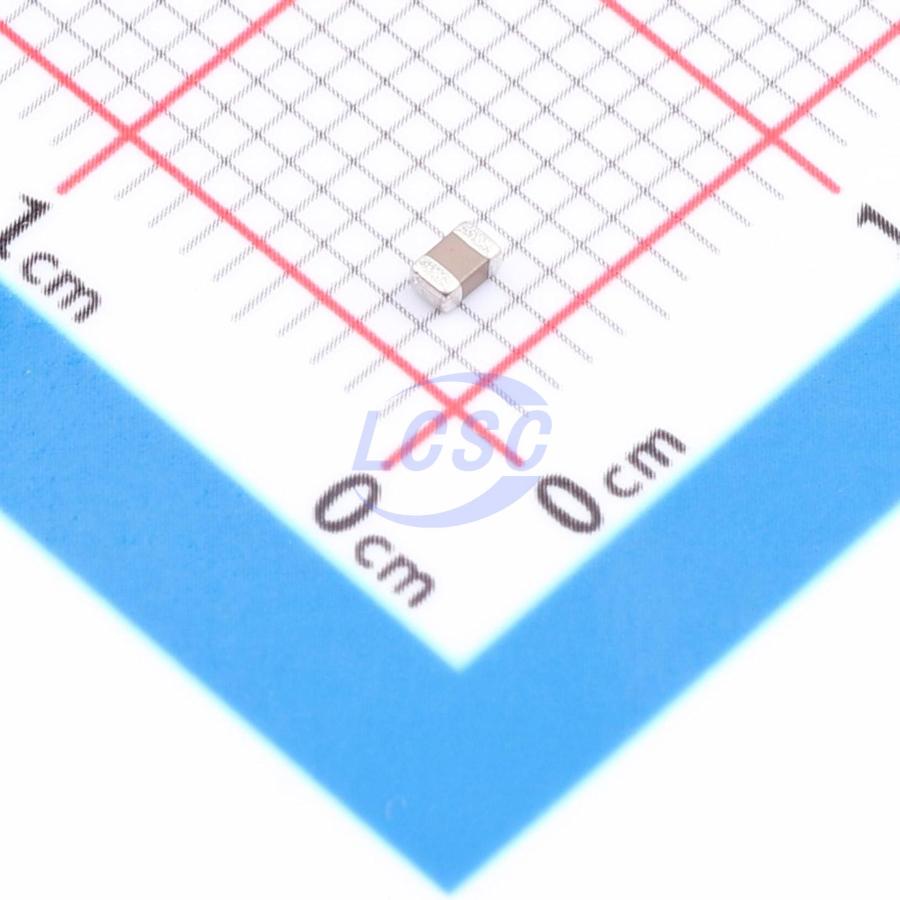

TCC0805X7R102K500DTM
1nF X7R ±10% 50V 0805 Ceramic Capacitors RoHS
- Manufacturer
- CCTC
- Manufacturer part #
- TCC0805X7R102K500DTM
- Store part #
- C48543680
- Package / case
- 0805
- Category
- Ceramic Capacitors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C48543680
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.36 | ₹68.00 |
| 500+ | ₹1.34 | ₹670.00 |
| 1,500+ | ₹1.32 | ₹1,980.00 |
| 4,000+ | ₹1.30 | ₹5,200.00 |
50 × ₹1.36
₹68.00
excl. GST
₹80.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TCC0805X7R102K500DTM
₹68.00 for 50 + GST
Specifications
- Capacitance
- 1nF
- Temperature Coefficient
- X7R
- Tolerance
- ±10%
- Voltage Rating
- 50V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.039 g
Overview
- Capacitors with COG dielectric are Class I capacitors, including standard and medium-to-high voltage COG products. These products offer stable electrical performance with minimal variation over temperature, voltage, and time, making them suitable for low-loss, high-stability circuits such as filters, resonators, and timing circuits. - Capacitors with X7R/X7S/X7T/X5R/X6S dielectrics are Class II capacitors, featuring higher dielectric constants and greater capacitance than Class I capacitors, with reasonably stable temperature characteristics. Suitable for circuits requiring wide capacitance range but less stringent stability, such as DC blocking, coupling, bypassing, and frequency discrimination circuits.
Applications
- COG Capacitors: filters, resonators, timing circuits.
- X7R/X7S/X7T/X5R/X6S Capacitors: DC blocking, coupling, bypass, and discriminator circuits.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TCC0805X7R102K101DT#C282718CCTC · 0805 | CCTC | 0805 | 23,600 | ₹1.18 · 23,600 in stock | View |
 | TCC0805X7R102K251DT#C282720CCTC · 0805 | CCTC | 0805 | 17,300 | ₹1.40 · 17,300 in stock | View |
 | TCC0805X7R102K500DT#C282721CCTC · 0805 | CCTC | 0805 | 5,40,700 | ₹0.9261 · 5,40,700 in stock | View |
 | TCC0805X7R102K251FT#C376916CCTC · 0805 | CCTC | 0805 | 800 | ₹1.18 · 800 in stock | View |
 | TCC0805X7R102K500DTS#C376917CCTC · 0805 | CCTC | 0805 | 9,250 | ₹1.20 · 9,250 in stock | View |
