TechcodeDatasheet (PDF)

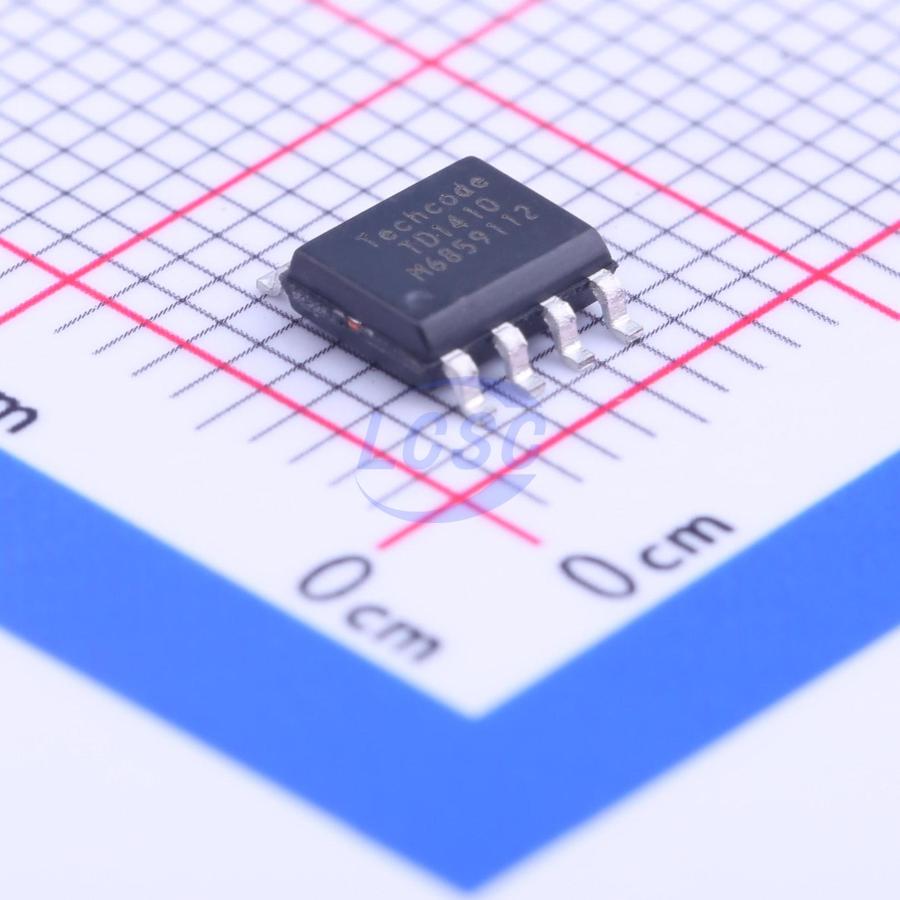

TD1410P
380kHz Step-down type Adjustable 1.222V~18V 2A SOIC-8 Voltage Regulators - DC DC Switching Regulators
SOIC-8RoHSActive
2A 380KHz 20V PWM Buck DC/DC Converter
- Manufacturer
- Techcode
- Manufacturer part #
- TD1410P
- Store part #
- C52585
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,860 in stock
#C52585
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.40 | ₹247.00 |
| 50+ | ₹39.36 | ₹1,968.00 |
| 150+ | ₹35.06 | ₹5,259.00 |
| 500+ | ₹29.70 | ₹14,850.00 |
| 2,500+ | ₹25.84 | ₹64,600.00 |
| 5,000+ | ₹24.40 | ₹1,22,000.00 |
5 × ₹49.40
₹247.00
excl. GST
₹291.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TD1410P
₹247.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ);-10℃~+85℃@(TA)
- Frequency - Switching
- 380kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.6V~20V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.222V~18V
- Output Current
- 2A
- Quiescent Current
- 3.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.234 g
Overview
The TD1410 is a 380 KHz fixed frequency monolithic step down switch mode regulator with a built in internal Power MOSFET. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. The device includes a voltage reference, oscillation circuit, error amplifier, internal PMOS and etc. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function and a short circuit protection function are built inside. An internal compensation block is built in to minimize external component count. The TD1410 serves as ideal power supply units for portable devices.
Applications
- Portable DVD
- LCD Monitor / TV
- Battery Charger
- ADSL Modem
- Telecom / Networking Equipment
Key features
- 2A Constant Output Current
- 140mΩ RDSON Internal Power PMOSFET Switch
- Up to 95% Efficiency
- Fixed 380KHz Frequency
- Wide 3.6V to 20V Input Voltage Range
- Output Adjustable from 1.222V to 18V
- Built in Frequency Compensation
- Built in Thermal Shutdown Function
- Built in Current Limit Function
- SOP - 8 Package is Available
- The minimum dropout up to 0.3V
