TechcodeDatasheet (PDF)

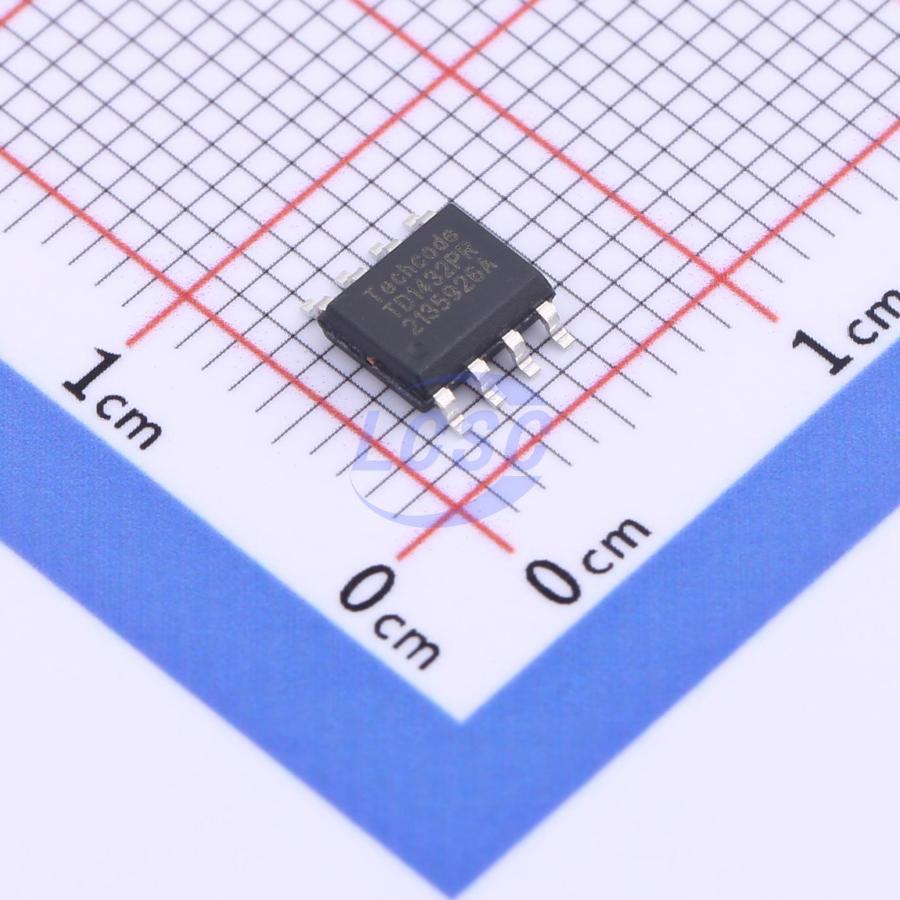

TD1432PR
150kHz Step-down type Adjustable 2A SOP-8 Voltage Regulators - DC DC Switching Regulators
SOP-8RoHSActive
2A 150KHz PWM Buck DC/DC Converter
- Manufacturer
- Techcode
- Manufacturer part #
- TD1432PR
- Store part #
- C3008528
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C3008528
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.90 | ₹104.50 |
| 50+ | ₹18.26 | ₹913.00 |
| 150+ | ₹17.12 | ₹2,568.00 |
| 500+ | ₹15.70 | ₹7,850.00 |
| 2,500+ | ₹14.14 | ₹35,350.00 |
| 5,000+ | ₹13.77 | ₹68,850.00 |
| 10,000+ | ₹13.57 | ₹1,35,700.00 |
| 20,000+ | ₹13.45 | ₹2,69,000.00 |
5 × ₹20.90
₹104.50
excl. GST
₹123.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TD1432PR
₹104.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 150kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Overcurrent Protection;EMI optimization (spread spectrum)
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 9V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 3mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
TD1432 regulates input voltages from 9V to 40V down to an output voltage as low as 1.23V, and supplies up to 2A of load current.
Applications
- Simple high-efficiency step-down regulator
- Efficient pre-regulator for linear regulators
- On-card switching regulators
- Positive to negative converter
- Battery charger
Key features
- Internal Power MOSFET
- 2A continuous output current
- Up to 90% efficiency
- Input voltage range: 9V to 40V
- Fixed 150kHz frequency internal oscillator
- Current limit protection
- Anti-ringing for lower EMI
- Over temperature protection
- SOP-8 package
