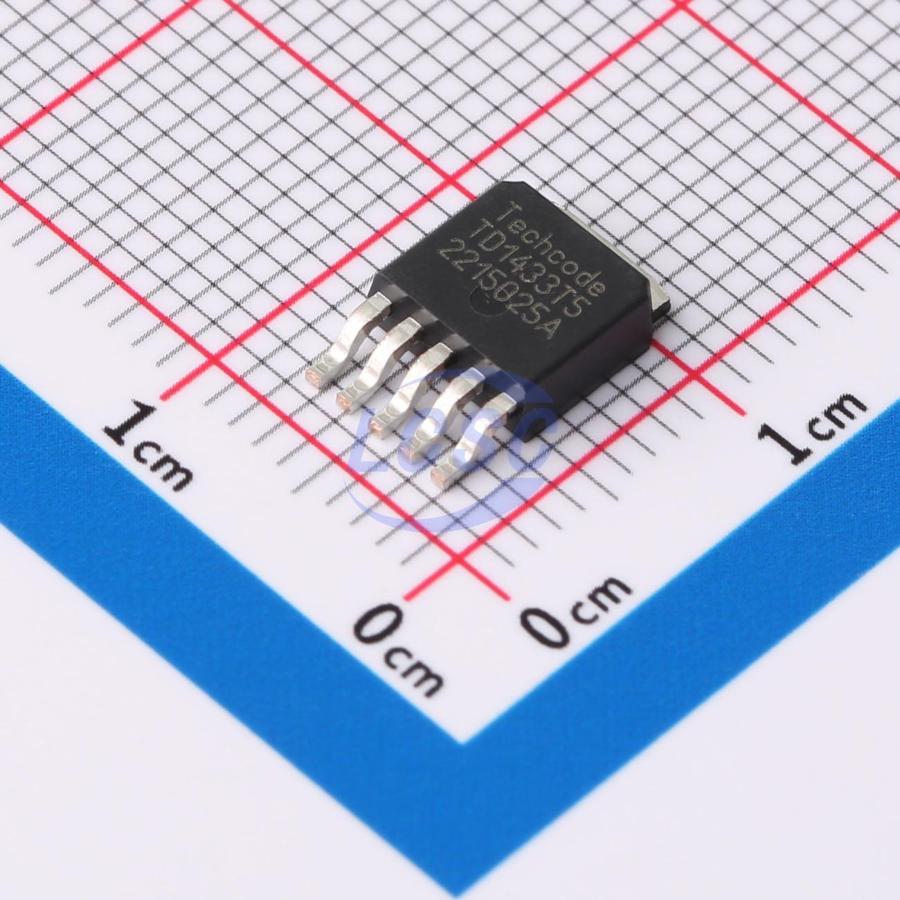

TD1433T5
150kHz Step-down type Adjustable 4.8V~5.2V 3A TO-252-5 Voltage Regulators - DC DC Switching Regulators
TO-252-5RoHSActive
3A 150KHz PWM Buck DC/DC Converter
- Manufacturer
- Techcode
- Manufacturer part #
- TD1433T5
- Store part #
- C7525478
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C7525478
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.92 | ₹139.60 |
| 50+ | ₹24.49 | ₹1,224.50 |
| 150+ | ₹23.02 | ₹3,453.00 |
| 500+ | ₹21.18 | ₹10,590.00 |
| 2,500+ | ₹20.37 | ₹50,925.00 |
| 5,000+ | ₹19.88 | ₹99,400.00 |
5 × ₹27.92
₹139.60
excl. GST
₹164.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TD1433T5
₹139.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection;EMI optimization (spread spectrum)
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 9V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 4.8V~5.2V
- Output Current
- 3A
- Quiescent Current
- 3mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.42 g
Overview
TD1433 regulates input voltages from 9V to 40V down to an output voltage as low as 1.23V, and supplies up to 3A of load current.
Applications
- Simple high-efficiency step-down regulator
- Efficient pre-regulator for linear regulators
- On-card switching regulators
- Positive to negative converter
- Battery charger
Key features
- Internal Power MOSFET
- 3A continuous output current
- Up to 90% efficiency
- Input voltage range: 9V to 40V
- Fixed 150kHz frequency internal oscillator
- Current limit protection
- Anti-ringing for lower EMI
- Over temperature protection
- TO252-5 package
