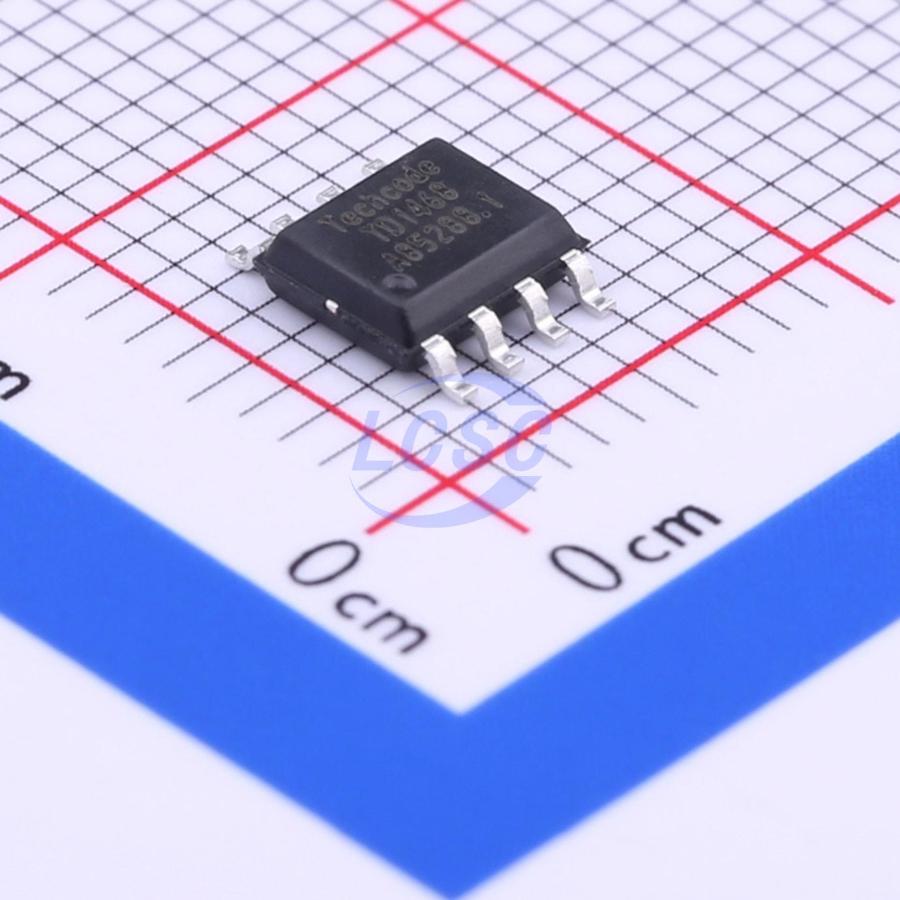

TD1468
480kHz Step-down type Adjustable 812mV~54V 2A ESOP-8 Voltage Regulators - DC DC Switching Regulators
ESOP-8RoHSActive
60V, 2A, 480kHz Non-synchronous Buck Converter
- Manufacturer
- Techcode
- Manufacturer part #
- TD1468
- Store part #
- C397879
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,991 in stock
#C397879
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.63 | ₹65.63 |
| 10+ | ₹52.15 | ₹521.50 |
| 30+ | ₹46.29 | ₹1,388.70 |
| 100+ | ₹39.12 | ₹3,912.00 |
| 500+ | ₹30.87 | ₹15,435.00 |
| 1,000+ | ₹28.91 | ₹28,910.00 |
1 × ₹65.63
₹65.63
excl. GST
₹77.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TD1468
₹65.63 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 480kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 11V~60V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 812mV~54V
- Output Current
- 2A
- Quiescent Current
- 730uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.105 g
Overview
The TD1468 is a monolithic, step‐down, switch mode converter with a built‐in power MOSFET. It achieves a 2A peak‐output current over input supply 10V - 60V with excellent load and line regulation. Current‐mode operation provides a fast transient response and eases loop stabilization. Fault condition protections include cycle‐by‐cycle current limiting and thermal shutdown. The TD1468 requires a minimal number of readily‐available external components. The TD1468 is available in a ESOP‐8 package.
Applications
- Power Meters
- Distributed Power Systems
- Battery Chargers
- Pre‐Regulator for Linear Regulators
- WLED Drivers
Key features
- 2A Peak Output Current
- 0.7Ω Internal Power MOSFET
- Stable with Low‐ESR Ceramic Output Capacitors
- Up to 91% Efficiency
- 0.1μA Shutdown Mode
- Fixed 480kHz Frequency
- Thermal Shutdown
- Cycle‐by‐Cycle Over‐Current Protection
- 11V to 60V Operating Input Range
- Max duty 90%
- Available in a ESOP‐8 Package
