TechcodeDatasheet (PDF)

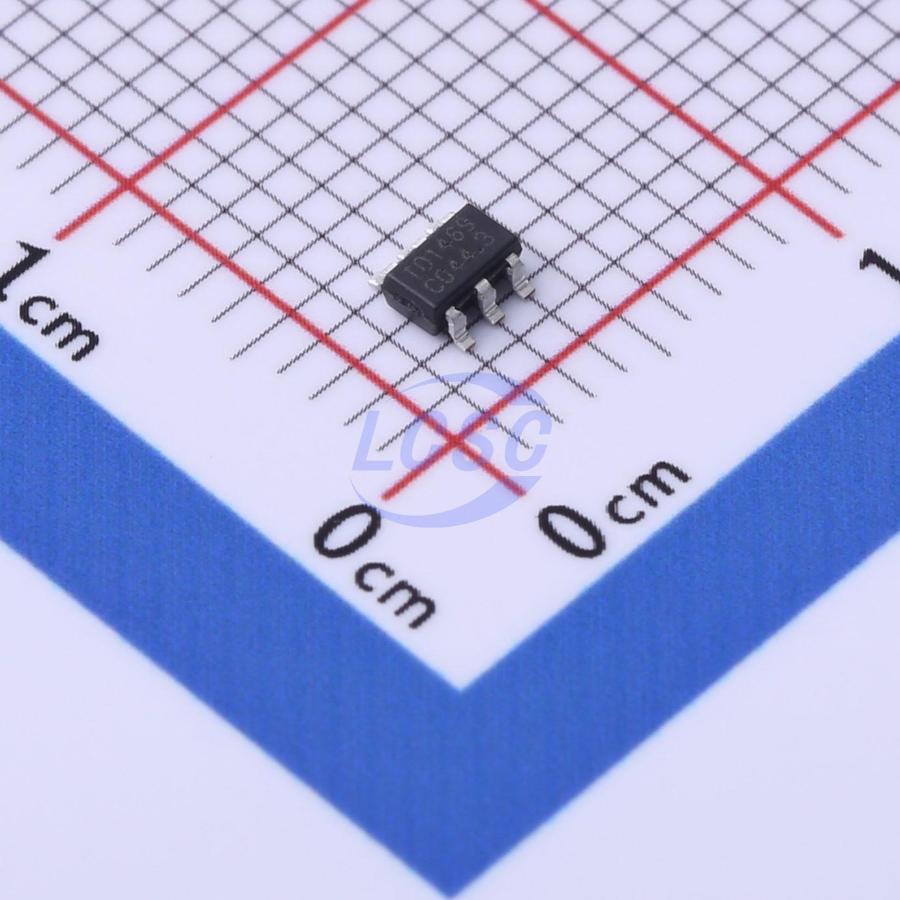

TD1469
Step-down type 960kHz~1.44MHz Adjustable 800mV~36V 800mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
40V, 800MA, 1.2MHz synchronous Buck Converter
- Manufacturer
- Techcode
- Manufacturer part #
- TD1469
- Store part #
- C2832208
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,485 in stock
#C2832208
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.08 | ₹215.40 |
| 50+ | ₹34.33 | ₹1,716.50 |
| 150+ | ₹30.59 | ₹4,588.50 |
| 500+ | ₹25.92 | ₹12,960.00 |
| 3,000+ | ₹23.48 | ₹70,440.00 |
| 6,000+ | ₹22.24 | ₹1,33,440.00 |
5 × ₹43.08
₹215.40
excl. GST
₹254.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TD1469
₹215.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 960kHz~1.44MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~36V
- Output Current
- 800mA
- Quiescent Current
- 730uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
TD1469 is a 800mA synchronous buck converter with integrated power MOSFETs. The TD1469 design with a current - mode control scheme, can convert wide input voltage of 7V to 40V to the output voltage adjustable from 0.8V to 90%VIN to provide excellent output voltage regulation. The TD1469 equipped with Power - on - reset, soft start and whole protections (under - voltage, over temperature and current - limit) into a single package. This device, available SOT - 23 - 6 provides a very compact system solution of external components and PCB area.
Applications
- Smart Electronic equipments
Key features
- Wide Input Voltage from 7V to 40V
- 800mA Output Current
- High Efficiency over 85% from Load Current 50mA to 100mA @ VOUT >= 5V
- Low EMI Converter
- Adjustable Output Voltage from 0.8V to 90%VIN
- Integrated High/Low Side MOSFET
- 1.2M Switching Frequency
- Stable with Low ESR Capacitors
- Power - On - Reset Detection
- Over - Temperature Protection
- Current - Limit Protection
- Enable/Shutdown Function
- Available in SOT - 23 - 6 packages
- Lead Free and Green Devices Available (RoHS compliant)
