TechcodeDatasheet (PDF)

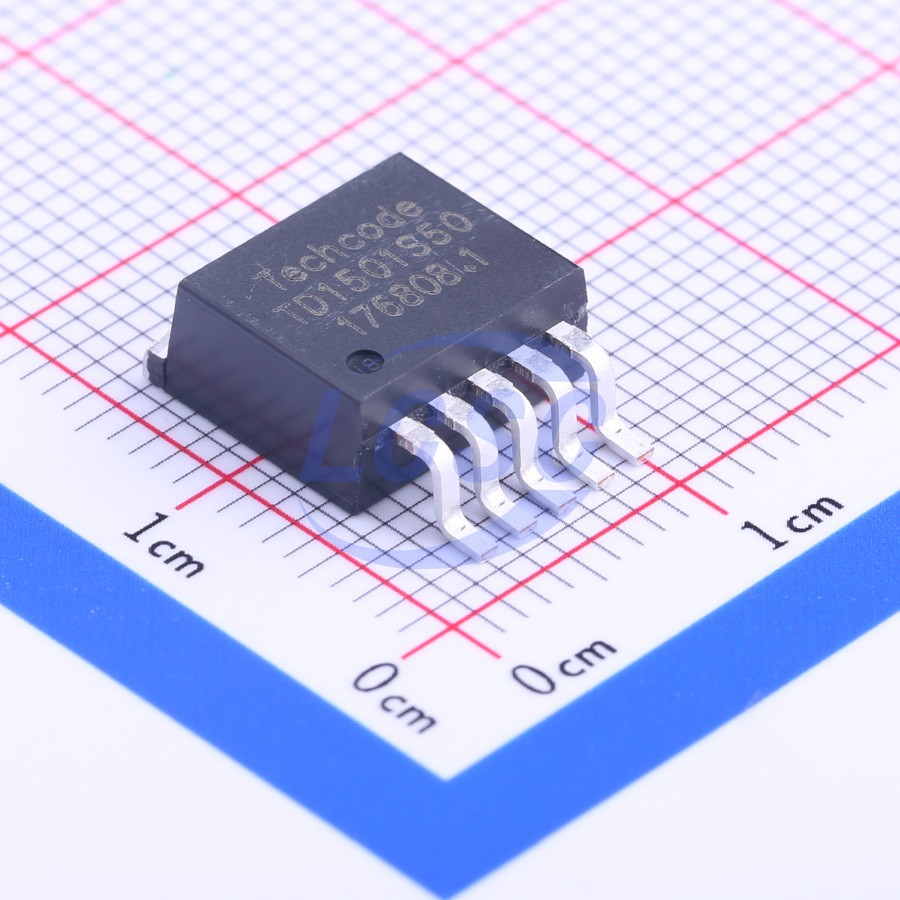

TD1501S50
150kHz Step-down type Fixed 5V 3A TO-263-5 Voltage Regulators - DC DC Switching Regulators
TO-263-5RoHSActive
3A 150KHz PWM Buck DC/DC Converter
- Manufacturer
- Techcode
- Manufacturer part #
- TD1501S50
- Store part #
- C141856
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,452 in stock
#C141856
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.83 | ₹81.83 |
| 10+ | ₹67.56 | ₹675.60 |
| 30+ | ₹61.60 | ₹1,848.00 |
| 100+ | ₹54.01 | ₹5,401.00 |
| 500+ | ₹47.15 | ₹23,575.00 |
| 800+ | ₹45.17 | ₹36,136.00 |
1 × ₹81.83
₹81.83
excl. GST
₹96.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 800 per reel
TD1501S50
₹81.83 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 3.6V~45V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5V
- Output Current
- 3A
- Quiescent Current
- 5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.44 g
Overview
The TD1501 is a series of easy to use fixed and adjustable step-down (buck) switch-mode voltage regulators. These devices are available in fixed output voltage of 3.3V, 5V, and an adjustable output version. Both versions are capable of driving a 3A load with excellent line and load regulation.
Applications
- Simple High - efficiency step - down regulator
- On - card switching regulators
- Positive to negative converter
- LCD monitor and LCD TV
- DVD recorder and PDP TV
- Battery charger
- Step - down to 3.3V for microprocessors
Key features
- 3.3V, 5V and adjustable output versions
- Output adjustable from 1.23V to 43V
- Fixed 150KHz frequency internal oscillator
- Guaranteed 3A output load current
- Input voltage range up to 45V
- Low power standby mode, IQ typically 80μA
- TTL shutdown capability
- Excellent line and load regulation
- Requires only 4 external components
- High efficiency
- Thermal shutdown and current limit protection
- Available in TO - 220B/TO220 and TO - 263 packages
