TechcodeDatasheet (PDF)

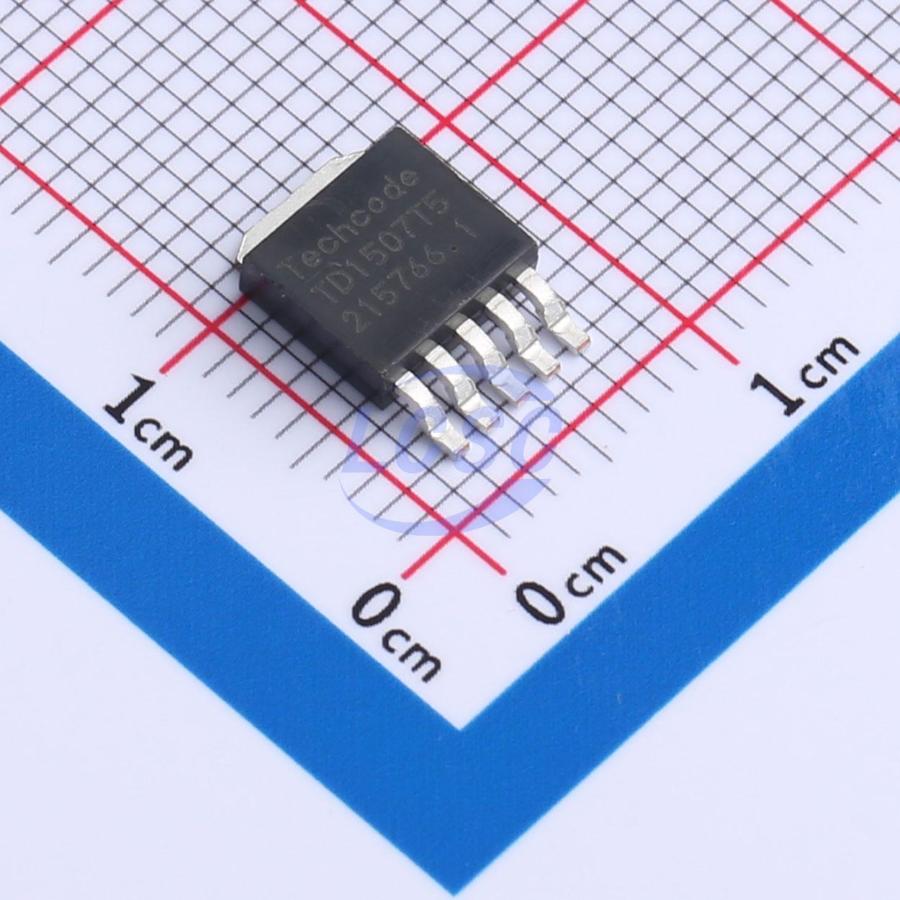

TD1507T5
127kHz~173kHz Step-down type Fixed 5V 3A TO-252-5 Voltage Regulators - DC DC Switching Regulators
TO-252-5RoHSActive
3A 150KHz PWM Buck DC/DC Converter
- Manufacturer
- Techcode
- Manufacturer part #
- TD1507T5
- Store part #
- C2935193
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,787 in stock
#C2935193
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.23 | ₹93.23 |
| 10+ | ₹71.93 | ₹719.30 |
| 30+ | ₹62.59 | ₹1,877.70 |
| 100+ | ₹51.29 | ₹5,129.00 |
| 500+ | ₹44.98 | ₹22,490.00 |
| 1,000+ | ₹41.94 | ₹41,940.00 |
1 × ₹93.23
₹93.23
excl. GST
₹110.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TD1507T5
₹93.23 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 127kHz~173kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 3.6V~45V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5V
- Output Current
- 3A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.52 g
Overview
The TD1507 is a series of easy to use fixed and adjustable step-down (buck) switch-mode voltage regulators. These devices are available in fixed output voltage of 5V, and an adjustable output version. Both versions are capable of driving a 3A load with excellent line and load regulation.
Applications
- Simple High-efficiency step-down regulator
- On-card switching regulators
- Positive to negative converter
- LCD monitor and LCD TV
- DVD recorder and PDP TV
- Battery charger Step-down to 3.3V for microprocessors
Key features
- 5V and adjustable output versions
- Output adjustable from 1.23V to 43V
- Fixed 150KHz frequency internal oscillator
- Guaranteed 3A output load current
- Input voltage range up to 45V
- Low power standby mode, IQ typically 80μA
- TTL shutdown capability
- Excellent line and load regulation
- Requires only 4 external components
- High efficiency
- Thermal shutdown and current limit protection
- Available in TO252-5L packages
