TechcodeDatasheet (PDF)

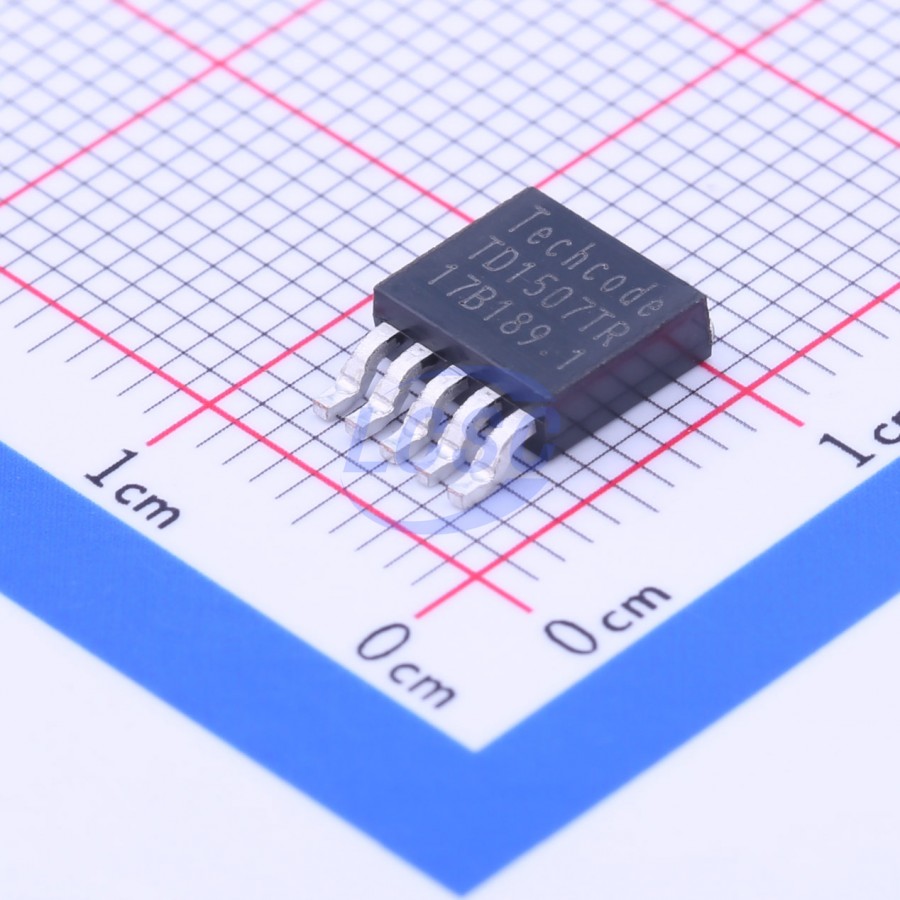

TD1507TR
127kHz~173kHz Step-down type Adjustable 1.23V~43V 3A TO-252-5 Voltage Regulators - DC DC Switching Regulators
TO-252-5RoHSActive
3A 150KHz PWM Buck DC/DC Converter
- Manufacturer
- Techcode
- Manufacturer part #
- TD1507TR
- Store part #
- C37125
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,988 in stock
#C37125
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.40 | ₹64.40 |
| 10+ | ₹50.74 | ₹507.40 |
| 30+ | ₹45.10 | ₹1,353.00 |
| 100+ | ₹37.73 | ₹3,773.00 |
| 500+ | ₹32.96 | ₹16,480.00 |
| 1,000+ | ₹31.01 | ₹31,010.00 |
1 × ₹64.40
₹64.40
excl. GST
₹75.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TD1507TR
₹64.40 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 127kHz~173kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.6V~45V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.23V~43V
- Output Current
- 3A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.609 g
Overview
The TD1507 is a series of easy to use fixed and adjustable step-down (buck) switch-mode voltage regulators. These devices are available in fixed output voltage of 5V, and an adjustable output version. Both versions are capable of driving a 3A load with excellent line and load regulation.
Applications
- Simple High-efficiency step-down regulator
- On-card switching regulators
- Positive to negative converter
- LCD monitor and LCD TV
- DVD recorder and PDP TV
- Battery charger Step-down to 3.3V for microprocessors
Key features
- 5V and adjustable output versions
- Output adjustable from 1.23V to 43V
- Fixed 150KHz frequency internal oscillator
- Guaranteed 3A output load current
- Input voltage range up to 45V
- Low power standby mode, IQ typically 80μA
- TTL shutdown capability
- Excellent line and load regulation
- Requires only 4 external components
- High efficiency
- Thermal shutdown and current limit protection
- Available in TO252-5L packages
