TechcodeDatasheet (PDF)

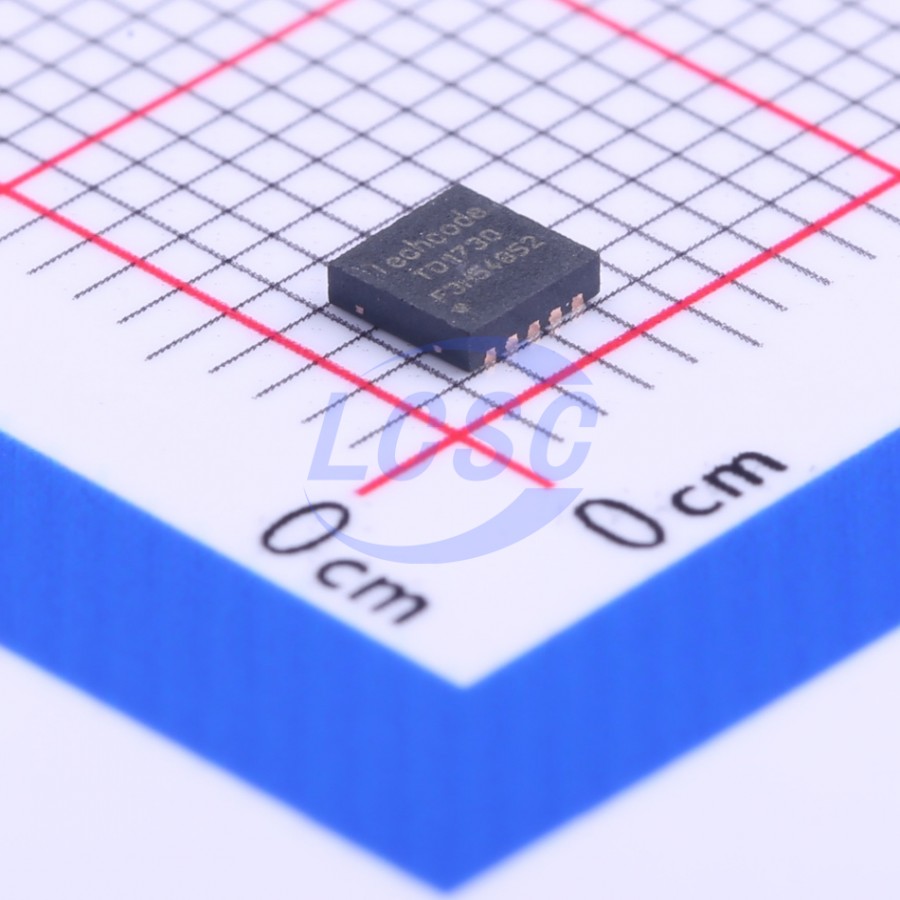

TD1730
Step-down type Adjustable 25A 700mV~5.5V TDFN-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
TDFN-10-EP(3x3)ROHS CompliantActive
High-Performance PWM Controller
- Manufacturer
- Techcode
- Manufacturer part #
- TD1730
- Store part #
- C190600
- Package / case
- TDFN-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,849 in stock
#C190600
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹29.54 | ₹29.54 |
| 10+ | ₹28.89 | ₹288.90 |
| 30+ | ₹28.46 | ₹853.80 |
| 100+ | ₹28.02 | ₹2,802.00 |
1 × ₹29.54
₹29.54
excl. GST
₹34.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TD1730
₹29.54 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA);-40℃~+125℃@(TJ)
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 135kHz;165kHz;185kHz;215kHz
- Features
- Adjustable current limiting;Light load efficient mode;Output discharge;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 1.8V~32V
- Switch tube (built-in/external)
- External
- Output Current
- 25A
- Output Voltage
- 700mV~5.5V
- Quiescent Current
- 250uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.165 g
Overview
The TD1730 is a single‐phase, constant‐on‐time, synchronous PWM controller, which drives N‐channel MOSFETs. The TD1730 steps down high voltage to generate low‐voltage chipset or RAM supplies in notebook computers. The TD1730 provides excellent transient response and accurate DC voltage output in either PFM or PWM Mode. In Pulse Frequency Mode (PFM), the TD1730 provides very high efficiency over light to heavy loads with loading‐modulated switching frequencies. In PWM Mode, the converter works nearly at constant frequency for low‐noise requirements. The TD1730 is equipped with accurate positive current‐limit, output under‐voltage, and output over‐voltage protections, perfect for NB applications. The Power‐On‐Reset function monitors the voltage on VCC to prevent wrong operation during power‐on. The TD1730 has a 1ms digital soft‐start and built‐in an integrated output discharge method for soft‐stop. An internal integrated soft‐start ramps up the output voltage with programmable slew rate to reduce the start‐up current. A soft‐stop function actively discharges the output capacitors with controlled reverse inductor current. The TD1730 is available in 10pin TDFN 3x3 package.
Applications
- Notebook
- Table PC
- Hand‐Held Portable
- AIO PC
- LCD Monitor / TV
- Battery Charger
- ADSL Modem
- Telecom / Networking Equipment
Key features
- Adjustable Output Voltage from +0.7V to +5.5V
- 0.7V Reference Voltage
- ±1% Accuracy Over‐Temperature
- Operates from an Input Battery Voltage Range of +1.8V to +32V
- Power‐On‐Reset Monitoring on VCC Pin
- Excellent Line and Load Transient Responses
- PFM Mode for Increased Light Load Efficiency
- Selectable PWM Frequency from 4 Preset Values
- Integrated MOSFET Drivers
- Integrated Bootstrap Forward P‐CH MOSFET
- Adjustable Integrated Soft‐Start and Soft‐Stop
- Selectable Forced PWM or Automatic PFM/PWM Mode
- Power Good Monitoring
- 70% Under‐Voltage Protection
- 125% Over‐Voltage Protection
- Adjustable Current‐Limit Protection
- Using Sense Low‐Side MOSFET’s RDS(ON)
- Over‐Temperature Protection
- Auto Rework from Protection Mode
- TDFN‐10 3x3 Package
- Lead Free and Green Devices Available (RoHS Compliant)
