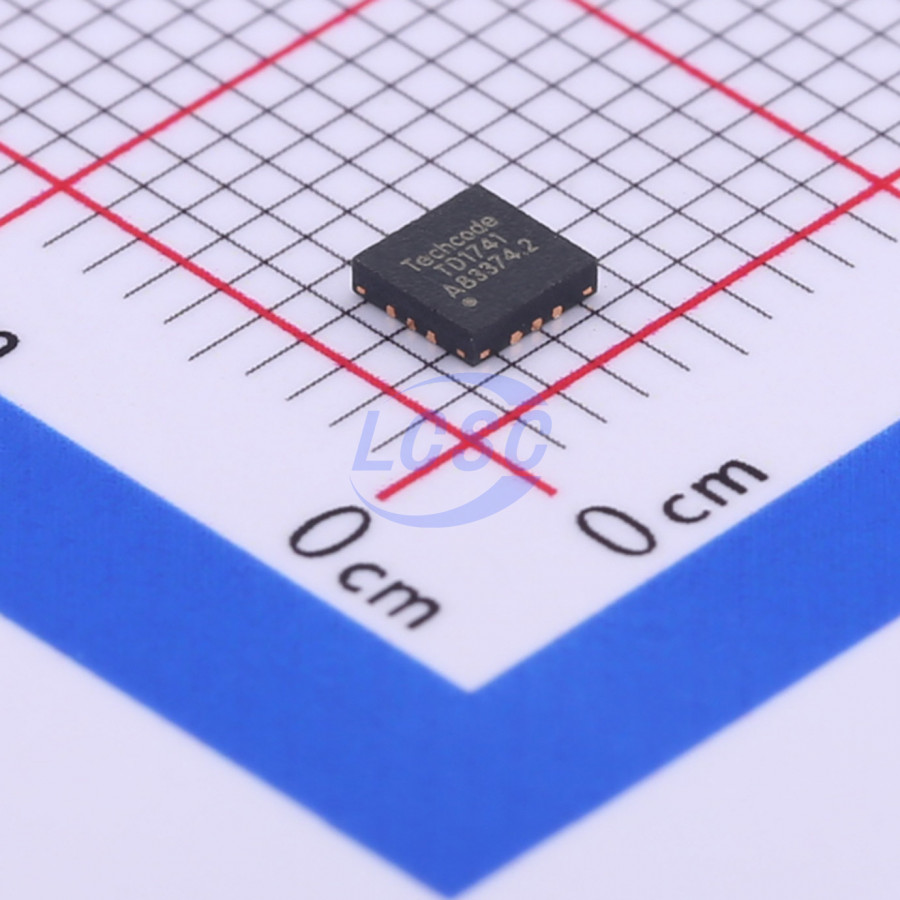

Techcode

TD1741

100kHz~150kHz Step-down type Adjustable 3V~28V 15A QFN-12-EP(3x3) Voltage Regulators - DC DC Switching Regulators

QFN-12-EP(3x3)RoHSActive

40Vin 2 Outputs Buck Controller

Manufacturer: Techcode
Manufacturer part #: TD1741
Store part #: C431043
Package / case: QFN-12-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,882 in stock

#C431043

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹63.23	₹63.23
10+	₹49.97	₹499.70
30+	₹44.32	₹1,329.60
100+	₹37.37	₹3,737.00
500+	₹31.94	₹15,970.00
1,000+	₹30.20	₹30,200.00

Quantity (min 1)

1 × ₹63.23

₹63.23

excl. GST

₹74.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TD1741

₹63.23 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 100kHz~150kHz
Function: Step-down type
Number of Outputs: 2
Features: Adjustable current limiting;Hiccup current limiting;External compensation;Light load efficient mode;Cable compensation;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 6V~40V
Switch tube (built-in/external): External
Output Voltage: 3V~28V
Output Current: 15A
Quiescent Current: 1.7mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.053 g

Overview

TD1741 is a Synchronous Buck Controller with two current sense pins suitable for many multi‐output applications. It is designed to allow for operating a wide supply voltage range from 6V to 40V. It has both high‐side and low‐side drivers allowing synchronous configuration using two external power‐NMOS. This IC can operate in both Constant Current (CC) and Constant Voltage (CV) modes. TD1741 operates as a Buck Controller providing a wide range of outputs at Constant Voltage (CV) from 6V to 40V and the output current as high as 10A or above. It has a Constant Current (CC) mode so that output current can be set externally and at an accuracy of ±4%. The current mode control and external compensation makes feedback control have good line and load regulation with flexible external design.

Applications

Car Charger
High‐Brightness Lighting
General‐Purpose DC/DC Controller

Key features

6V to 40V wide supply voltage range
High-side and low-side drivers for synchronous configuration
Operates in both Constant Current (CC) and Constant Voltage (CV) modes
Output voltage range: 3V to 28V; typical at 5V
Precision CC/CV Mode Control
Burst/PFM Mode for Increased Light Load Efficiency
2 outputs independent Constant Current setting
Hiccup mode when output voltage below 50% normal output voltage
Protection: NMOS peak current limit (accuracy: ~20%), Output short protection (reduce input current to less than 20mA RMS), Output FB OVP (225% VFB, only turn off High side MOS), Temperature shutdown (OTP)
Adjustable Output Cable Resistance Compensation
Duty: 0~98%
Toff_min = 100ns, Dead-time = 25~35ns
Switching Frequency: 125 ± 25kHz
Integrated MOSFET Drivers
QFN12L Package
