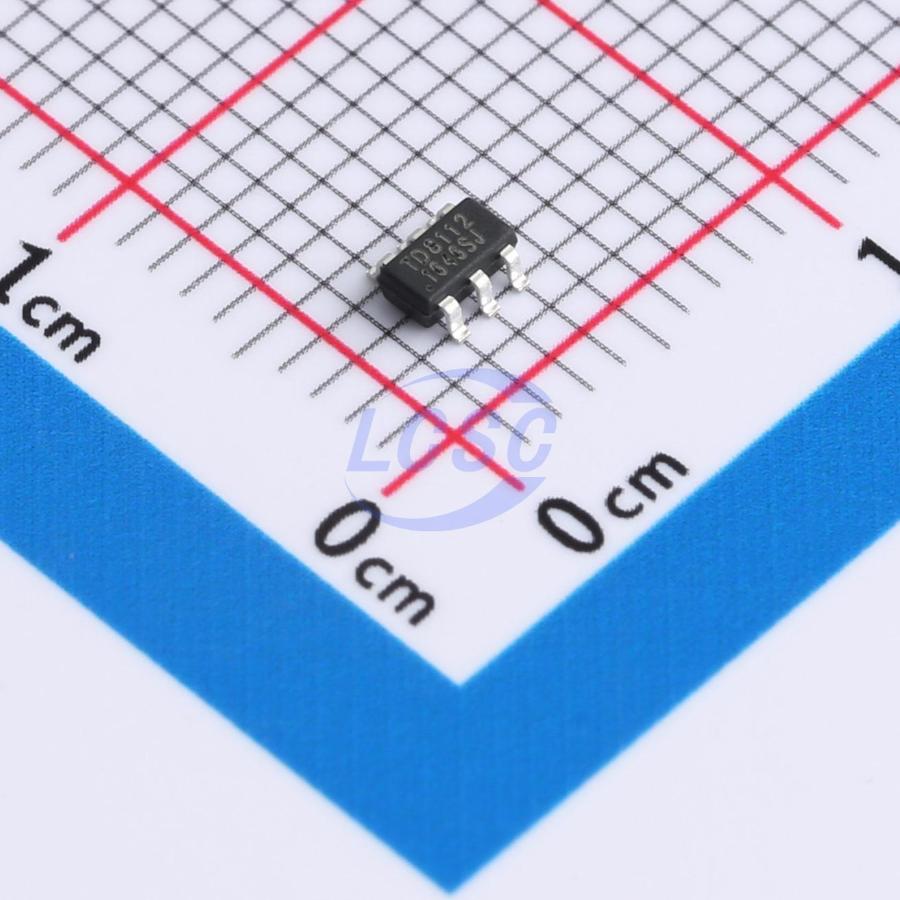

TD8112X
600kHz Step-down type Adjustable 2A SOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6LROHS CompliantActive
High Efficiency Synchronous Rectified Step-Down Converter
- Manufacturer
- JingYang
- Manufacturer part #
- TD8112X
- Store part #
- C5308000
- Package / case
- SOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,290 in stock
#C5308000
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.42 | ₹182.10 |
| 50+ | ₹28.78 | ₹1,439.00 |
| 150+ | ₹25.49 | ₹3,823.50 |
| 500+ | ₹21.41 | ₹10,705.00 |
| 3,000+ | ₹19.58 | ₹58,740.00 |
| 6,000+ | ₹18.50 | ₹1,11,000.00 |
5 × ₹36.42
₹182.10
excl. GST
₹214.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TD8112X
₹182.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 600kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
TD8112X efficiency 2A synchronous rectified step-down converter. The TD8112X operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The TD8112X requires a minimum number of readily available standard external components and is available in a 6-pin SOT23-6 compliant package.
Applications
- Distributed Power Systems
- Digital Set Top Boxes
- Flat Panel Television and Monitors
- Wireless and DSL Modems
- Notebook Computer
Key features
- High Efficiency: Up to 98%
- 600KHz Frequency Operation
- 2A Output Current
- No Schottky Diode Required
- 4.0V to 18V Input Voltage Range
- 0.6V Reference
- Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
- Integrated internal compensation
- Stable with Low ESR Ceramic Output Capacitors
- Over Current Protection with Hiccup-Mode
- Thermal Shutdown
- Inrush Current Limit and Soft Start
- Available in SOT23-6 Package
- -40°C to +85°C Temperature Range
