JingYangDatasheet (PDF)

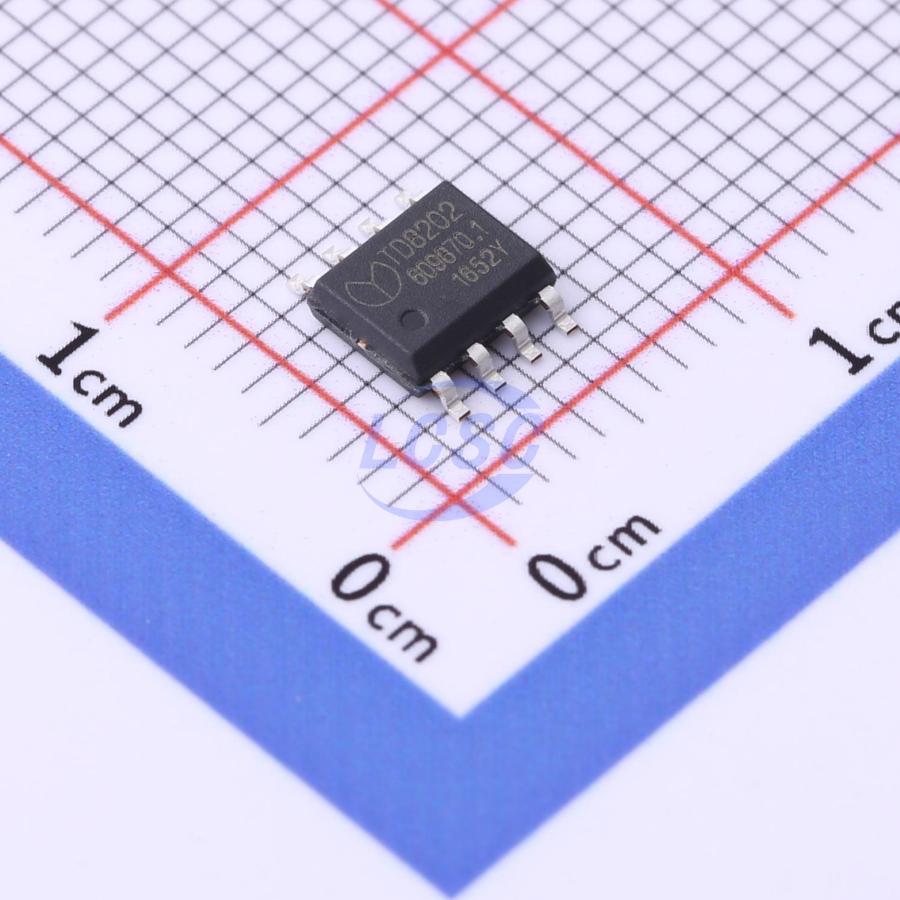

TD8202-S8AX
340kHz Step-down type Adjustable 2A 925mV~21.6V SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
2A 27V Synchronous Buck Converter
- Manufacturer
- JingYang
- Manufacturer part #
- TD8202-S8AX
- Store part #
- C3038117
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,060 in stock
#C3038117
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.66 | ₹44.66 |
| 10+ | ₹39.25 | ₹392.50 |
| 30+ | ₹36.86 | ₹1,105.80 |
| 100+ | ₹33.83 | ₹3,383.00 |
| 500+ | ₹32.53 | ₹16,265.00 |
| 1,000+ | ₹31.88 | ₹31,880.00 |
1 × ₹44.66
₹44.66
excl. GST
₹52.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TD8202-S8AX
₹44.66 for 1 + GST
Specifications
- Operating Temperature
- -20℃~+125℃@(TJ)
- Frequency - Switching
- 340kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Adjustable soft-start;Cycle-by-cycle current limiting;Overcurrent Protection;Output discharge;External compensation
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~27V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 925mV~21.6V
- Quiescent Current
- 1.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
TD8202 is a monolithic synchronous buck regulator. The device integrates 95 mΩ MOSFETS that provide 2A continuous load current over a wide operating input voltage of 4.5V to 27V. Current mode control provides fast transient response and cycle-by-cycle current limit. An adjustable soft-start prevents inrush current at turn on.
Applications
- Distributed Power Systems
- Networking Systems
- FPGA, DSP, ASIC Power Supplies
- Green Electronics/ Appliances
- Notebook Computers
Key features
- 2A Output Current
- Wide 4.5V to 27V Operating Input Range
- Integrated Power MOSFET switches
- Output Adjustable from 0.925V to 0.8Vin
- Up to 96% Efficiency
- Programmable Soft-Start
- Stable with Low ESR Ceramic Output Capacitors
- Fixed 340KHZ Frequency
- Cycle-by-Cycle Over Current Protection
- Short Circuit Protection
- Input Under Voltage Lockout
- Package: SOP-8L
