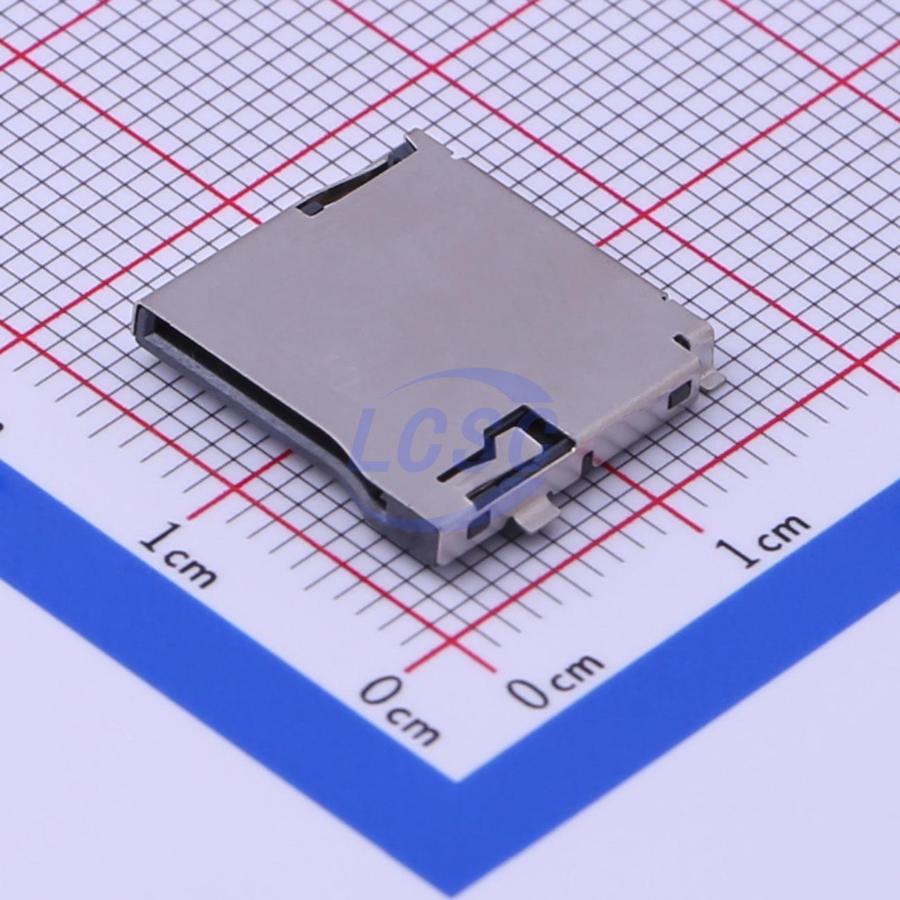

TF-01AMicro SD card (TF card) Connector and Ejector Push-Push Surface Mount
From
₹21.31
1,95,405 in stock
SHOU HANDatasheet (PDF)
TF PUSH
Micro SD card (TF card) Connector and Ejector Push-Push Surface Mount
PopularSMDROHS CompliantActive
CONN MICRO SD CARD (TF CARD) SMD
- Manufacturer
- SHOU HAN
- Manufacturer part #
- TF PUSH
- Store part #
- C393941
- Package / case
- SMD
- Category
- PC Card Sockets
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,87,370 in stock
#C393941
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.35 | ₹73.50 |
| 100+ | ₹5.98 | ₹598.00 |
| 300+ | ₹5.28 | ₹1,584.00 |
| 1,000+ | ₹4.57 | ₹4,570.00 |
| 5,000+ | ₹4.37 | ₹21,850.00 |
| 10,000+ | ₹4.22 | ₹42,200.00 |
10 × ₹7.35
₹73.50
excl. GST
₹86.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TF PUSH
₹73.50 for 10 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Card Connection Mode
- Push-Push
- Height Above Board
- 2mm
- Length
- 14.75mm
- Card Detection
- Yes
- Width
- 14.5mm
- Connector Type
- Connector and Ejector
- Card Type
- MicroSD Card (TF Card)
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1.052 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SH-TF-01A#C22383473SHOU HAN · SMD | SHOU HAN | SMD | 23,070 | ₹7.69 · 23,070 in stock | View |
 | TF-CARD H1.8 SY#C7529391SHOU HAN · SMD | SHOU HAN | SMD | 18,230 | ₹5.75 · 18,230 in stock | View |
 | MICRO SD 8P H1.85 NC#C53223920SHOU HAN · SMD | SHOU HAN | SMD | 110 | ₹51.35 · 110 in stock | View |
 | MICRO SD 8P H1.85 N0#C53223921SHOU HAN · SMD | SHOU HAN | SMD | 144 | ₹51.35 · 144 in stock | View |
 | MICRO SD4.0 10P H1.67 PUSH#C53223917SHOU HAN · SMD | SHOU HAN | SMD | 196 | ₹172.59 · 196 in stock | View |
Questions about TF PUSH
What is the primary function of the SHOU HAN TF PUSH connector?
The SHOU HAN TF PUSH is a T-Flash (TF) card connector designed for memory card applications. It is a connector manufactured by SHOU HAN Technology and is intended for mounting on a printed circuit board (PCB). Its mechanical, electrical, and environmental characteristics are defined in the product specification.
What are the physical mounting characteristics of this connector?
The connector's mechanical dimensions and recommended PCB layout are provided in the product drawing included with the specification. The drawing includes the recommended PCB footprint and mounting features for board installation. The specification refers users to the customer drawing for the detailed dimensions and PCB layout but does not explicitly classify the connector as surface-mount (SMT) or through-hole.
How does the card insertion mechanism work?
The connector is identified as TF PUSH, and the mechanical drawing labels the operating positions as "PUSH IN" and "PUSH OUT," indicating a push-operated card insertion and ejection mechanism. The specification does not provide additional narrative describing the internal latch or spring mechanism beyond the mechanical drawing.
What are the key electrical characteristics of this connector?
The connector has an initial contact resistance of 40 mΩ maximum, an insulation resistance of 1000 MΩ minimum, and a dielectric withstand rating of 500 VAC for 1 minute with a maximum leakage current of 1.0 mA. It is also rated for 5,000 mating/unmating cycles, with contact resistance not exceeding 100 mΩ after the durability test.
What environmental and assembly requirements does this connector meet?
The connector uses materials that comply with RoHS requirements. Recommended storage conditions are −25°C to +85°C with relative humidity of 80% or less, and products stored for more than six months should be re-qualified before use. The datasheet also provides wave soldering and reflow soldering profiles for automated assembly
