ROHMDatasheet (PDF)

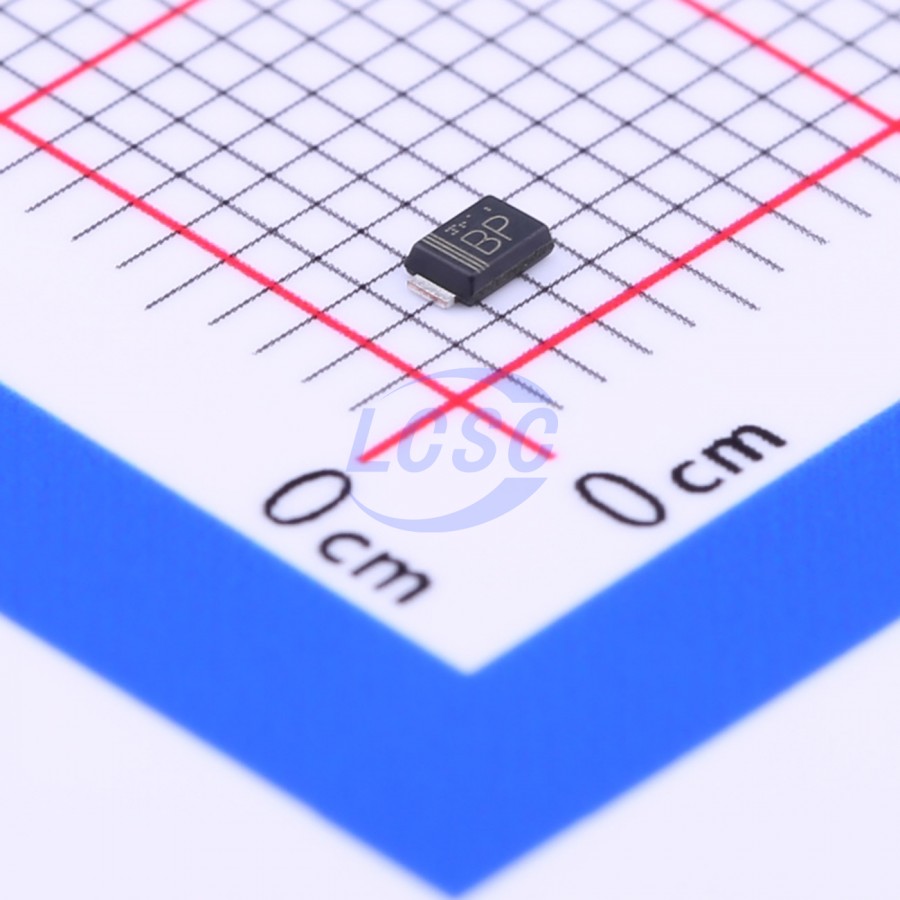

TFZVTR22B
Zener Diode Independent 22V 500mW Surface Mount SOD-323HE
SOD-323HEROHS3 CompliantActive
DIODE ZENER 22V 500mW SOD-323HE
- Manufacturer
- ROHM
- Manufacturer part #
- TFZVTR22B
- Store part #
- C253539
- Package / case
- SOD-323HE
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C253539
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.49 | ₹74.90 |
| 100+ | ₹5.83 | ₹583.00 |
| 300+ | ₹5.01 | ₹1,503.00 |
| 3,000+ | ₹4.39 | ₹13,170.00 |
| 6,000+ | ₹3.90 | ₹23,400.00 |
| 9,000+ | ₹3.65 | ₹32,850.00 |
10 × ₹7.49
₹74.90
excl. GST
₹88.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TFZVTR22B
₹74.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 200nA
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 20.64V~21.71V
- Zener Voltage(Nom)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | YFZVFHTR22B#C6363593ROHM · TUMD2M | ROHM | TUMD2M | 20 | ₹15.32 · 20 in stock | View |
| PZS5122BCH_R1_00001#C5830537PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹10.15 · 0 in stock | View | |
| PZS5122BCH-AU_R1_000A1#C5848478PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹11.59 · 0 in stock | View | |
| PZS5222BCH_R1_00001#C7329001PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹10.77 · 0 in stock | View | |
| YFZVFHTR24B#C6014723ROHM · TUMD2M | ROHM | TUMD2M | On request | ₹13.39 · 0 in stock | View | |
