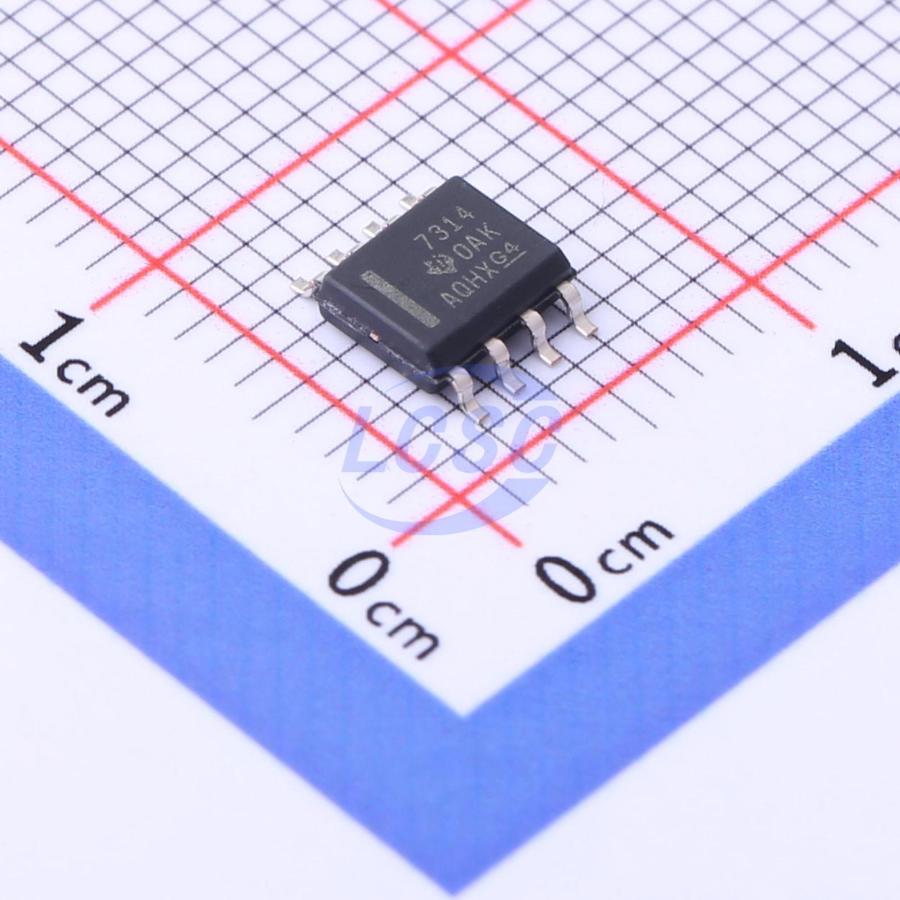

3-Channel SDTV Video Amplifier With 5th-Order Filters and 6-dB Gain
- Manufacturer
- TI
- Manufacturer part #
- THS7314DR
- Store part #
- C882751
- Package / case
- SOIC-8
- Category
- Video Amps and Modules
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,874 in stock
#C882751
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.49 | ₹90.49 |
| 10+ | ₹77.96 | ₹779.60 |
| 30+ | ₹68.90 | ₹2,067.00 |
| 100+ | ₹61.56 | ₹6,156.00 |
| 500+ | ₹59.18 | ₹29,590.00 |
| 1,000+ | ₹57.88 | ₹57,880.00 |
1 × ₹90.49
₹90.49
excl. GST
₹106.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
THS7314DR
₹90.49 for 1 + GST
Specifications
- Differential Phase
- 0.1deg
- Single Supply
- 3V~5V
- Differential Gain
- 0.1%
- Features
- Input buffer;Anti-aliasing / reconstruction filter;DC clamp / DC restore;ESD protection
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 16mA
- Number of Channels
- 3
- -3dB Bandwidth
- 8.5MHz
- Filter Order
- 5
- Quiescent Current
- 16mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
Fabricated using the Silicon-Germanium (SiGe) BiCom-III process, the THS7314 is a low power single-supply 3-V to 5-V 3-channel integrated video buffer. It incorporates a 5th-order Butterworth filter which is useful as a DAC reconstruction filter or an ADC anti-aliasing filter. The 8.5-MHz filter is a perfect choice for SDTV video which includes Composite (CVBS), S-Video, Y'U'V', G'B'R' (R'G'B'), and Y'Pb'Pr 480i/576i. As part of the THS7314 flexibility, the input can be configured for ac or dc coupled inputs. The 285-mV output level shift to allow for a full sync dynamic range at the output with 0-V input. The AC coupled modes include a transparent sync-tip clamp option for CVBS, Y', and G'B'R' signals with sync. AC-coupled biasing for C'/Pb'/Pr' channels is achieved by adding an external resistor to Vs+. The THS7314 is the perfect choice for all output buffer applications. Its rail-to-rail output stage with 6-dB gain allows for both ac and dc line driving. The ability to drive 2-lines, or 75-Ω loads, allows for maximum flexibility as a video line driver. The 16-mA total quiescent current at 3.3-V makes it an excellent choice for USB powered, portable, or other power sensitive video applications. The THS7314 is available in a small SOIC-8 package that is RoHS compliant.
Applications
- Set Top Box Output Video Buffering
- PVR/DVDR Output Buffering
- USB/Portable Low Power Video Buffering
Key features
- 3 SDTV Video Amplifiers for CVBS, S-Video, Y'Pb'Pr 480i/576i, Y'U'V', or G'B'R' (R'G'B')
- Integrated Low-Pass Filters
- 5th -Order 8.5-MHz (–3dB) Butterworth – –1dB Passband Bandwidth at 7-MHz 47dB Attenuation at 27-MHz
- Versatile Input Biasing
- DC-Coupled With 285-mV Output Shift AC-Coupled with Sync-Tip Clamp Allows AC-Coupled With DC-Biasing
- Built-in 6dB Gain (2V/V)
- 3-V to 5-V Single Supply Operation
- Rail-to-Rail Output: Output Swings Within 100-mV From the Rails Allowing AC or DC Output Coupling
- Able to Drive up to 2 Video Lines – 75 Ω
- Low 16-mA at 3.3-V Total Quiscent Current
- Low Differential Gain/Phase of 0.1%/0.1°
- SOIC-8 Package
