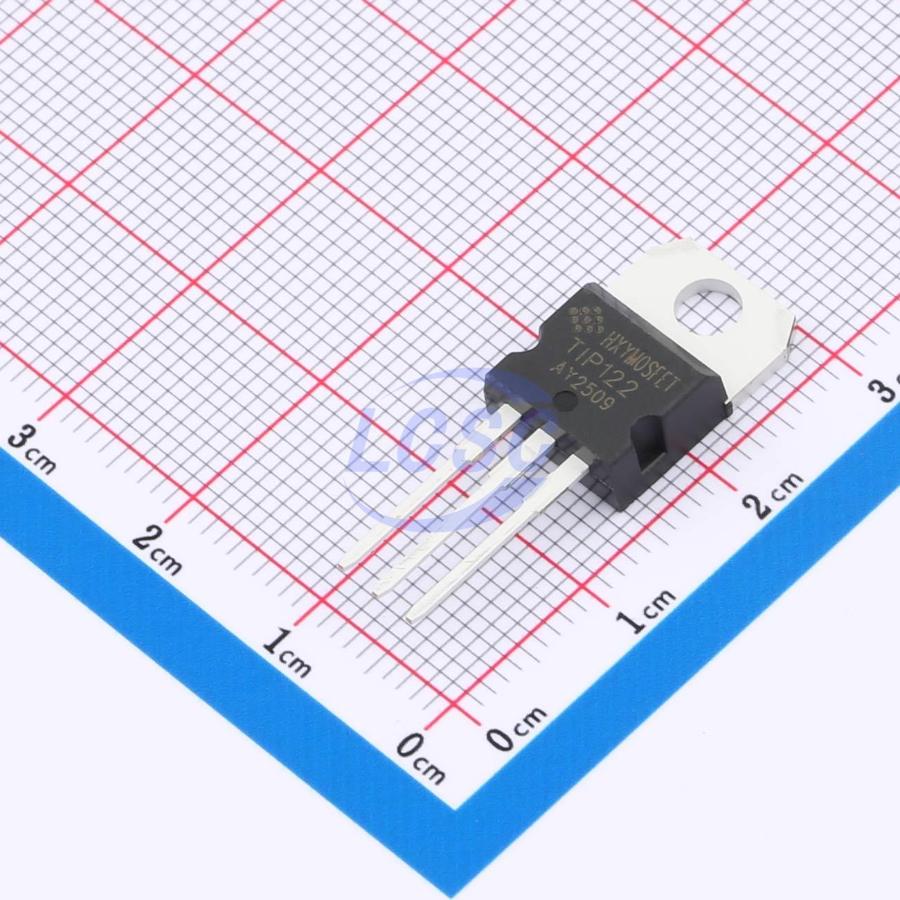

HXY MOSFET

TIP122

Bipolar (BJT) Transistor NPN 100V 5A 65W Through Hole TO-220S

TO-220SRoHSActive

TRANS NPN 100V 5A TO-220S

Manufacturer: HXY MOSFET
Manufacturer part #: TIP122
Store part #: C41381874
Package / case: TO-220S
Category: Single Bipolar Transistors
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

70 in stock

#C41381874

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹32.63	₹163.15
50+	₹26.13	₹1,306.50
150+	₹23.35	₹3,502.50
500+	₹19.88	₹9,940.00
2,500+	₹18.34	₹45,850.00
5,000+	₹17.40	₹87,000.00

Quantity (min 5, multiples of 5)

5 × ₹32.63

₹163.15

excl. GST

₹192.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

TIP122

₹163.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 200uA
Vbe On(VBE(on)): 2.5V
Collector - Emitter Voltage VCEO: 100V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 1000
Current - Collector(Ic): 5A
Pd - Power Dissipation: 65W
type: NPN
Vce Saturation(VCE(sat)): 2V;4V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.646 g

Overview

Applications

Fast electronic switching
Non-inductive resistor

Key features

Low collector-emitter saturation voltage
Complementary PNP transistor
