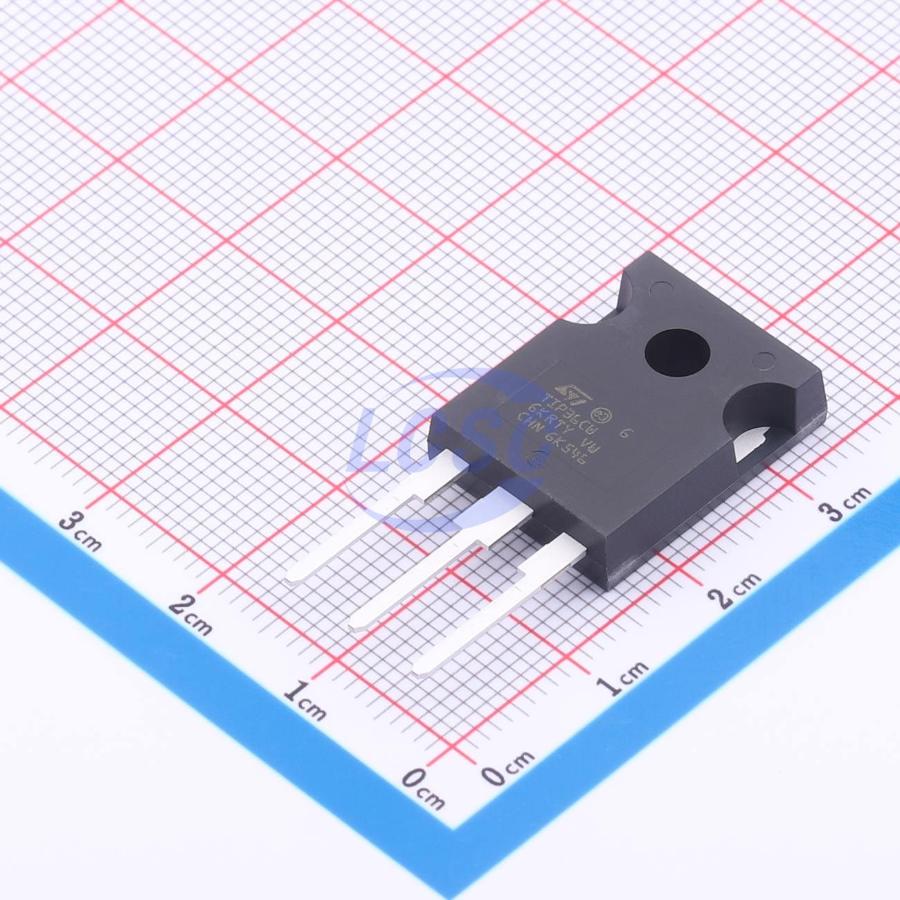

TIP36CW

100V 25A 1 PNP PNP TO-247-3 Single Bipolar Transistors RoHS

TO-247-3ROHS3 CompliantActive

Manufacturer: ST
Manufacturer part #: TIP36CW
Store part #: C2970296
Package / case: TO-247-3
Category: Single Bipolar Transistors
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

70 in stock

#C2970296

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹686.33	₹686.33
10+	₹589.00	₹5,890.00
30+	₹531.21	₹15,936.30
100+	₹472.55	₹47,255.00
500+	₹445.61	₹2,22,805.00
1,000+	₹433.44	₹4,33,440.00
2,000+	₹428.02	₹8,56,040.00

Quantity (min 1)

1 × ₹686.33

₹686.33

excl. GST

₹809.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 30 per tube

TIP36CW

₹686.33 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 1mA
Transition frequency(fT): 3MHz
Collector - Emitter Voltage VCEO: 100V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 25;10
Pd - Power Dissipation: 125W
Current - Collector(Ic): 25A
Configuration: Standalone
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 4V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 30 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 6.784 g
