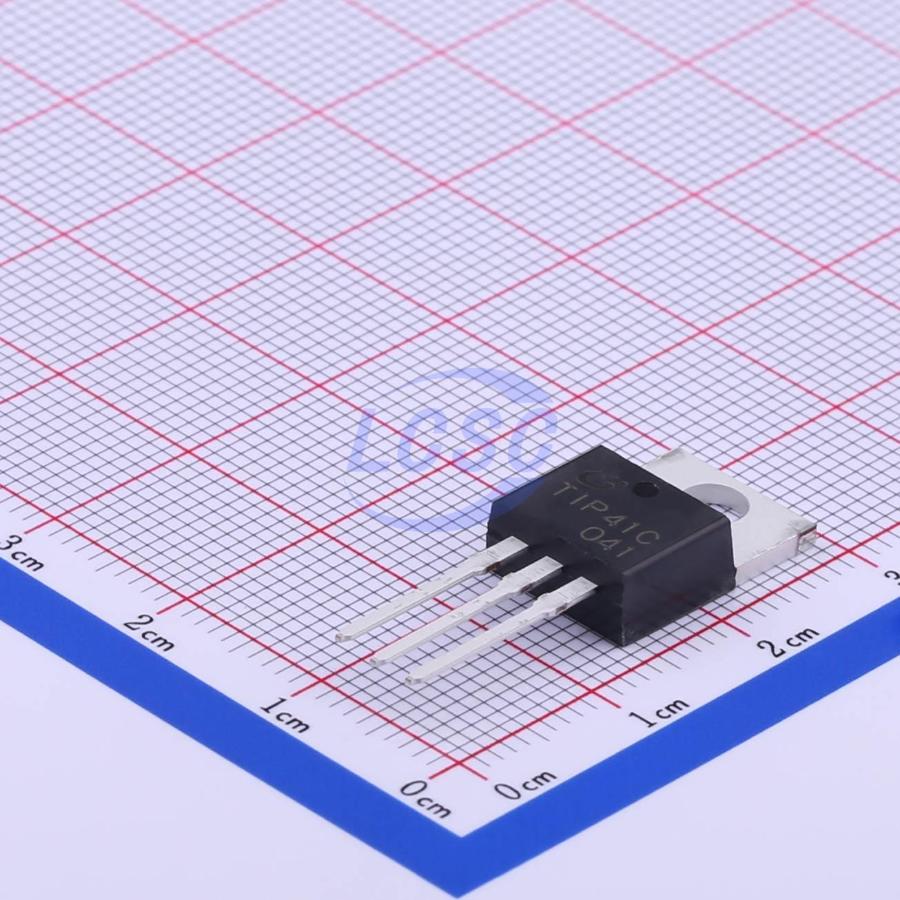

JSCJ

TIP41C

Bipolar (BJT) Transistor NPN 100V 6A 3MHz 2W Through Hole TO-220-3L

TO-220-3LROHS CompliantActive

TRANS NPN 100V 6A TO-220-3L

Manufacturer: JSCJ
Manufacturer part #: TIP41C
Store part #: C92310
Package / case: TO-220-3L
Category: Single Bipolar Transistors
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,590 in stock

#C92310

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹48.46	₹242.30
50+	₹38.43	₹1,921.50
150+	₹34.13	₹5,119.50
500+	₹28.76	₹14,380.00
2,500+	₹26.37	₹65,925.00
5,000+	₹24.94	₹1,24,700.00

Quantity (min 5, multiples of 5)

5 × ₹48.46

₹242.30

excl. GST

₹285.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

TIP41C

₹242.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 400uA
Operating Temperature: -55℃~+150℃
Transition frequency(fT): 3MHz
Collector - Emitter Voltage VCEO: 100V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 15
Current - Collector(Ic): 6A
Pd - Power Dissipation: 2W
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 1.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.66 g
