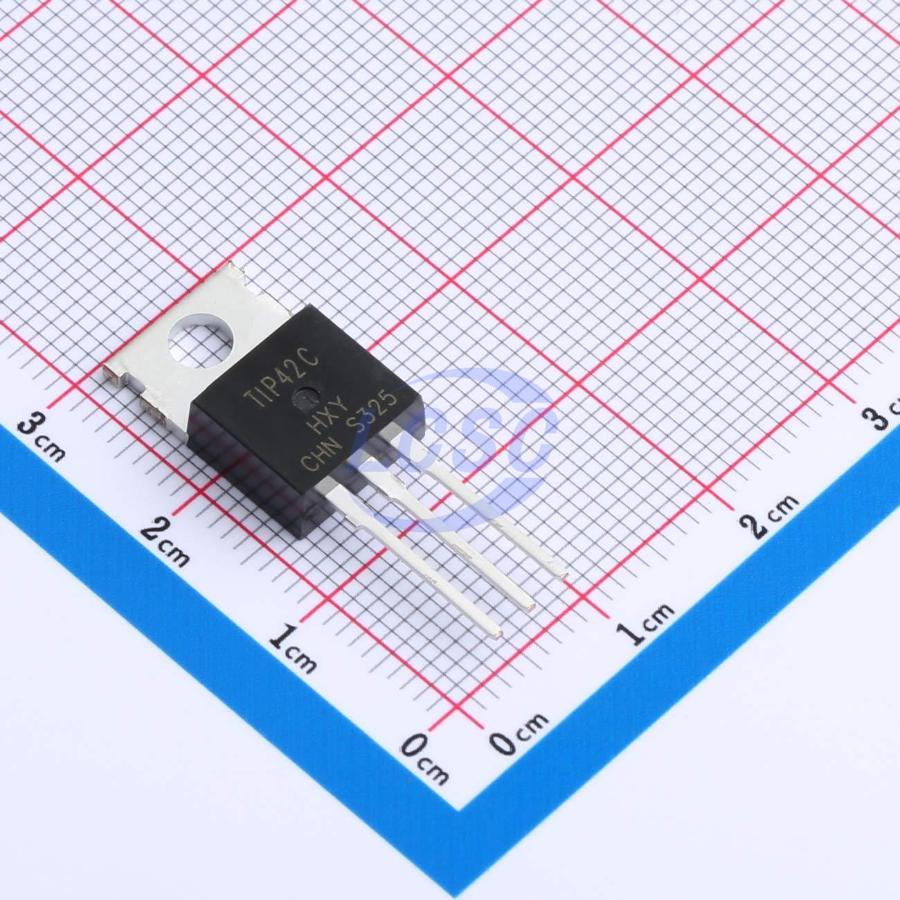

HXY MOSFET

TIP42C-HXY

Bipolar (BJT) Transistor PNP 100V 3A 3MHz 2W Through Hole TO-220

TO-220RoHSActive

TRANS PNP 100V 3A TO-220

Manufacturer: HXY MOSFET
Manufacturer part #: TIP42C-HXY
Store part #: C7469126
Package / case: TO-220
Category: Single Bipolar Transistors
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

325 in stock

#C7469126

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹31.38	₹156.90
50+	₹23.23	₹1,161.50
150+	₹20.51	₹3,076.50
500+	₹17.11	₹8,555.00
2,500+	₹15.60	₹39,000.00
5,000+	₹14.69	₹73,450.00

Quantity (min 5, multiples of 5)

5 × ₹31.38

₹156.90

excl. GST

₹185.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

TIP42C-HXY

₹156.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 200uA
Operating Temperature: -55℃~+150℃
Transition frequency(fT): 3MHz
Collector - Emitter Voltage VCEO: 100V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 75
Pd - Power Dissipation: 2W
Current - Collector(Ic): 3A
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 1.2V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.69 g
