VBsemi ElecDatasheet (PDF)

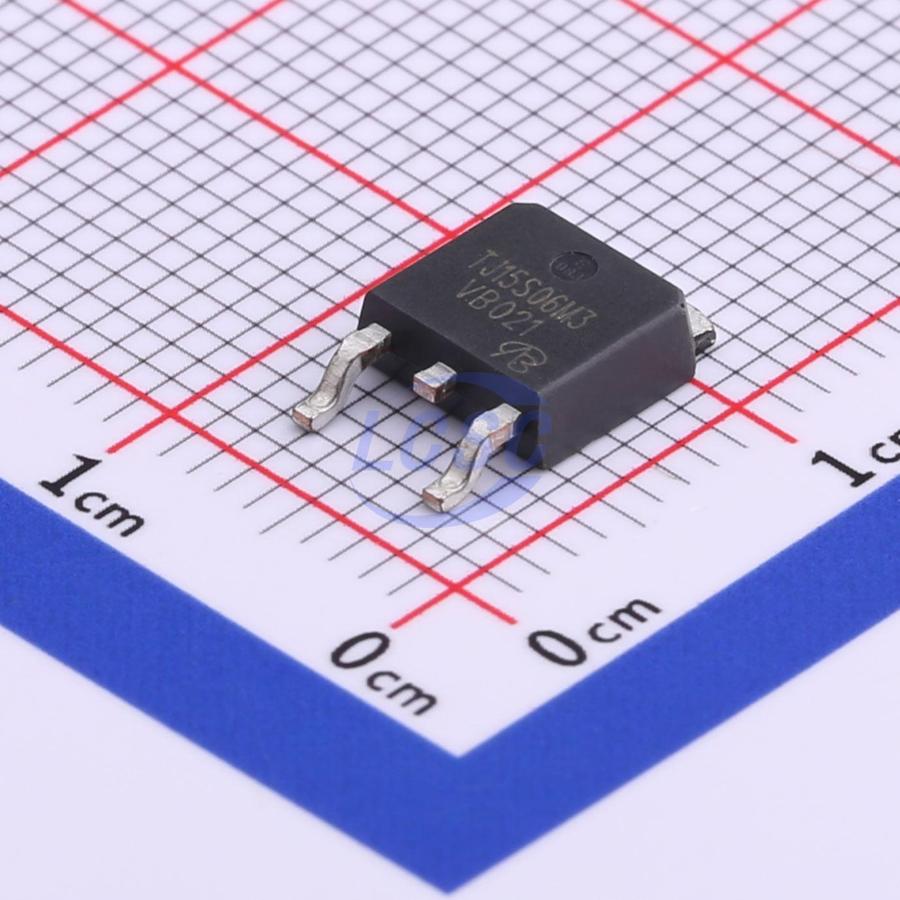

TJ15S06M3L-VB
P-Channel 60V 35A Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 60V 35A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- TJ15S06M3L-VB
- Store part #
- C879038
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C879038
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.32 | ₹89.32 |
| 10+ | ₹72.58 | ₹725.80 |
| 30+ | ₹64.32 | ₹1,929.60 |
| 100+ | ₹56.07 | ₹5,607.00 |
| 500+ | ₹47.38 | ₹23,690.00 |
| 1,000+ | ₹44.77 | ₹44,770.00 |
1 × ₹89.32
₹89.32
excl. GST
₹105.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TJ15S06M3L-VB
₹89.32 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 130pF
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 1.9nF
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 46mΩ@10V;58mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 26nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
Applications
- High-side switch for full-bridge converters
- DC/DC converter for LCD monitors
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% single-pulse avalanche energy (UIS) tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR9343-VB#C20417607VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 49 | ₹86.92 · 49 in stock | View |
 | RSD140P06-VB#C20755171VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹85.40 · 1 in stock | View |
 | IRFR5305TRPBF-VB#C558165VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 2,348 | ₹98.84 · 2,348 in stock | View |
 | SPD30P06PG-VB#C558281VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 46 | ₹86.13 · 46 in stock | View |
 | IRFR5505TRPBF-VB#C5878815VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 665 | ₹62.84 · 665 in stock | View |
