HTCDatasheet (PDF)

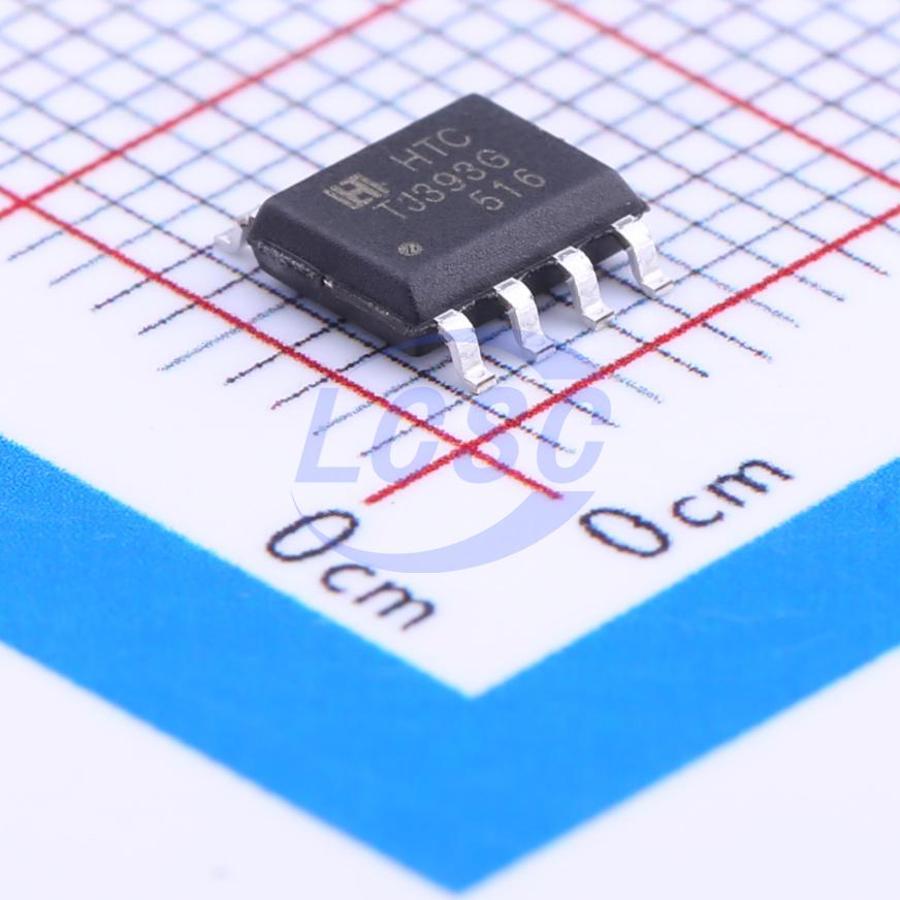

TJ393GD
2 800uA 2mV SOP-8 Comparators RoHS
SOP-8ROHS CompliantActive
Dual Differential Comparators
- Manufacturer
- HTC
- Manufacturer part #
- TJ393GD
- Store part #
- C165604
- Package / case
- SOP-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,505 in stock
#C165604
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.61 | ₹63.05 |
| 50+ | ₹10.09 | ₹504.50 |
| 150+ | ₹8.82 | ₹1,323.00 |
| 500+ | ₹7.88 | ₹3,940.00 |
| 2,500+ | ₹7.13 | ₹17,825.00 |
| 5,000+ | ₹6.74 | ₹33,700.00 |
5 × ₹12.61
₹63.05
excl. GST
₹74.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TJ393GD
₹63.05 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 25nA
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 800uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.192 g
Overview
The TJ393 consists of two independent voltage comparators. These were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The outputs can be connected to other open - collector outputs to achieve wired - AND relationships.
Key features
- Wide supply voltage range …2V to 36V or ±1V to ±18V
- Low supply current drain independent of the supply voltage.
- Low input biasing current
- Low input offset current
- Low input offset voltage
- Input common - mode voltage range includes GND
- Differential input voltage range equal to the power supply voltage
- Low output saturation voltage
- Output voltage compatible with TTL, MOS and CMOS logic
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM2903MX/NOPB#C464814TI · SOIC-8 | TI | SOIC-8 | 7,214 | ₹55.46 · 7,214 in stock | View |
 | LM393M/NOPB#C352858TI · SOIC-8 | TI | SOIC-8 | 4,068 | ₹73.92 · 4,068 in stock | View |
 | LM2903QS-13#C5378695DIODES · SOIC-8 | DIODES | SOIC-8 | 10 | ₹22.84 · 10 in stock | View |
 | LM393DR2G(XBLW)#C22387042XBLW · SOP-8 | XBLW | SOP-8 | 5 | ₹17.68 · 5 in stock | View |
 | LM393MX/NOPB#C352859TI · SOIC-8 | TI | SOIC-8 | 2,726 | ₹71.19 · 2,726 in stock | View |
