VBsemi ElecDatasheet (PDF)

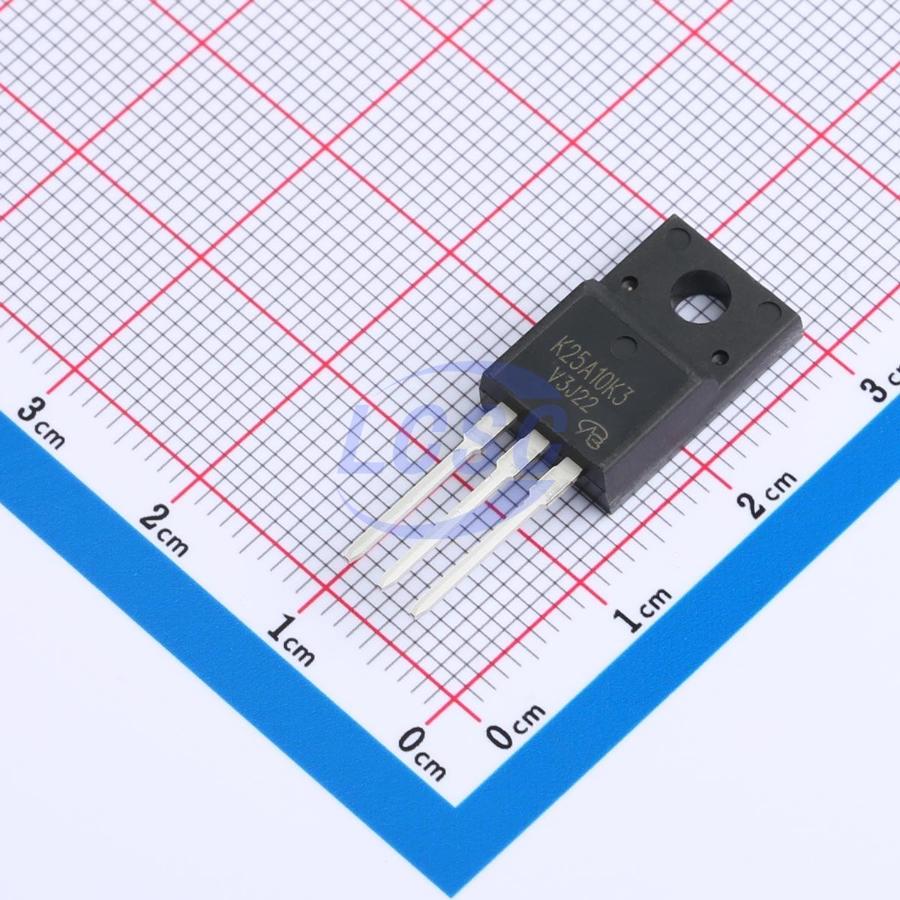

TK25A10K3-VB
N-Channel 100V 50A 360W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 100V 50A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- TK25A10K3-VB
- Store part #
- C19188143
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C19188143
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.99 | ₹99.99 |
| 10+ | ₹81.30 | ₹813.00 |
| 50+ | ₹71.84 | ₹3,592.00 |
| 100+ | ₹62.60 | ₹6,260.00 |
| 500+ | ₹57.14 | ₹28,570.00 |
| 1,000+ | ₹54.20 | ₹54,200.00 |
1 × ₹99.99
₹99.99
excl. GST
₹117.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
TK25A10K3-VB
₹99.99 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 480pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 5.1nF
- Pd - Power Dissipation
- 360W
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 34mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 90nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.515 g
Overview
Applications
- Isolated DC/DC Converter
Key features
- Trench power MOSFET
- Junction temperature 175°C
- Low thermal resistance package
- 100% gate resistance (Rg) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLI540GPBF-VB#C18794939VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 4 | ₹101.16 · 4 in stock | View |
 | TF2916L-VB#C19188150VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 18 | ₹101.16 · 18 in stock | View |
 | FDPF3860TYDTU-VB#C20626299VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 7 | ₹96.00 · 7 in stock | View |
 | 2SK1817-M-VB#C20755444VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹96.00 · 20 in stock | View |
 | AOTF4126-VB#C22389074VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹107.98 · 10 in stock | View |
Same category
