Wuxi I-core Elec

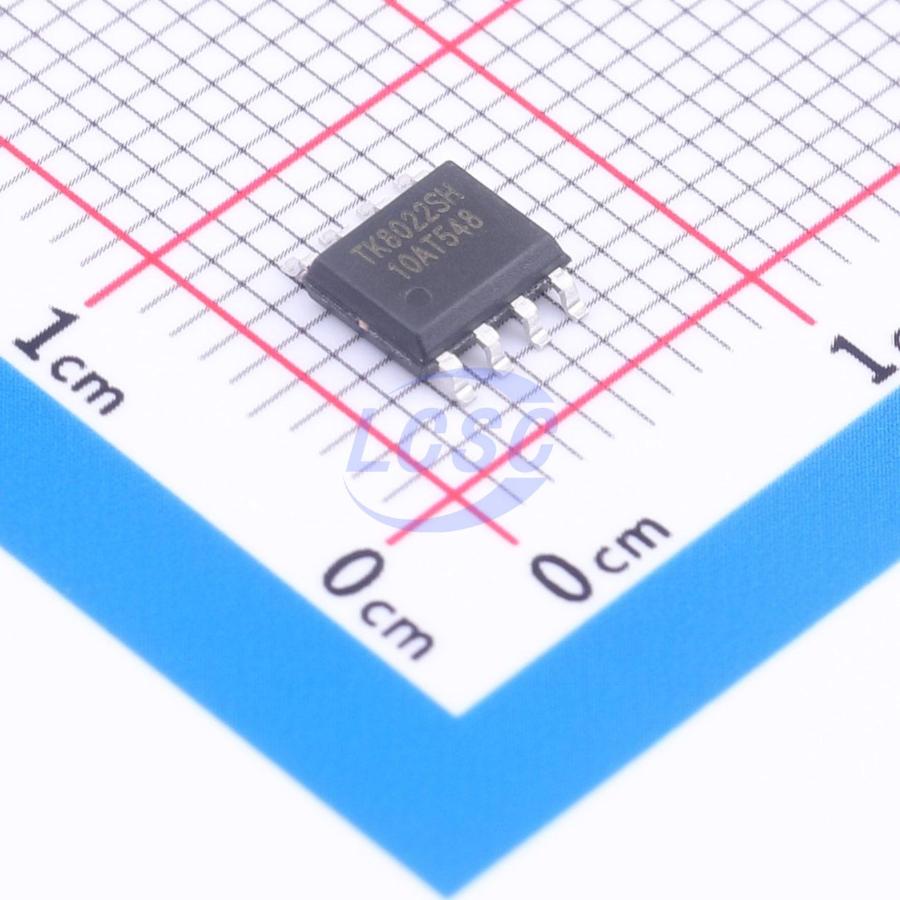

TK8022SHSA8.TR

Capacitive Touch No 2 SOP-8 Sensor, Capacitive Touch

SOP-8RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: TK8022SHSA8.TR
Store part #: C52260241
Package / case: SOP-8
Category: Sensor, Capacitive Touch
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,750 in stock

#C52260241

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹20.40	₹102.00
50+	₹16.11	₹805.50
150+	₹14.28	₹2,142.00
500+	₹11.99	₹5,995.00
2,500+	₹10.97	₹27,425.00
4,000+	₹10.36	₹41,440.00

Quantity (min 5, multiples of 5)

5 × ₹20.40

₹102.00

excl. GST

₹120.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TK8022SHSA8.TR

₹102.00 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Capacitive Touch
Whether the Lock: No
Number of Channels: 2
Voltage - Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.243 g

Overview

TK8022 is a dual-channel touch key IC featuring high sensitivity, strong anti-interference capability, waterproof and dustproof performance, and high reliability, making it a versatile replacement for traditional mechanical buttons.

Applications

Home appliances
Consumer electronics
Industrial control

Key features

Dual-channel touch key detection
Operating voltage: 2.1V~5.5V (LVR=1.9V)
Two operating modes: normal mode and low-power mode; enters low-power mode after 16 seconds of no key operation
Sensitivity adjustable via CLD capacitor (1nF~22nF)
Output mode selectable via SEL2 pin: active-high, active-low, or open-drain
Package: SOP8
