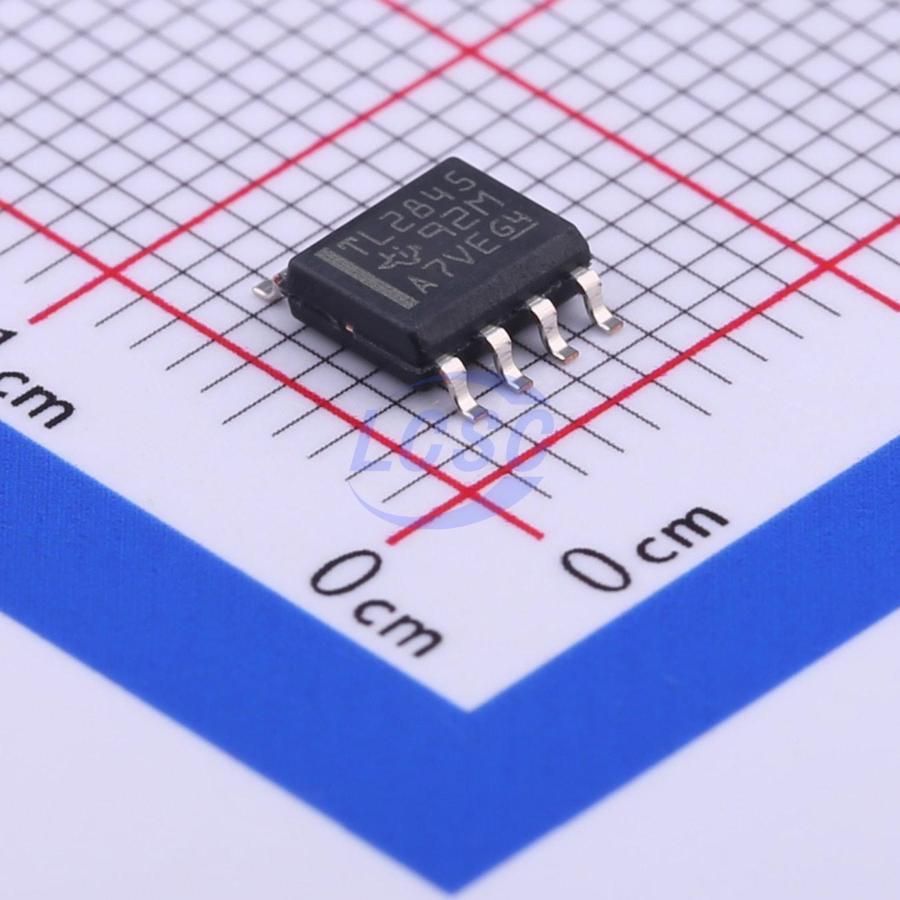

TL2845DR-8
200mA 30V SOIC-8 DC DC Switching Controllers RoHS
Current-Mode PWM Controllers
- Manufacturer
- TI
- Manufacturer part #
- TL2845DR-8
- Store part #
- C408970
- Package / case
- SOIC-8
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,749 in stock
#C408970
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.61 | ₹53.61 |
| 10+ | ₹42.11 | ₹421.10 |
| 30+ | ₹36.46 | ₹1,093.80 |
| 100+ | ₹31.47 | ₹3,147.00 |
| 500+ | ₹29.95 | ₹14,975.00 |
| 1,000+ | ₹29.30 | ₹29,300.00 |
1 × ₹53.61
₹53.61
excl. GST
₹63.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL2845DR-8
₹53.61 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 200mA
- Features
- Slope compensation;Under-voltage lockout
- Duty Cycle(Max)
- 48%
- Frequency - Switching
- 100kHz~500kHz
- Operating Voltage
- 30V
- Output Voltage
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.176 g
Overview
The TL284x and TL384x series of control integrated circuits provide the features that are necessary to implement off-line or DC-to-DC fixed-frequency current-mode control schemes, with a minimum number of external components. Some of the internally implemented circuits are an undervoltage lockout (UVLO), featuring a start-up current of less than 1 mA, and a precision reference trimmed for accuracy at the error amplifier input. Other internal circuits include logic to ensure latched operation, a pulse-width modulation (PWM) comparator (that also provides current-limit control), and a totem-pole output stage designed to source or sink high-peak current. The output stage, suitable for driving Nchannel MOSFETs, is low when it is in the off state.
Applications
- Switching regulators of any polarity
- Transformer-coupled DC/DC convertors
Key features
- Optimized for Off-Line and DC-to-DC Converters
- Low Start-Up Current (<1 mA)
- Automatic Feed-forward compensation
- Pulse-by-Pulse Current Limiting
- Enhanced Load-Response Characteristics
- Undervoltage Lockout With Hysteresis
- Double-Pulse Suppression
- High-Current Totem-Pole Output
- Internally Trimmed Bandgap Reference
- 500-kHz Operation
- Error Amplifier With Low Output Resistance
- Designed to be Interchangeable with UC2842 and UC3842 Series
