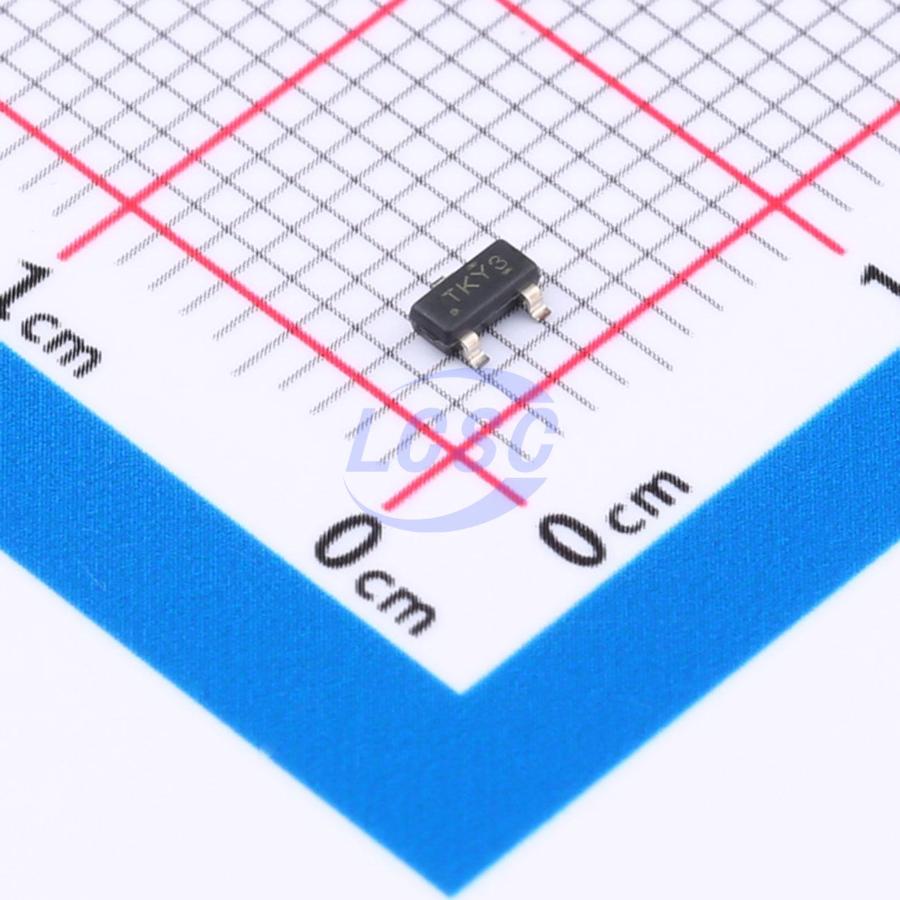

TL4050C50QDBZR

The TL4050 series of shunt voltage references are versatile easy-to-use references suitable for a wide array of applications. The two-terminal fixed-output device requires no external capacitors for operation and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. The TL4050 is offered in three initial tolerances, ranging from 0.1% (max) for the A grade to 0.5% (max) for the C grade. Thus, a great deal of flexibility is offered to designers in choosing the best cost-to-performance ratio for their applications. Packaged in the space-saving SOT-23-3 and SC-70 packages and requiring a minimum current of 45 μA (typ), the TL4050 also is ideal for portable applications. The TL4050xI is characterized for operation over an ambient temperature range of -40°C to 85°C. The TL4050xQ is characterized for operation over an ambient temperature range of -40°C to 125°C.

Applications

• Data-Acquisition Systems
• Power Supplies and Power-Supply Monitors
• Instrumentation and Test Equipment
• Process Controls
• Precision Audio
• Automotive Electronics
• Energy Management
• Battery-Powered Equipment

Key features

• Fixed Output Voltages of 2.5 V, 4.096 V, 5 V, and 10 V
• Tight Output Tolerances and Low Temperature Coefficient:
• Max 0.1%, 50 ppm/°C - A Grade
• Max 0.2%, 50 ppm/°C - B Grade
• Max 0.5%, 50 ppm/°C - C Grade
• Low Output Noise: 41 μV RMS Typ
• Wide Operating Current Range: 60 μA Typ to 15 mA
• Stable With All Capacitive Loads; No Output Capacitor Required
• Available in Extended Temperature Range: -40°C to 125°C
